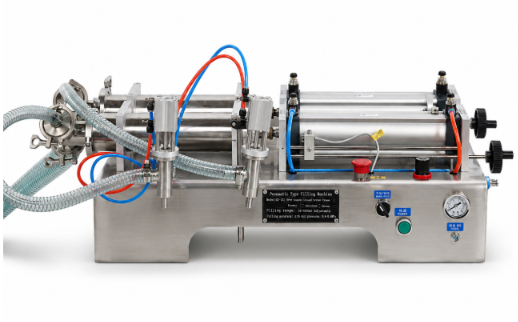

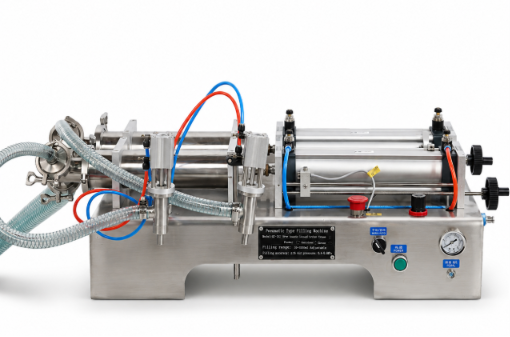

UNIVERSAL SEAL 50ml to 500ml Pneumatic Single Nozzle Liquid Filling Machine | Automatic Piston Liquid Filler for Oil, Paste & Juice

In Stock
₹26,99930.77 percent off

MRP: ₹38,999

Exclusive GST

Estimated Delivery By: Jul 31 - Aug 2
Get Extra ₹59 OFF on Prepaid Orders
₹26,999(Exclusive GST)
MRP: ₹38,999 (30.77% OFF)
QTY :
1

Product Overview

• 50ml to 500ml pneumatic single head liquid filler.

• 600 to 1500 bottles per hour efficiency.

• Stainless steel body net weight 19kg.

About This Item

Streamline your liquid bottling operations and achieve high accuracy with the UNIVERSAL SEAL 50ml to 500ml Pneumatic Single Head Liquid Filling Machine. Built for free-flowing liquids such as water, syrups, medicinal liquids, rose water, and beverages, this compact semi-automatic filler features a durable stainless steel chassis paired with a piston and hopper constructed from food-grade 304 stainless steel and PTFE (Teflon) for maximum corrosion resistance and hygienic processing.

Operating on 110V-220V power combined with an external air supply (requiring 0.6 MPa pressure and 400 LPM air supply), the machine delivers high filling accuracy with an efficient throughput of 600 to 1500 bottles per hour. Equipped with an anti-leakage dispensing nozzle, volume adjustment knob, and a convenient foot pedal actuator, this 19.0 kg compact machine is an essential asset for pharmaceutical, food and beverage, cosmetic, and laboratory packaging lines.

Product Information

Specifications :
Brand Name
UNIVERSAL SEAL
Machinery Device Model
PLF-500 Single Nozzle Pneumatic Series
Automation Operation Grade
Automatic / Semi-Automatic Pneumatic
Chassis Outer Frame Material
Premium Grade Stainless Steel SS
Product Contact Parts Material
Food-Grade Stainless Steel 304 Grade
Min and Max Filling Capacity
50 ml to 500 ml Piston Displacement
Drive Mechanism Type
Compressed Air Pneumatic Cylinder Drive
Dispensing Nozzle Type
Single Head Anti-Drip Shut-Off Nozzle
Filling Accuracy Tolerance
±1% High Precision Volumetric Fill
Operating Air Pressure Required
0.4 to 0.6 MPa Compressed Air
Power Supply Voltage
220V AC / 50Hz Standard Input
Machine Package Net Weight
28.0 Kilograms Approx Weight
