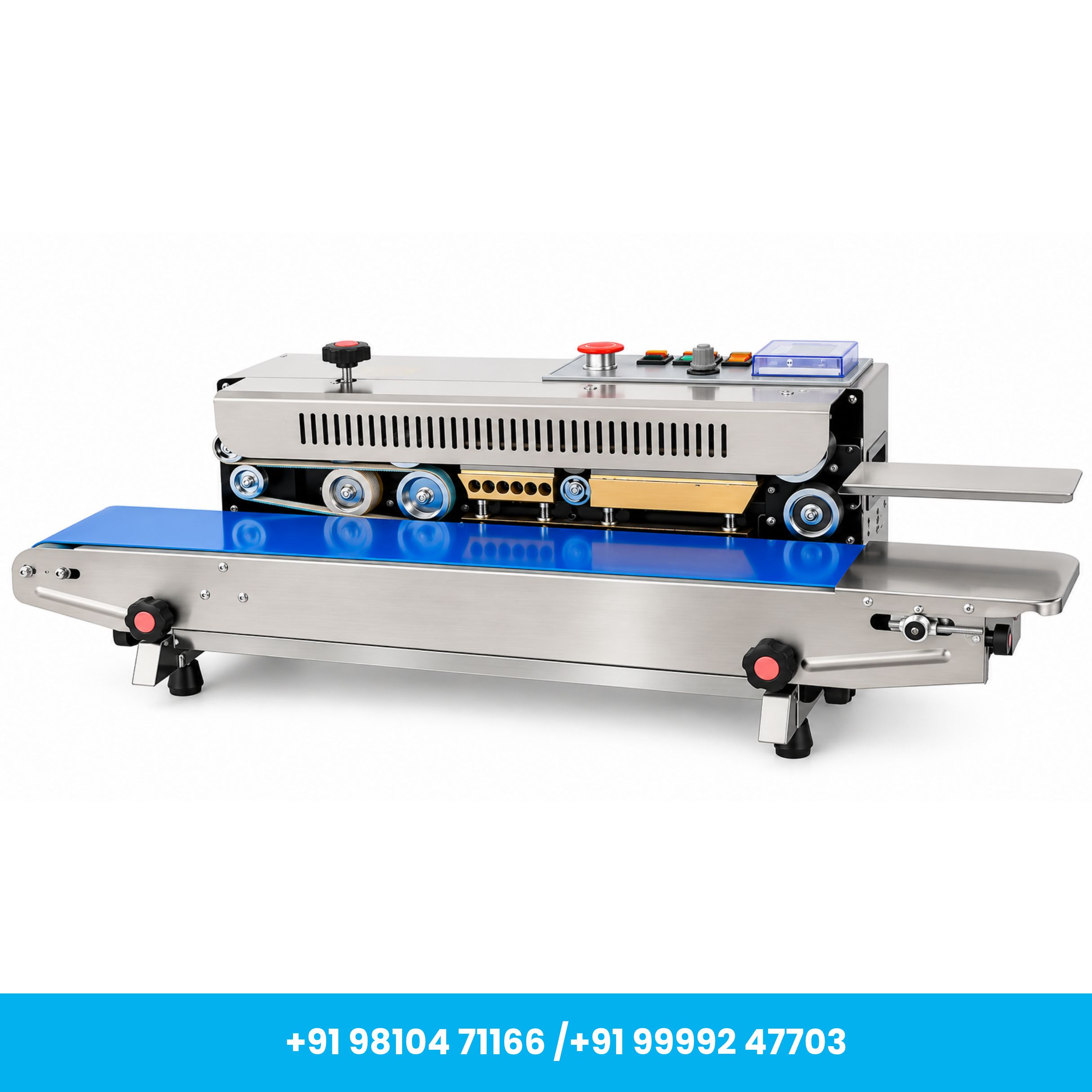

FRB-770 SS Horizontal Hualian Make Continuous Band Sealing Machine

Product Description

The FRB-770 SS Horizontal Hualian Make Continuous Band Sealing Machine is a heavy-duty packaging solution designed for efficient, continuous and reliable sealing of heat-sealable pouches. Featuring a full stainless steel body, this machine is suitable for food processing, pharmaceutical packaging, chemical products and various industrial packaging applications.

Manufactured by Hualian, the FRB-770 is equipped with a 4-wire motor system, adjustable PCB card, die-cast gears and metal cooling fan to support consistent sealing performance during regular packaging operations.

The adjustable PCB system allows motor power regulation, helping maintain smooth conveyor movement under varying operating conditions. Its durable die-cast gears provide mechanical strength, while the metal cooling fan assists in cooling the sealed pouch area.

Designed for use with a 770 mm Teflon belt, this horizontal band sealer is suitable for sealing compatible laminated pouches, aluminum foil pouches, plastic packaging bags and other heat-sealable materials.

The machine is available with a digital or analog control panel, depending on the supplied variant, making it a practical packaging solution for businesses requiring efficient pouch sealing.

Key Features

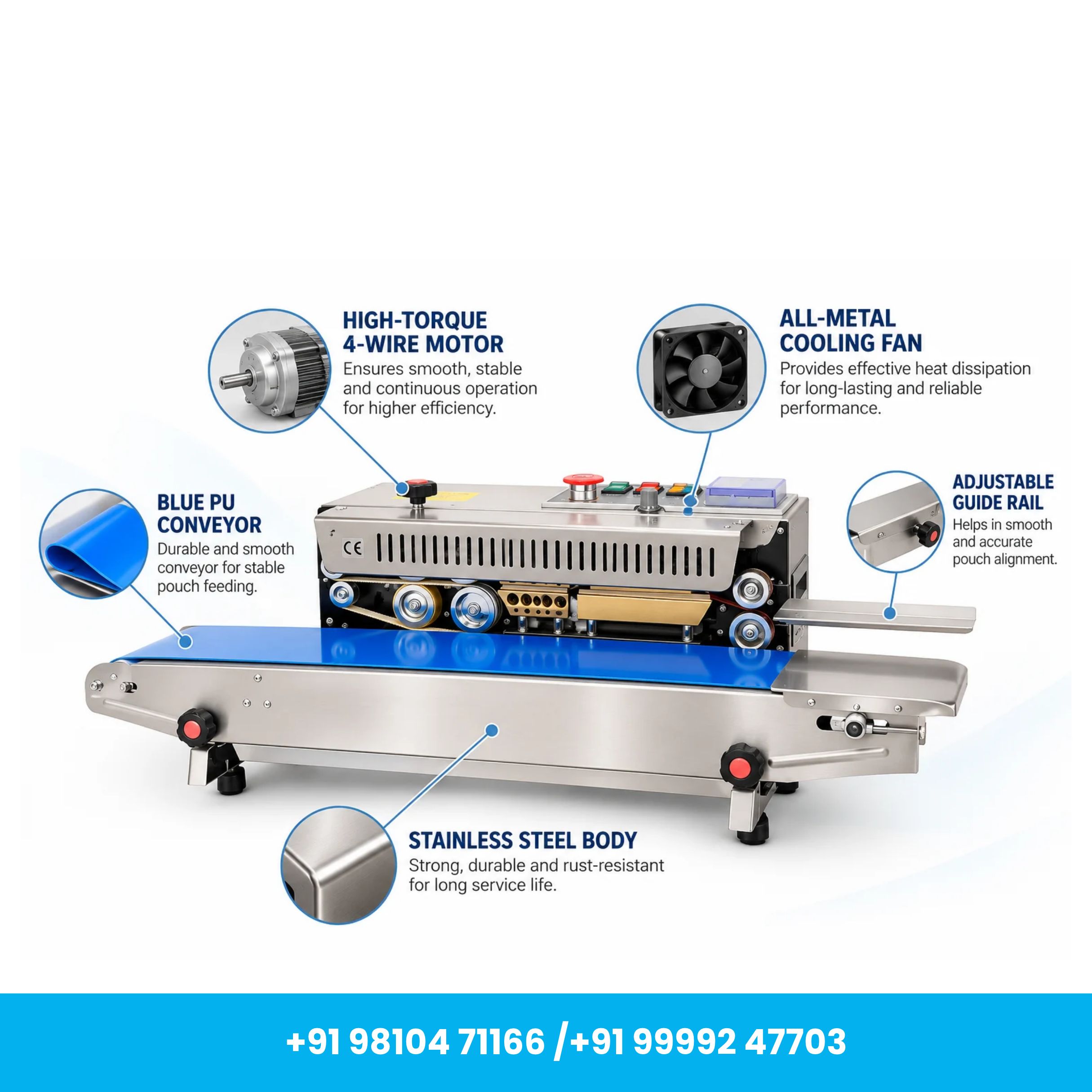

1. Full Stainless Steel Construction

Built with a durable stainless steel body that offers corrosion resistance, easy cleaning and long-lasting performance. Suitable for packaging environments where cleanliness and equipment durability are important.

2. Advanced 4-Wire Motor System

Features a 4-wire motor configuration designed to support stable conveyor operation and consistent pouch movement during continuous sealing.

3. Adjustable PCB Technology

Equipped with an adjustable PCB card that allows motor power regulation and compensation when required, supporting smooth machine operation.

4. Heavy-Duty Die-Cast Gears

The die-cast gear mechanism provides mechanical strength and supports reliable power transmission during regular packaging operations.

5. Metal Cooling Fan

Features a metal cooling fan that assists in cooling the sealing area, helping maintain a neat and consistent seal finish.

6. 770 mm Teflon Belt Compatibility

Designed to operate with a 770 mm Teflon sealing belt, which supports continuous movement and sealing of compatible pouch materials.

7. Digital or Analog Control Panel

Available with digital or analog controls, depending on the model variant, for convenient operation and adjustment of sealing parameters.

8. Continuous Horizontal Sealing

The horizontal conveyor arrangement enables convenient pouch feeding and continuous sealing, making it suitable for repetitive packaging tasks.

9. Versatile Packaging Applications

Suitable for sealing compatible pouches containing snacks, dry fruits, spices, grains, powders, hardware products and various industrial materials.

Applications

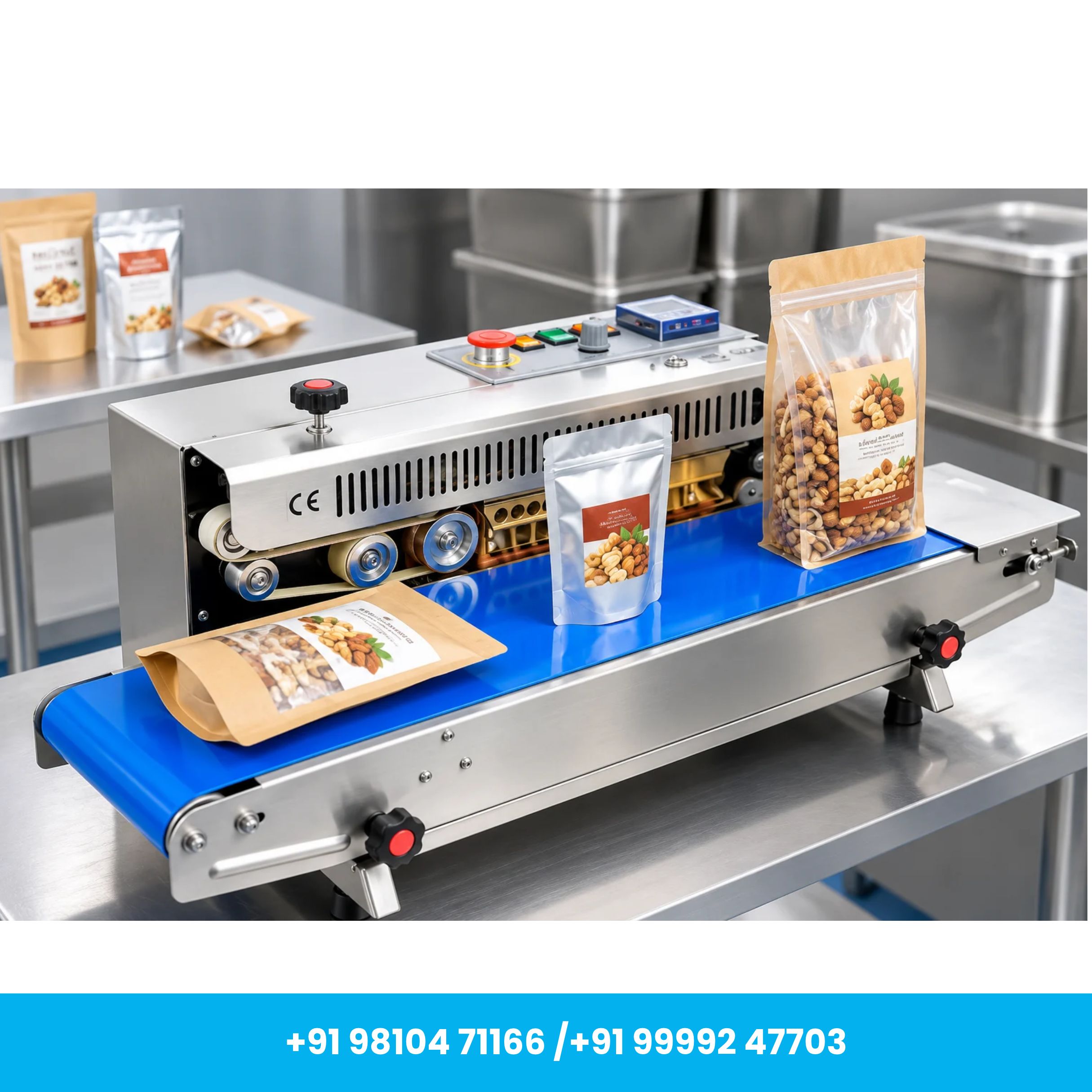

Food Packaging Industry

Suitable for sealing compatible pouches containing:

• Snacks and namkeen
• Dry fruits and nuts
• Spices and masala
• Rice, pulses and grains
• Tea, coffee and dry food products

Pharmaceutical Packaging

Can be used for sealing compatible packaging materials for medical accessories, healthcare products and other non-sterile packaging applications, subject to applicable packaging requirements.

Chemical Industry

Suitable for sealing compatible pouches containing dry chemicals, detergent powders and other industrial products, subject to material compatibility and safe handling procedures.

Laminated Pouch Packaging

Designed for sealing suitable heat-sealable packaging materials, including:

• Laminated plastic pouches
• Aluminum foil laminated pouches
• Silver laminated packaging bags
• Stand-up pouches with compatible sealing layers
• Heat-sealable plastic packaging bags

E-Commerce & Industrial Packaging

Useful for businesses requiring continuous sealing of compatible shipping pouches, product packaging bags and industrial packaging materials.

How to Operate the Machine

Step 1 – Machine Setup

Place the machine on a stable, level working surface and ensure that all components are properly installed.

Step 2 – Connect the Power Supply

Connect the machine to the power supply specified on its rating plate and switch it on.

Step 3 – Adjust Sealing Parameters

Set the appropriate sealing temperature and conveyor speed according to the pouch material and thickness.

Step 4 – Prepare the Pouches

Fill the pouches with the required product, ensuring that the sealing area is clean, dry and free from product residue.

Step 5 – Start the Sealing Process

Switch on the conveyor and heating system. Allow the machine to reach the required operating temperature.

Step 6 – Feed the Pouches

Position the open edge of each pouch correctly into the sealing mechanism. The conveyor will carry the pouch through the sealing section.

Step 7 – Inspect Seal Quality

Check the finished seal for proper bonding, alignment and appearance. Adjust the temperature or speed if necessary.

Step 8 – Complete the Operation

After use, follow the manufacturer's shutdown procedure and allow the heating components to cool before cleaning or maintenance.

Maintenance & Care

Regular Cleaning: Clean the conveyor, sealing area and accessible machine surfaces to prevent dust and packaging residue buildup.

Teflon Belt Inspection: Check the 770 mm Teflon belt regularly for wear, damage or misalignment. Replace it when necessary.

Motor & PCB Inspection: Periodically inspect the motor and electrical control components for proper operation.

Cooling Fan Maintenance: Keep the cooling fan clean and free from obstructions to maintain effective airflow.

Gear Mechanism Inspection: Check the gear mechanism for unusual noise, wear or improper operation.

Electrical Safety: Inspect the power cable, connections and insulation before operating the machine.

Important Notes

• Teflon Belt Size: Use the specified 770 mm Teflon belt compatible with the FRB-770 model.
• Control Panel Variation: The machine may be supplied with a digital or analog control panel, depending on the available variant.
• Material Compatibility: Suitable for compatible heat-sealable pouches. Sealing performance depends on packaging material, thickness, temperature and conveyor speed.
• Sealing Temperature: Always adjust the temperature according to the pouch material to prevent weak seals or excessive heating.
• Routine Maintenance: Inspect the sealing belt, cooling fan, conveyor and electrical components regularly.
• Machine Weight: Confirm the actual machine weight before shipping or publishing final logistics specifications.
