Universal Seal™ Economy Model Vertical Continuous Band Sealing Machine – 10 kg Load Capacity

Product Description

The Universal Seal™ Economy Model Vertical Continuous Band Sealing Machine – 10 kg Load Capacity is an efficient and economical industrial packaging machine designed for continuous sealing of plastic and laminated packaging pouches.

Built for businesses requiring consistent sealing performance, this vertical band sealer combines a continuous heat sealing mechanism, adjustable sealing height, digital temperature control and integrated conveyor system to simplify everyday packaging operations.

Unlike conventional manual impulse sealers, the continuous band sealing system allows operators to feed compatible pouches into the sealing mechanism one after another, helping improve packaging productivity and reduce repetitive manual work.

The machine features a vertical sealing configuration, making it particularly suitable for upright packaging pouches containing dry products, powders, granules and other compatible materials.

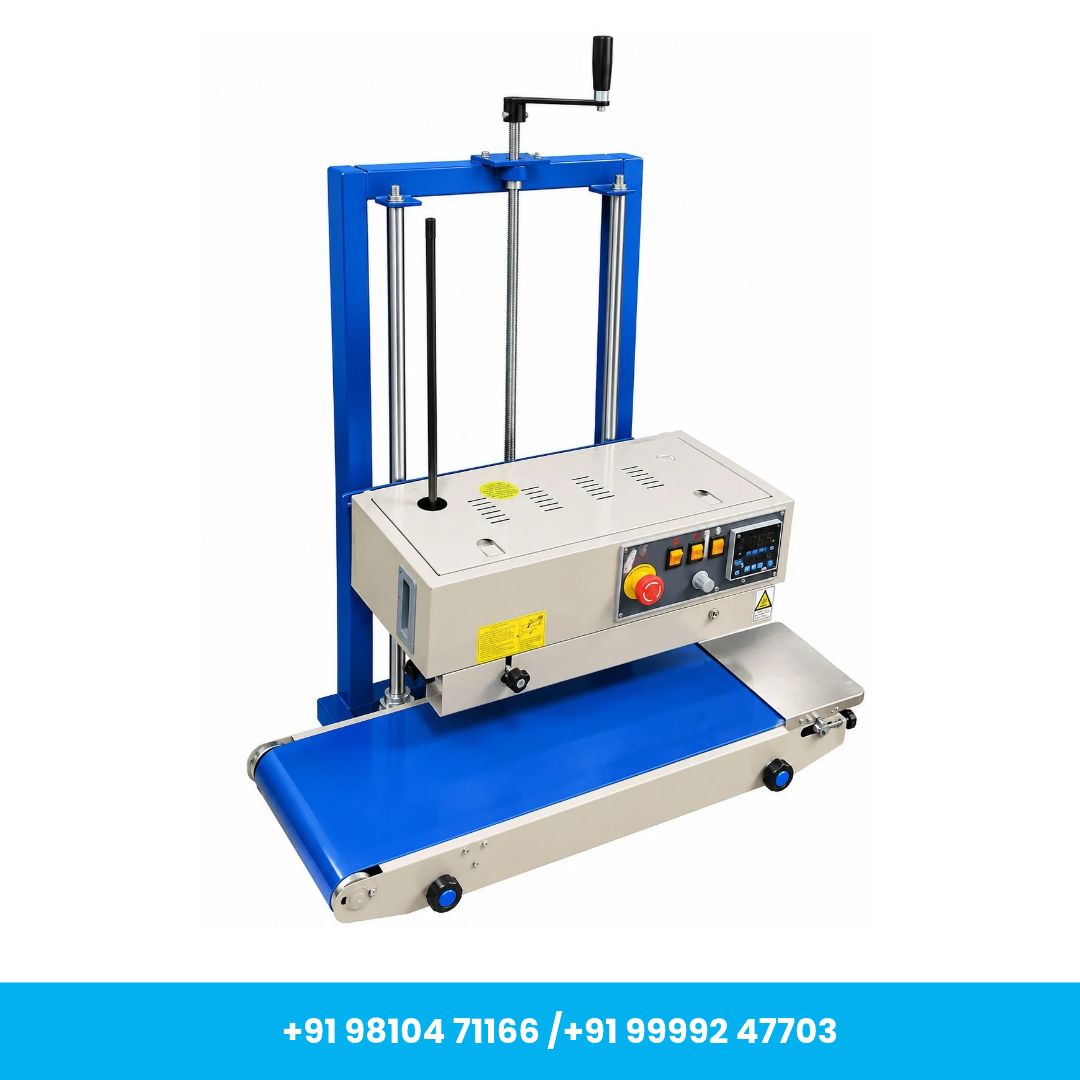

Its adjustable height mechanism allows operators to position the sealing head according to the dimensions of different pouches.

The integrated conveyor belt supports the packaging material while it passes through the sealing section, helping maintain smoother pouch movement during operation.

A digital temperature controller enables operators to set the sealing temperature according to the packaging material's requirements, helping achieve consistent heat seals.

Designed with an industrial-style frame and accessible operating controls, the Economy Model Vertical Band Sealer is a practical choice for small and medium-scale packaging businesses looking for an affordable continuous sealing solution.

Key Features

1. Continuous Band Sealing Technology

The machine uses a continuous heat sealing mechanism to seal compatible packaging pouches efficiently, reducing the need for repeated manual sealing cycles.

2. Vertical Sealing Configuration

Designed for sealing pouches in an upright position, making it suitable for many powder, granule and dry-product packaging applications.

3. 10 kg Load Capacity

The model is specified with a 10 kg load capacity, intended for heavier packaging applications compared with smaller-capacity models. The exact conveyor load rating and permissible individual pouch weight should be confirmed before use.

4. Adjustable Sealing Height

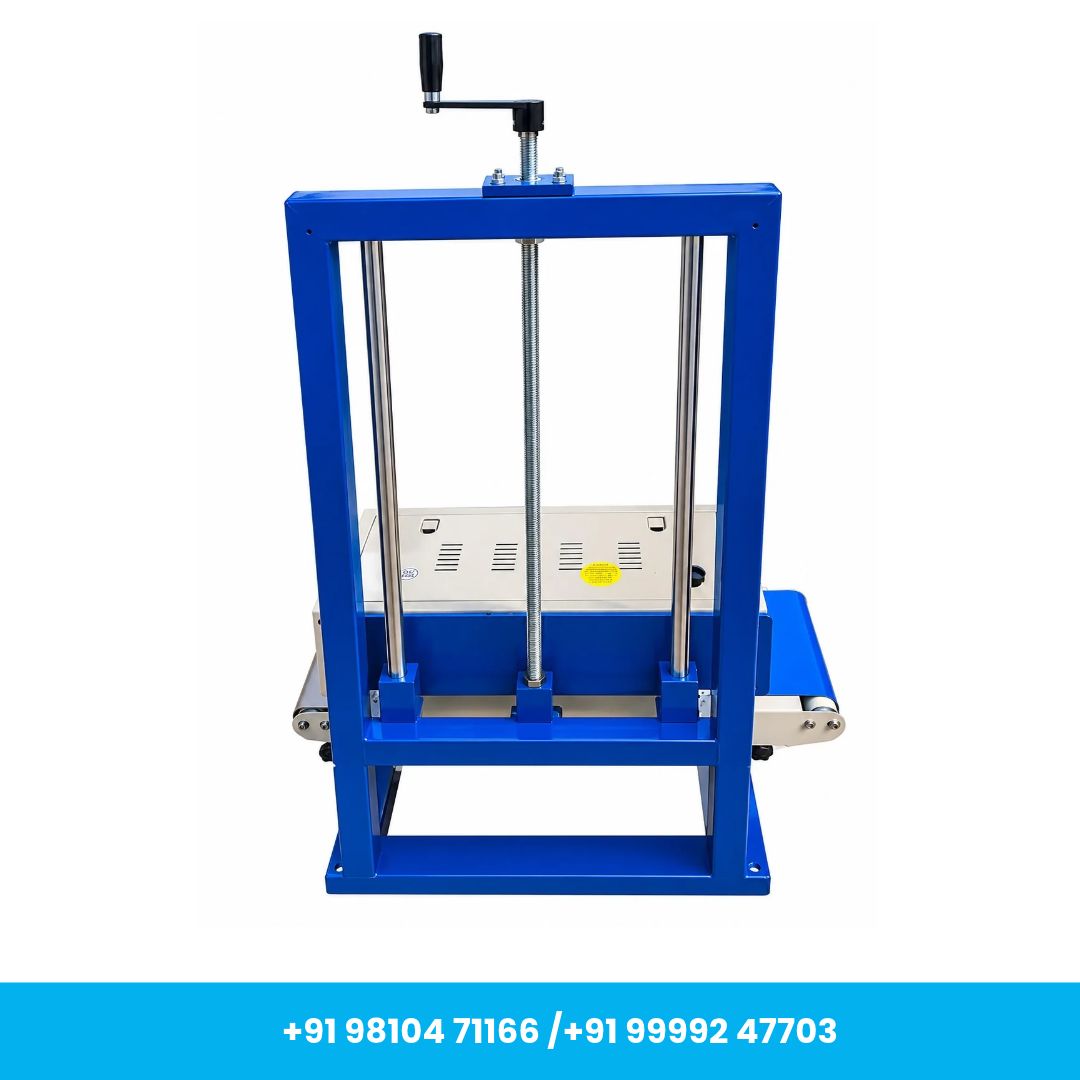

Features a height-adjustment mechanism that allows operators to position the sealing head according to different pouch heights and packaging requirements.

5. Digital Temperature Controller

Equipped with a digital temperature control system for setting and monitoring the sealing temperature according to compatible packaging materials.

6. Integrated Conveyor Belt

The built-in conveyor supports pouches during sealing and helps transport them through the sealing mechanism.

7. Continuous Packaging Operation

Supports repeated pouch sealing with a steady feed process, making it suitable for routine commercial and industrial packaging tasks.

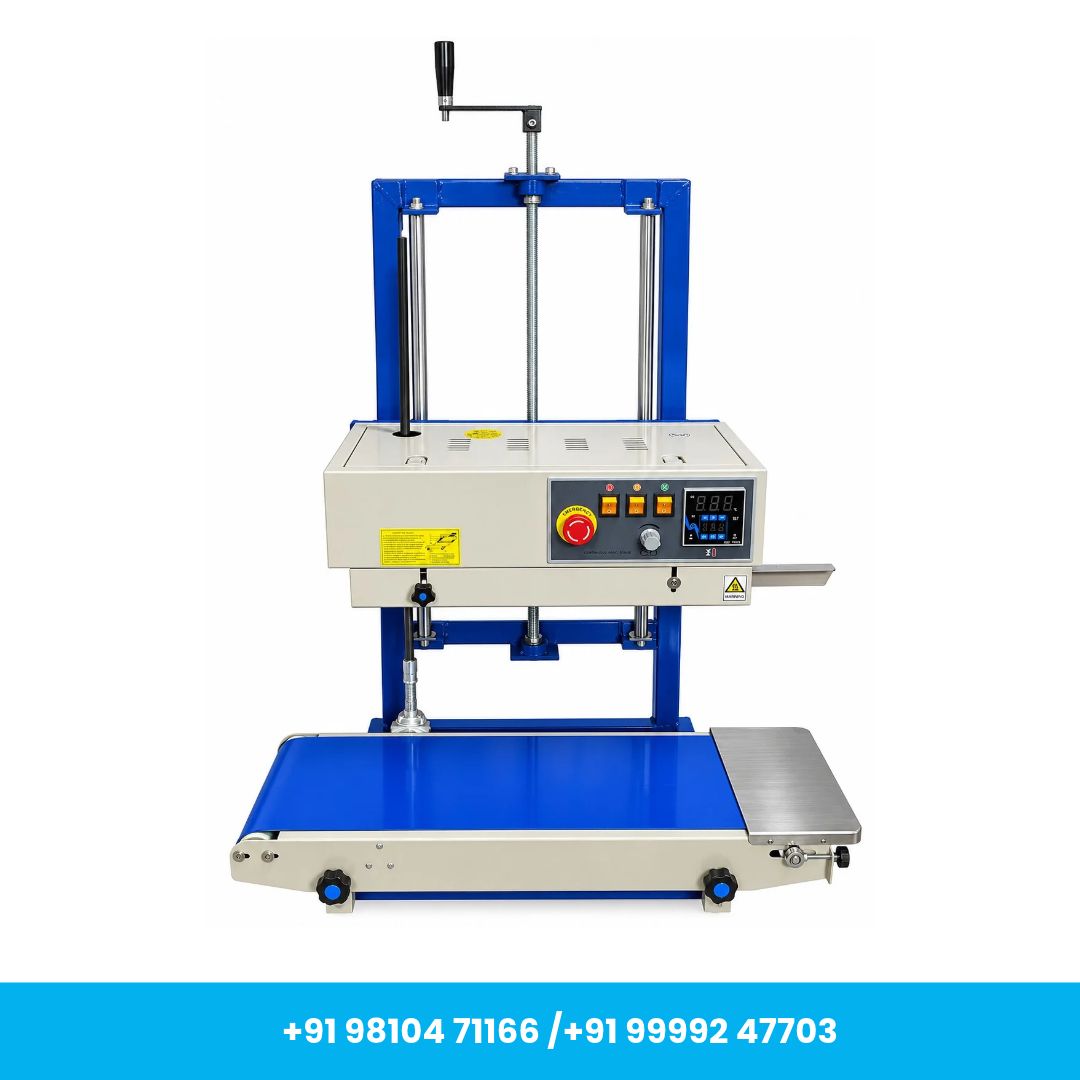

8. User-Friendly Control Panel

Features accessible operating switches and control indicators for convenient operation.

9. Emergency Stop Button

Includes a clearly visible emergency stop control for stopping the machine when necessary.

10. Economical Packaging Solution

The Economy Model offers a practical continuous sealing solution for businesses looking to improve packaging efficiency while managing equipment investment.

11. Industrial Frame Construction

Features a sturdy frame designed to support the sealing assembly and conveyor during normal packaging operations.

12. Suitable for Multiple Packaging Materials

Can be used with compatible heat-sealable pouch materials, including certain polyethylene, polypropylene and laminated films, subject to material thickness and sealing tests.

Applications

Food Processing Industry

Suitable for sealing compatible pouches containing:

• Rice
• Pulses and lentils
• Wheat and grains
• Dry fruits
• Snacks and namkeen
• Tea and coffee
• Sugar and salt
• Other dry food products

Spices & Powder Packaging

Suitable for sealing compatible pouches used for:

• Turmeric powder
• Red chilli powder
• Coriander powder
• Cumin powder
• Mixed spices
• Other dry powdered products

Agricultural Industry

Can be used for packaging suitable agricultural products such as seeds, grains and other dry materials.

Chemical Industry

Suitable for sealing compatible pouches containing non-hazardous industrial powders, granules and other products, subject to packaging material and machine compatibility.

General Industrial Packaging

Useful for packaging suitable hardware items, spare parts, small components and other non-hazardous products in compatible heat-sealable pouches.

Working Principle

The Universal Seal™ Economy Model Vertical Continuous Band Sealing Machine operates using a continuous heat sealing system.

First, the operator sets the sealing temperature according to the packaging material.

The sealing height is adjusted to match the pouch dimensions.

Once the machine reaches the required operating temperature, the operator places the open edge of a filled pouch into the sealing inlet.

The conveyor supports the pouch as it moves through the sealing mechanism.

During this process, heat and pressure are applied to the pouch opening to create a continuous seal.

The sealed pouch then moves out of the sealing section for collection and further packaging.

The final seal quality depends on packaging material, sealing temperature, conveyor speed, pouch thickness and operating conditions.

How to Use the Machine

Step 1: Machine Setup

• Place the machine on a stable, level surface.
• Ensure that the conveyor belt and sealing assembly are correctly positioned.
• Check the electrical connections.
• Inspect the machine for loose parts or visible damage.

Step 2: Adjust Sealing Height

• Use the height-adjustment handwheel to position the sealing assembly.
• Set the height according to the pouch dimensions.
• Ensure that the pouch opening aligns correctly with the sealing inlet.

Step 3: Set Sealing Temperature

• Switch on the machine.
• Set the required sealing temperature using the digital controller.
• Allow the heating system to reach the selected temperature.
• Use a test pouch to determine the appropriate sealing setting.

Step 4: Prepare Packaging Pouches

• Fill compatible pouches with the required product.
• Keep the sealing area clean and free from powder, oil, moisture or other contamination.
• Avoid overfilling the pouch.

Step 5: Start the Conveyor

• Activate the conveyor system using the machine controls.
• Confirm that the belt is moving correctly.
• Adjust available speed settings according to the machine configuration.

Step 6: Begin Sealing

• Place the open edge of the filled pouch into the sealing inlet.
• Allow the conveyor to move the pouch through the sealing section.
• Avoid pulling or forcing the pouch during operation.

Step 7: Inspect Sealing Quality

• Collect the sealed pouch.
• Check the seal for uniformity, strength and completeness.
• Adjust temperature, alignment or available speed settings if necessary.

Step 8: Complete Operation

• Stop feeding pouches into the machine.
• Follow the manufacturer's recommended shutdown and cooling procedure.
• Switch off the machine after use.
• Clean the conveyor and accessible external surfaces.

Maintenance & Care Instructions

1. Regular Cleaning

Clean the conveyor belt, sealing area and machine surfaces regularly to prevent dust and packaging residue buildup.

2. Heating System Inspection

Check the sealing system for inconsistent heating or visible damage. Allow the machine to cool before inspection.

3. Conveyor Belt Maintenance

Inspect the conveyor belt for wear, misalignment and improper movement.

4. Temperature Control Check

Periodically verify that the temperature controller is operating correctly and producing consistent sealing results.

5. Sealing Belt Inspection

Inspect sealing belts and other consumable sealing components for wear and replace them according to the manufacturer's instructions.

6. Electrical Safety

Disconnect the electrical supply before maintenance. Avoid touching heated sealing components during or immediately after operation.

7. Prevent Overloading

Do not exceed the manufacturer's rated conveyor load capacity.

8. Proper Storage

Keep the machine in a clean, dry and well-ventilated environment when not in use.

Benefits of Using a Vertical Continuous Band Sealer

• Helps improve packaging productivity
• Reduces repetitive manual sealing work
• Supports consistent heat sealing
• Suitable for various pouch sizes
• Adjustable sealing height
• Convenient digital temperature control
• Integrated conveyor for pouch movement
• Suitable for multiple commercial packaging applications
• Practical solution for small and medium-scale businesses

Important Information

• The stated 10 kg load capacity should be verified against the manufacturer's conveyor rating.
• Actual sealing performance depends on pouch material, thickness and operating settings.
• Not all plastic or laminated packaging materials are heat-sealable with the same settings.
• The machine is intended for compatible packaging pouches and suitable operating conditions.
• Confirm electrical specifications, sealing speed and maximum pouch dimensions before ordering.
• Machine specifications and supplied accessories may vary depending on the model or production batch.
