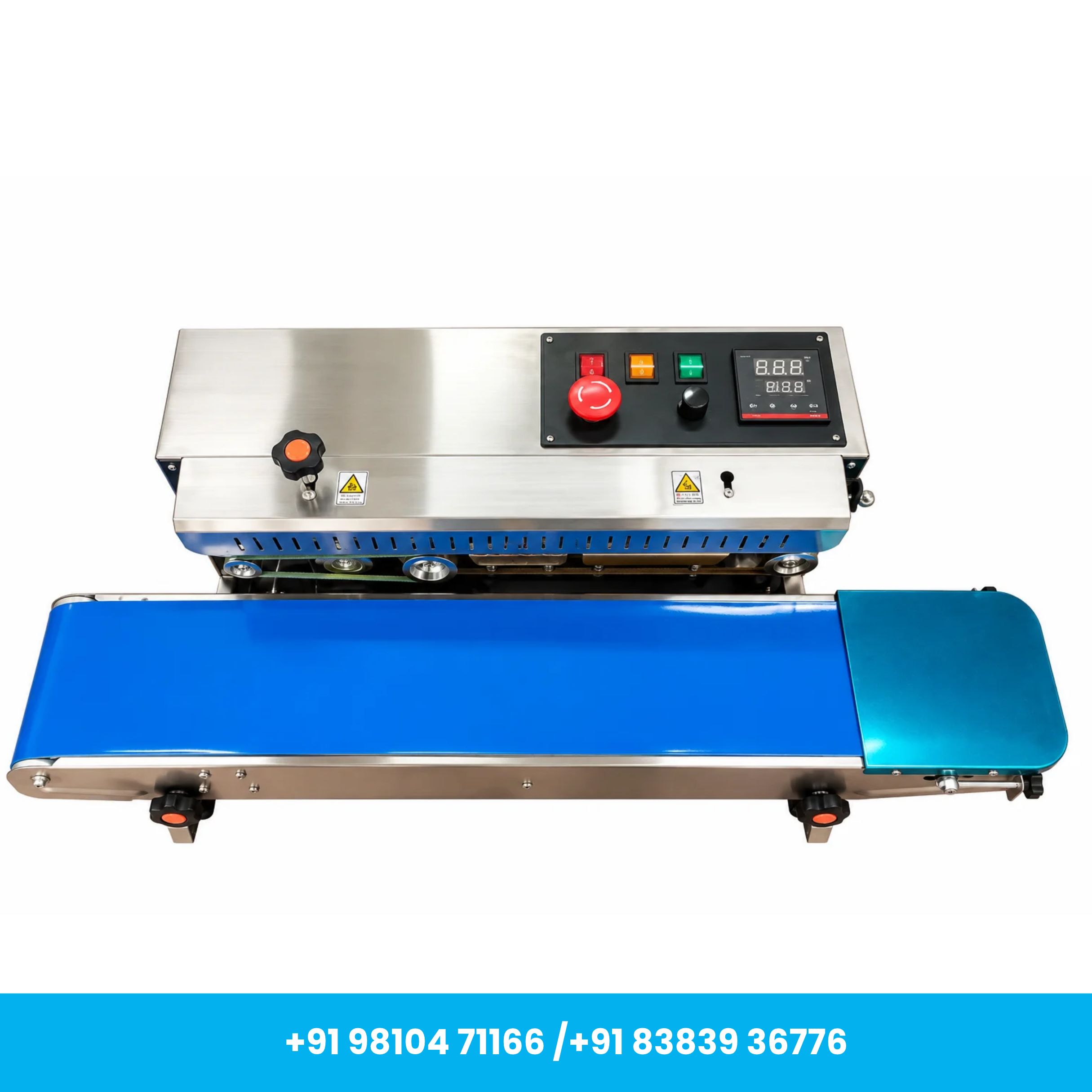

Universal Seal™ FR-900 SS Digital Continuous Horizontal Band Sealer Machine

The Universal Seal™ FR-900 SS Digital Continuous Horizontal Band Sealer is a heavy-duty packaging machine designed for fast, continuous and reliable sealing of high-grade and laminated pouches. Its durable stainless steel body makes it suitable for regular commercial and industrial packaging applications where consistent sealing and efficient production are required.

The FR-900 features a motorized conveyor system that automatically carries filled pouches through the sealing section. With an adjustable sealing speed of 0–12 m/min, sealing width of up to 12 mm, and a temperature range of 30–300°C, operators can adjust the machine according to compatible pouch materials and packaging requirements.

The conveyor supports loads of up to 5 kg, while the digital control panel provides convenient access to temperature, speed, heating, cooling and power controls. This makes the FR-900 a practical solution for food, pharmaceutical, agricultural, FMCG, chemical and general industrial packaging applications.

Key Features

Stainless Steel Body: Durable SS construction provides a professional finish and is suitable for regular commercial and industrial use.

Continuous Sealing Operation: Designed for continuous pouch sealing to improve packaging speed and reduce manual effort.

Digital Control Panel: Convenient digital controls make it easy to manage temperature, conveyor speed and machine operation.

Adjustable Sealing Speed: Variable sealing speed from 0–12 m/min allows adjustment according to different packaging requirements.

Up to 12 mm Sealing Width: Produces a strong and consistent sealing band on compatible high-grade pouches.

Adjustable Temperature: Temperature range of 30–300°C provides flexibility for different compatible heat-sealable materials.

Motorized Conveyor: Automatically moves filled pouches through the sealing section for efficient and consistent operation.

Up to 5 kg Conveyor Loading: Designed to handle a conveyor load of up to approximately 5 kg, subject to proper weight distribution.

Variable Speed Control: Conveyor speed can be adjusted according to pouch material and production requirements.

Heavy-Duty Performance: Suitable for regular packaging operations where continuous sealing and higher productivity are required.

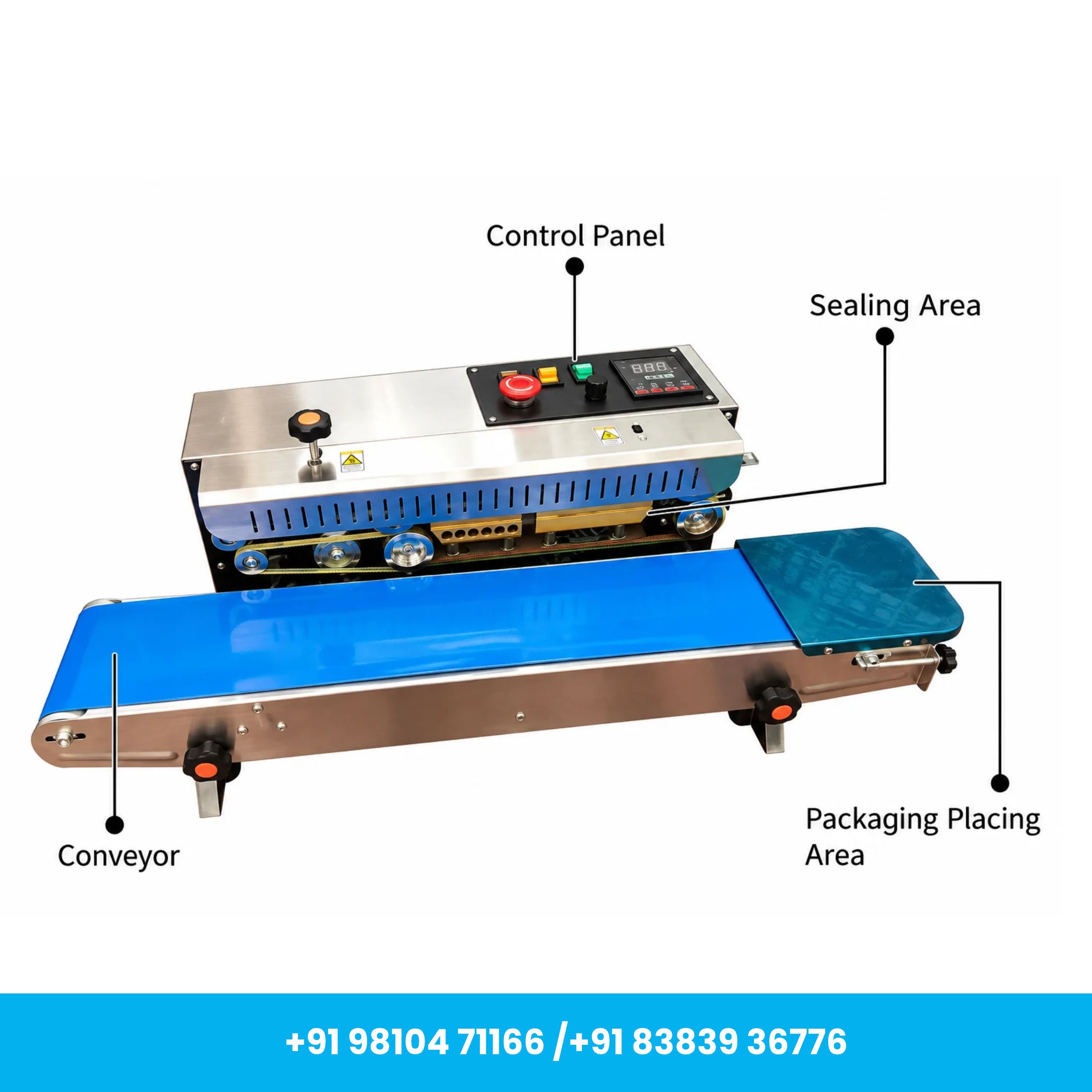

Control Panel Details

The FR-900 is equipped with a digital control panel for convenient machine operation, including:

• Digital Temperature Controller
• Speed Controller
• Emergency Stop Button
• Power Switch
• Heater Switch
• Cooling Switch

Applications

Food Packaging: Suitable for sealing compatible laminated pouches used for snacks, spices, grains, dry fruits, frozen foods and other packaged food products.

Pharmaceutical Packaging: Suitable for compatible packaging applications involving pharmaceutical and healthcare products.

Agricultural Products: Can be used for sealing compatible pouches containing seeds and other agricultural products.

FMCG & Retail Packaging: Suitable for continuous pouch-sealing requirements in FMCG, retail and general manufacturing operations.

Chemical & Industrial Packaging: Can be used for compatible packaging materials in selected chemical, electronics, hardware and general industrial applications.

How to Use

Machine Setup: Place the FR-900 Horizontal Band Sealer on a stable and level working surface. Check that the conveyor and sealing components are properly aligned.

Power Connection: Connect the machine to the appropriate electrical supply and switch on the main power.

Set Temperature: Adjust the temperature according to the pouch material and thickness. Allow the machine sufficient time to reach the selected operating temperature.

Adjust Conveyor Speed: Set the conveyor speed according to your production requirements and the sealing characteristics of the pouch.

Prepare the Pouches: Ensure the sealing area of the pouch is clean, dry and properly aligned. Avoid product residue, moisture or wrinkles around the sealing edge.

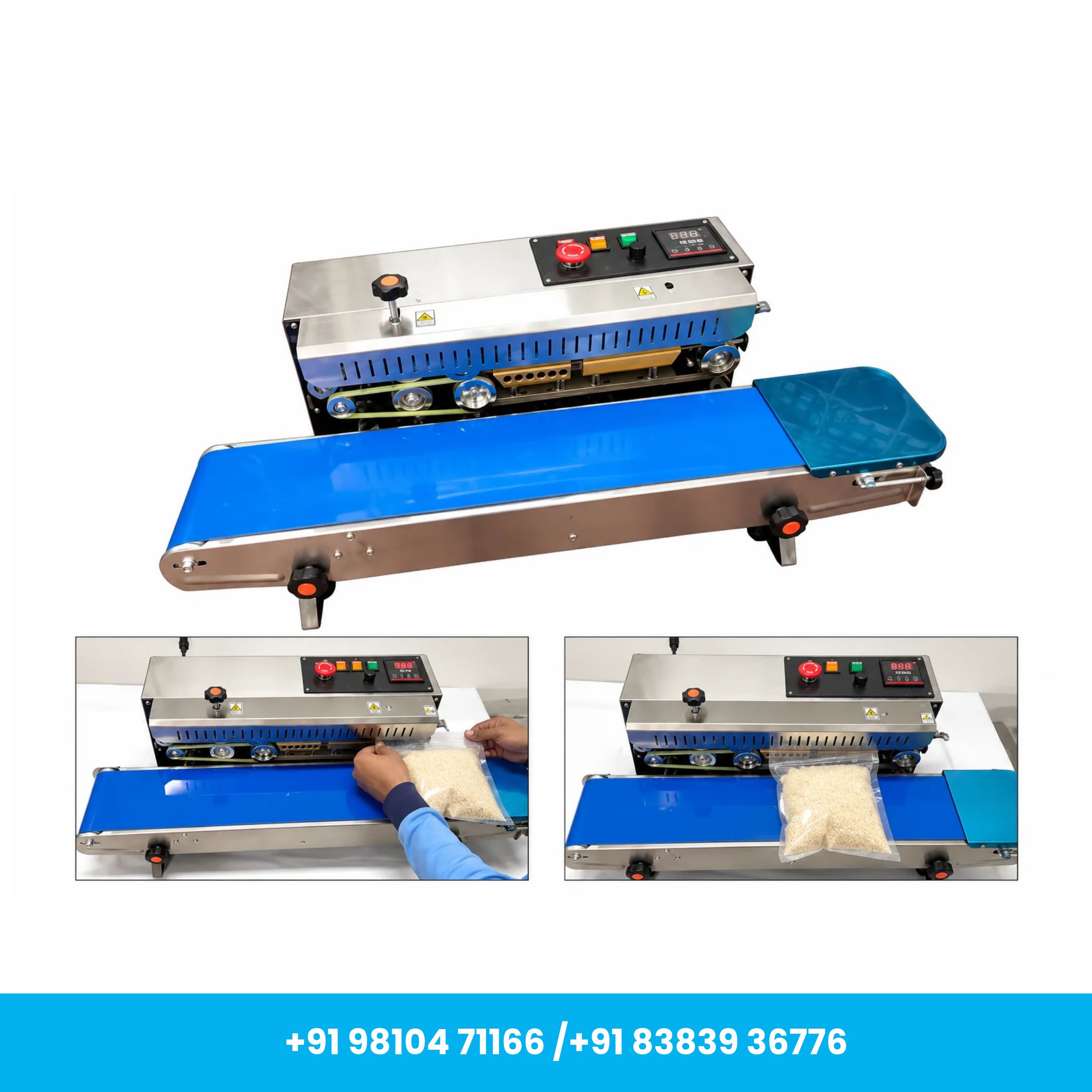

Feed the Pouches: Place the filled pouch horizontally on the conveyor and guide its open edge into the sealing section.

Continuous Sealing: The motorized conveyor automatically carries the pouch through the heating, sealing and cooling sections.

Inspect the Seal: Collect the sealed pouch from the output side and check the seal for proper adhesion, alignment and consistency. Adjust the temperature or speed if necessary.

Important Notes

• Recommended for high-grade and laminated pouches compatible with heat sealing.
• Conveyor belt colour may vary depending on the available production batch.
• Actual sealing performance may vary depending on pouch material, thickness, temperature and conveyor speed.
• Always perform a test seal when using a new pouch material or changing machine settings.

Maintenance

Regular Cleaning: Wipe the machine body and conveyor with a clean, soft cloth to prevent dust and packaging residue buildup.

Inspect Sealing Components: Periodically inspect the sealing bands, Teflon belts, rollers and heating components for wear or damage.

Check Conveyor Alignment: Make sure the conveyor belt moves smoothly and remains correctly aligned during operation.

Inspect Electrical Components: Check the power cable, switches and visible electrical connections regularly for signs of damage.

Test Machine Operation: Perform a test run after maintenance or adjustments to confirm proper conveyor movement and sealing performance.

Power Off Before Maintenance: Always switch off and disconnect the machine from the electrical supply before cleaning, inspection or maintenance.

Brand: Universal Seal™

Model: FR-900

Machine Type: SS Digital Continuous Horizontal Band Sealer

Body Material: Stainless Steel

Product Origin: Imported

Universal Seal™ | Since 2010

Universal Packaging Solutions, New Delhi
