Universal Seal™ FR-400 Mini Panel MS Horizontal Band Sealer Machine

Description

The Universal Seal™ FR-400 Mini Panel MS Horizontal Band Sealer is a compact and efficient continuous sealing machine designed for high-grade and laminated pouches. Its space-saving design makes it a practical solution for small and medium businesses requiring reliable pouch sealing without a built-in conveyor belt.

Built with a durable mild steel (MS) body, the FR-400 features 650W power, adjustable sealing speed of 0–12 m/min, a 10 mm sealing width, and a temperature range of 0–400°C. It is suitable for compatible pouches with a thickness of approximately 0.02–0.5 mm and can handle a maximum sealing weight of up to 2 kg, depending on the packaging application.

The machine is suitable for regular packaging requirements in food, spices, pharmaceuticals, FMCG, chemicals, retail, e-commerce and general industrial applications. Its simple operation, compact construction and continuous sealing mechanism help businesses improve packaging efficiency while maintaining consistent sealing quality.

Key Features

Compact Mini Panel Design: Space-saving construction makes the machine suitable for shops, small production units and commercial packaging setups.

Durable Mild Steel Body: Strong MS construction provides durability for regular packaging operations.

Continuous Sealing: Designed for continuous pouch sealing to improve productivity and reduce manual sealing time.

Adjustable Sealing Speed: Variable 0–12 m/min sealing speed provides flexibility according to pouch material and production requirements.

10 mm Sealing Width: Provides a uniform and secure sealing band for compatible high-grade and laminated pouches.

Adjustable Temperature: Temperature can be adjusted from 0–400°C according to the pouch material and thickness.

650W Power: Provides efficient heating performance for regular pouch-sealing applications.

50W Motor: Supports smooth operation of the continuous sealing mechanism.

No Built-In Conveyor Belt: Compact configuration designed without a conventional conveyor belt.

Easy to Operate: Straightforward controls make the machine convenient for regular commercial packaging operations.

Applications

Food & Spice Packaging: Suitable for compatible pouches used for snacks, spices, grains, dry fruits, tea, coffee and other packaged food products.

Pharmaceutical Packaging: Can be used for compatible pouches containing selected pharmaceutical and healthcare products.

Chemical & Industrial Packaging: Suitable for compatible packaging materials used for selected chemical, hardware and general industrial products.

FMCG & Retail: Useful for businesses requiring regular sealing of compatible laminated and high-grade pouches.

E-commerce Packaging: Suitable for selected pouch-sealing requirements in packing and fulfilment operations.

How to Use

Machine Preparation: Place the FR-400 on a stable, flat and dry working surface. Check that the sealing components are correctly positioned before operation.

Power Connection: Connect the machine to a suitable 220V, 50Hz power supply and switch on the power.

Set the Temperature: Adjust the temperature according to the material and thickness of the pouch. Allow sufficient time for the sealing section to reach the selected temperature.

Adjust Sealing Speed: Set the sealing speed according to the pouch material and required sealing quality.

Prepare the Pouch: Ensure that the pouch opening is clean, dry and free from product residue, moisture, oil or wrinkles.

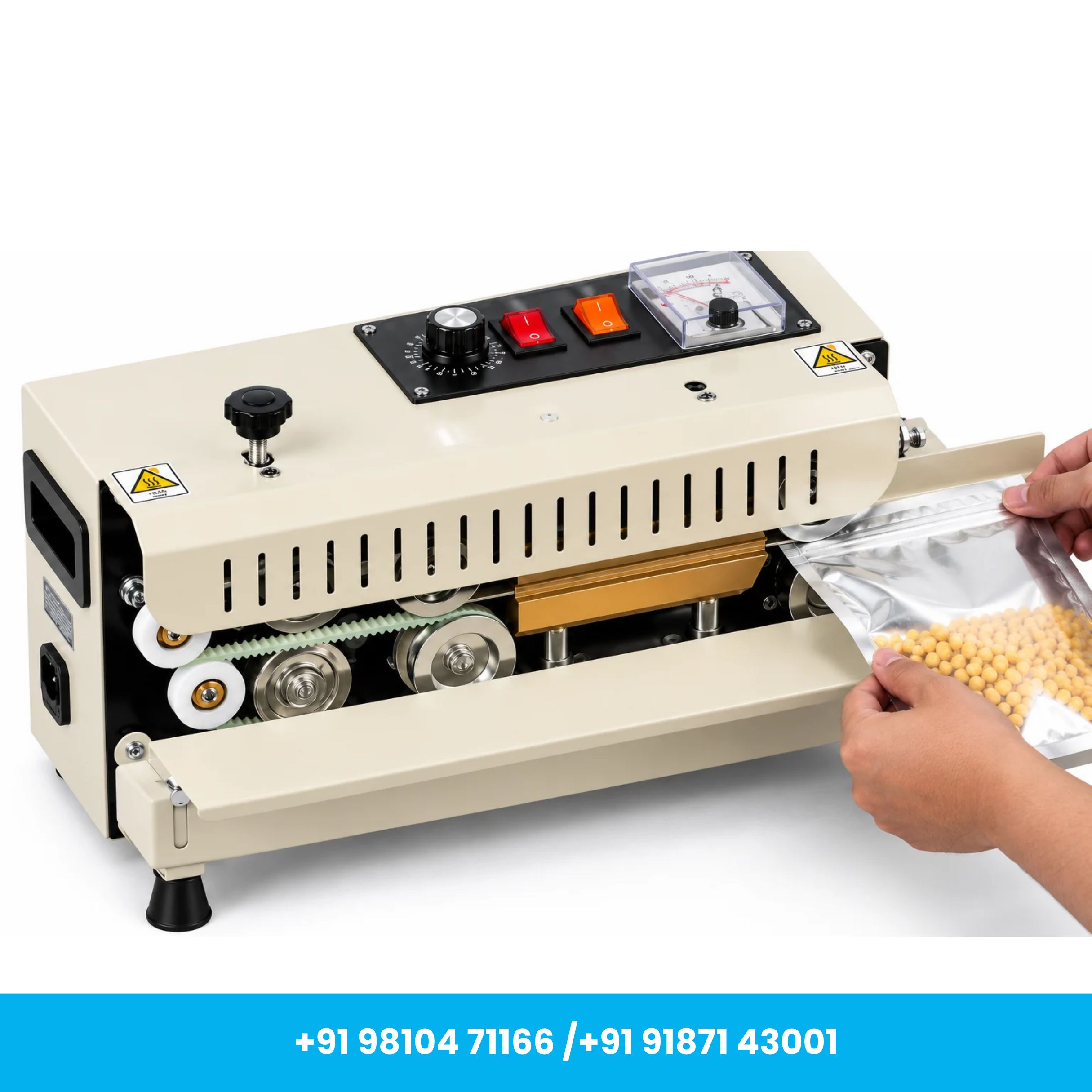

Feed the Pouch: Correctly align the open edge of the pouch with the sealing section and carefully feed it into the machine.

Continuous Sealing: The machine carries the pouch edge through the heating, sealing and cooling mechanism to produce a continuous seal.

Inspect the Seal: Check the finished seal for proper adhesion and consistency. Adjust the temperature or speed if required before starting bulk production.

Important Notes

• Recommended for high-grade and laminated pouches compatible with heat sealing.
• Panel design may vary depending on the available production batch.
• This model is supplied without a built-in conveyor belt.
• Actual sealing performance depends on pouch material, thickness, temperature and operating speed.
• Always perform a test seal before bulk production when using a new pouch material.

Maintenance

Regular Cleaning: Keep the sealing area and machine body clean and remove packaging residue after regular operation.

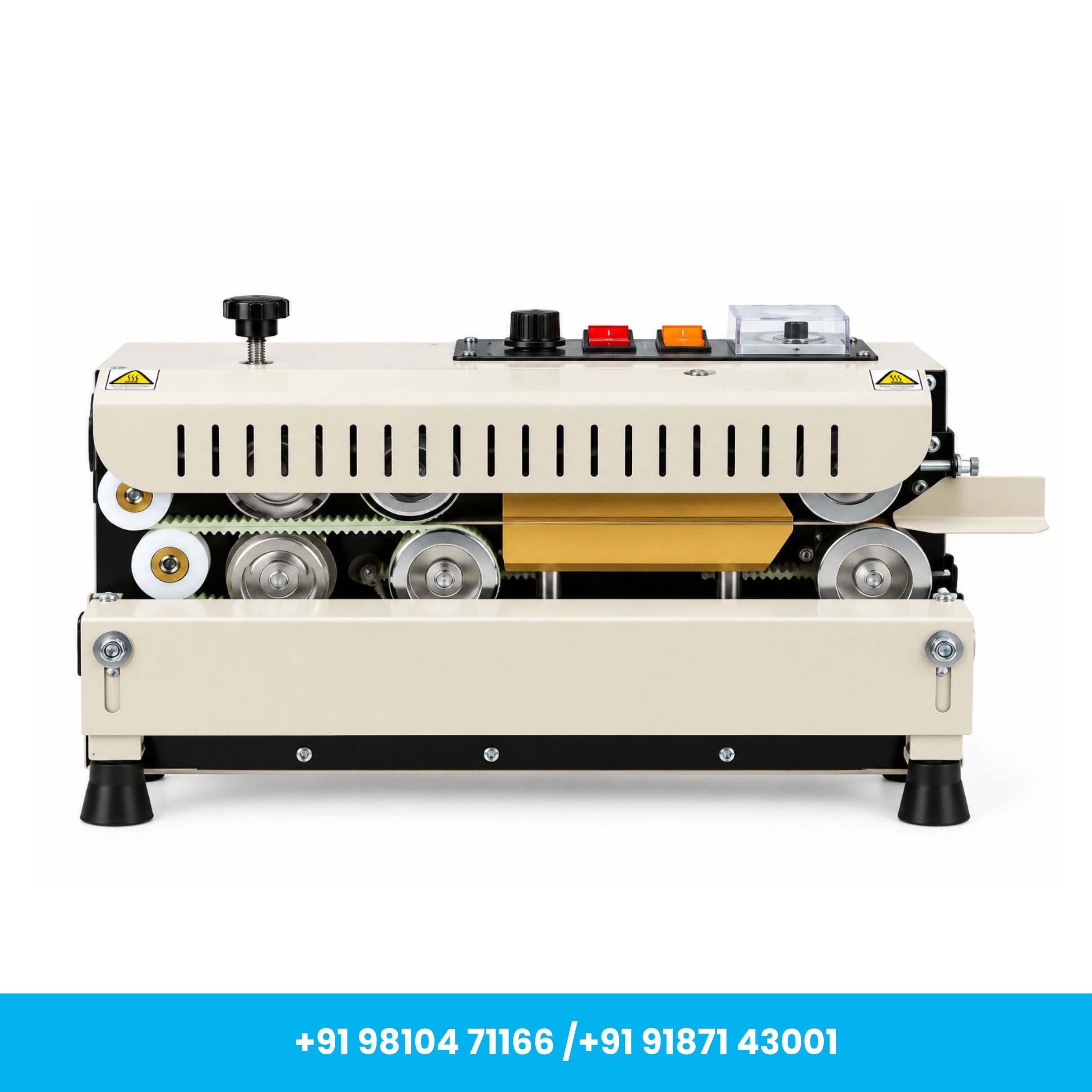

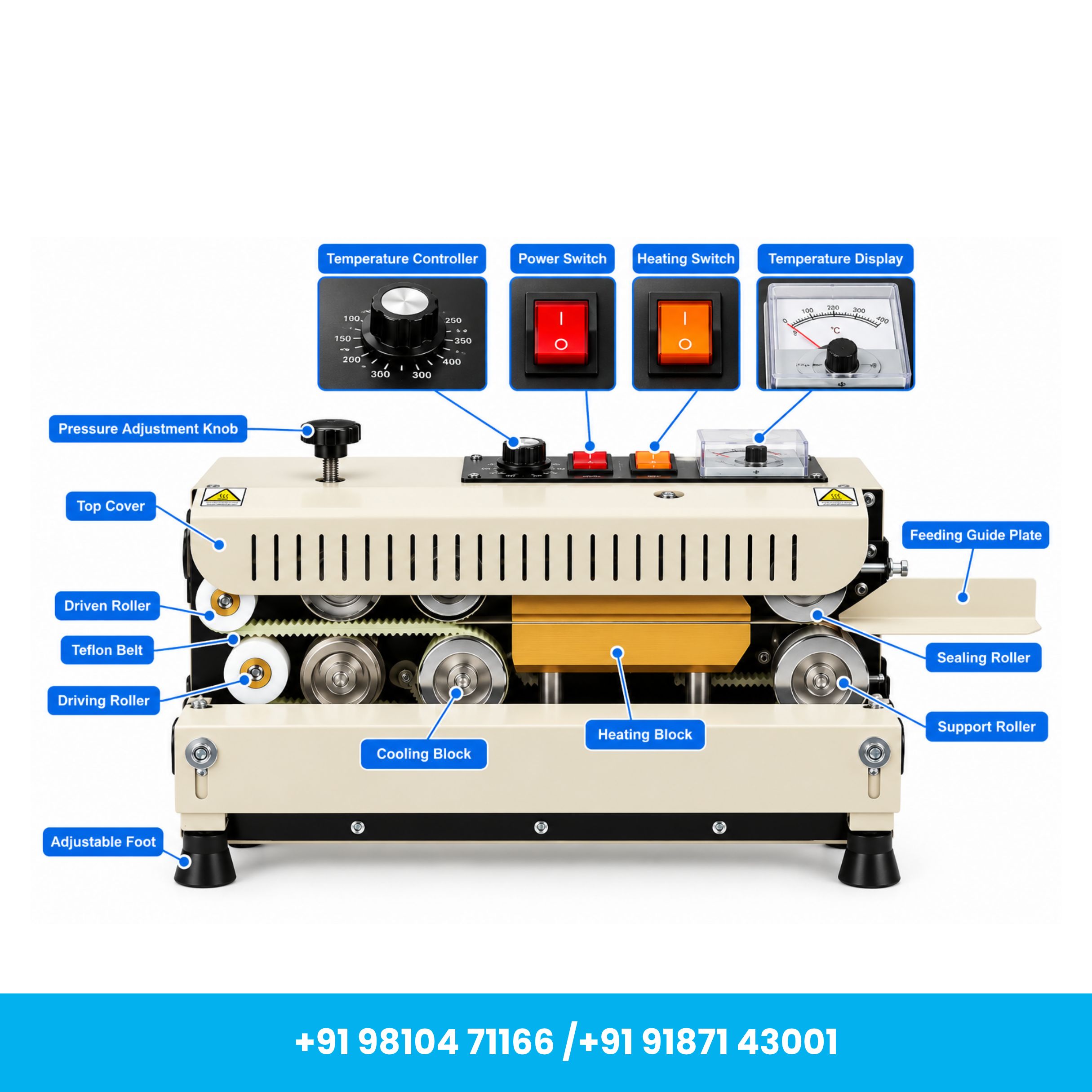

Inspect Sealing Components: Periodically check the sealing belts, heating components and rollers for wear or damage.

Electrical Inspection: Check the power cable, switches and visible electrical connections regularly for signs of damage.

Routine Testing: Perform sample sealing tests periodically to ensure consistent machine performance and sealing quality.

Power Off Before Maintenance: Always switch off and unplug the machine before cleaning, adjustment or maintenance.

Brand: Universal Seal™

Model: FR-400

Machine Type: Mini Panel MS Horizontal Band Sealer

Body Material: Mild Steel

Sealing Width: 10 mm

Product Origin: Imported
