Universal Seal™ DZ-300A Heavy Duty Semi-Automatic Household Vacuum Sealer Machine – 300mm

Product Description

The Universal Seal™ DZ-300A Heavy Duty Semi-Automatic Household Vacuum Sealer Machine is a compact, portable and user-friendly vacuum packaging solution designed for household kitchens, small businesses, retail shops and light commercial packaging applications.

Featuring a 300mm sealing length, 10mm sealing width and an approximate vacuum capacity of 0.035 MPa, this machine helps remove air from compatible vacuum pouches before heat sealing them to protect packaged products from unnecessary air exposure.

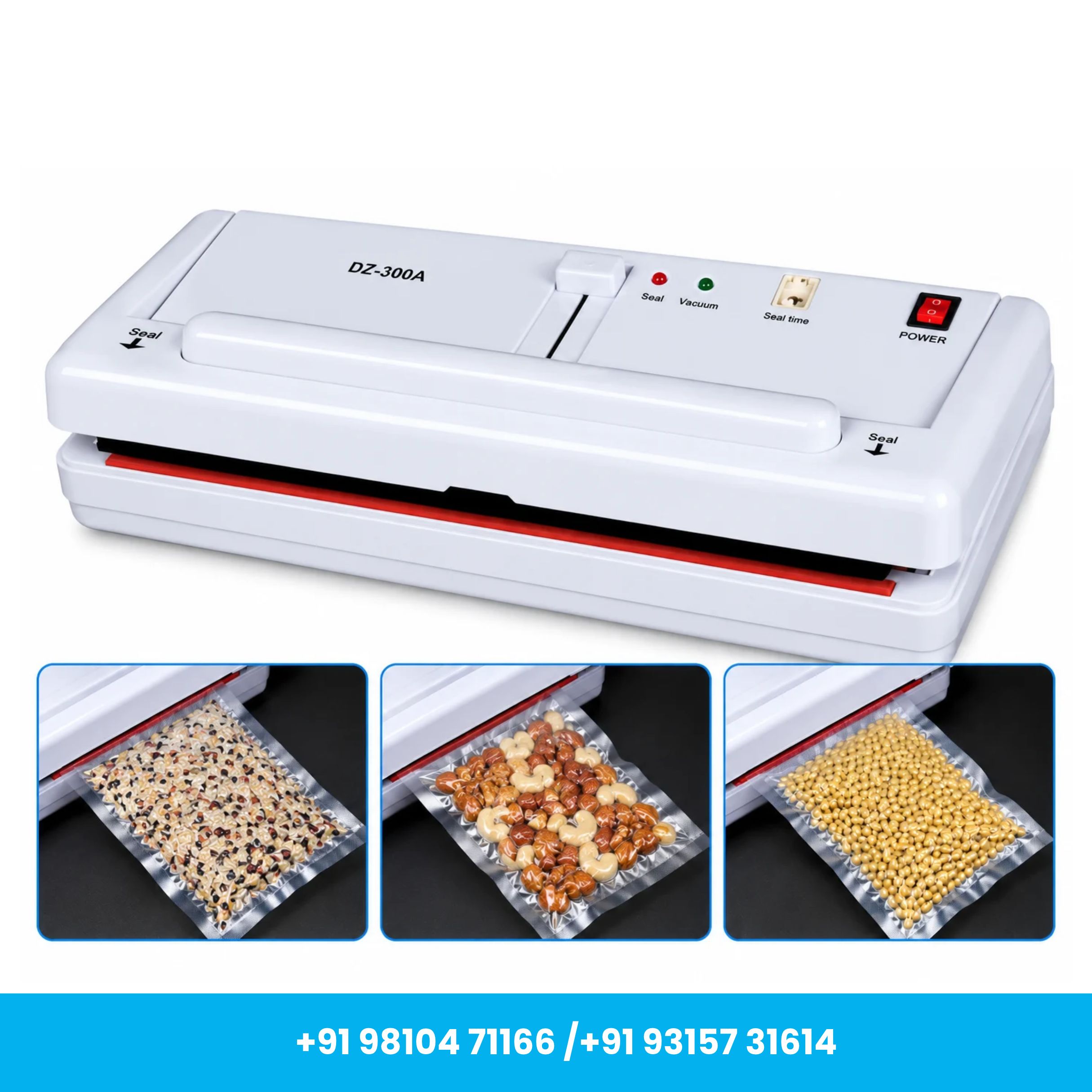

The DZ-300A Vacuum Sealer is suitable for packaging dry fruits, nuts, grains, pulses, spices, snacks and other compatible food products. By reducing the amount of air inside the packaging, it helps maintain product freshness, minimize oxidation and support longer storage life when combined with appropriate food handling and storage conditions.

With a stated sealing speed of 1–4 bags per minute, this semi-automatic vacuum packaging machine offers convenient operation for everyday packaging requirements. Its lightweight construction, weighing approximately 2.5 kg, and space-saving dimensions make it easy to position on a kitchen countertop or packaging workstation.

The machine supports compatible vacuum pouches up to 11 inches in width, making it a practical solution for businesses and households seeking an affordable and efficient vacuum packaging system.

Important: Use only compatible vacuum pouches recommended for this machine. Ordinary polypropylene (PP) pouches or unsuitable heat-sealing bags should not be used.

Key Features

1. Efficient Vacuum Sealing Technology

Designed to remove air from compatible vacuum pouches, helping reduce oxygen exposure and protect packaged products during storage.

2. 300mm Sealing Length

Equipped with a 300mm sealing length, suitable for sealing compatible vacuum pouches within the specified width limit.

3. 10mm Sealing Width

Provides a 10mm-wide heat seal to support secure pouch closure when used with suitable packaging materials and properly adjusted sealing settings.

4. Compact & Portable Design

Its lightweight body and compact dimensions make the machine convenient for household kitchens, retail counters and small packaging workstations.

5. Semi-Automatic Operation

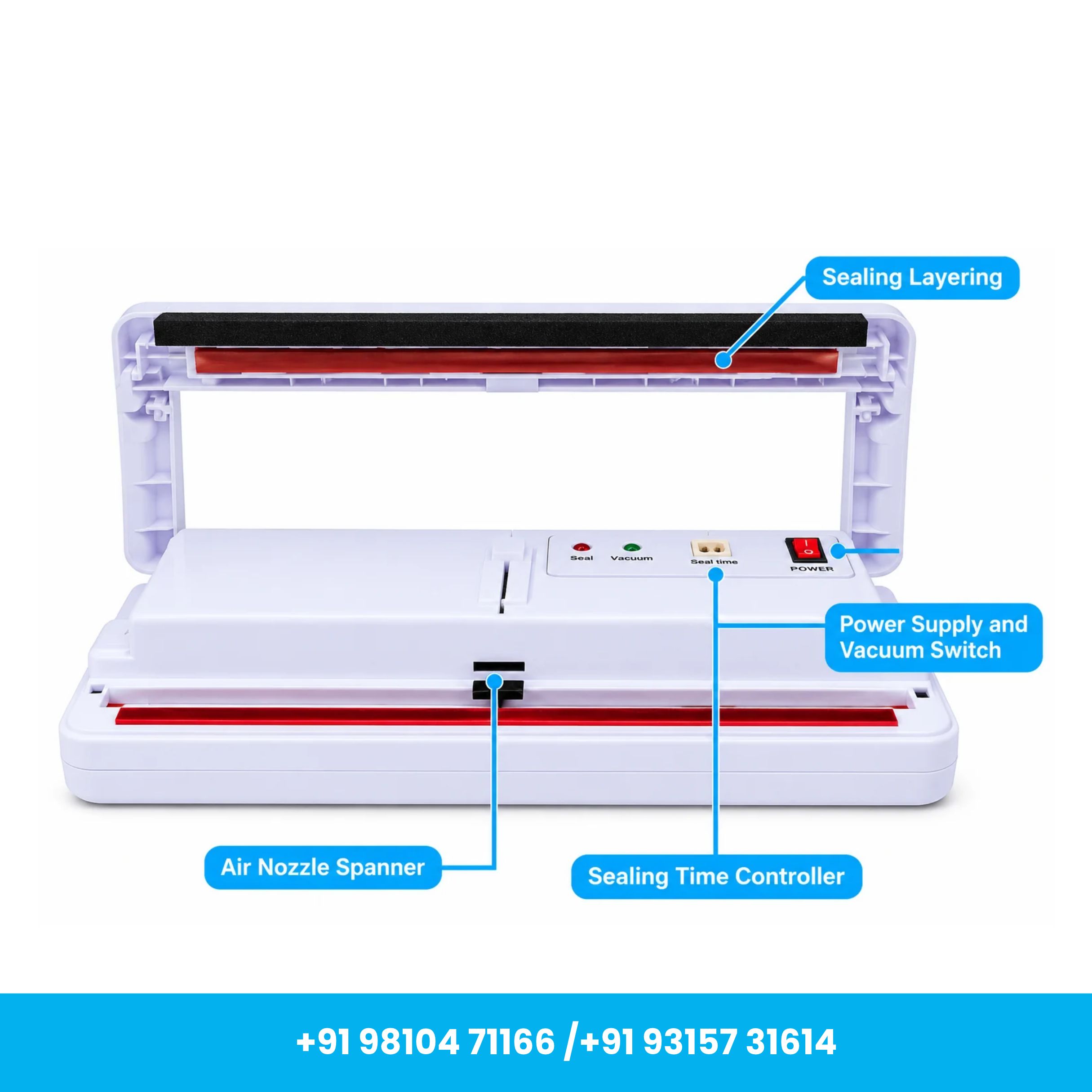

Features straightforward vacuum and sealing controls, allowing operators to manage the packaging process according to product requirements.

6. Adjustable Sealing Time

The sealing-time adjustment function allows users to select appropriate settings for compatible vacuum pouch materials.

7. Approx. 0.035 MPa Vacuum Capacity

Offers a stated vacuum capacity of approximately 0.035 MPa, supporting air removal from compatible vacuum packaging bags.

8. Efficient Packaging Speed

Provides a stated packaging speed of 1–4 bags per minute, depending on pouch size, vacuuming time, product characteristics and operator handling.

9. Helps Maintain Food Freshness

By reducing air exposure, vacuum packaging can help maintain the quality, flavor and appearance of suitable food products.

10. Helps Reduce Freezer Burn

When used with suitable freezer-safe vacuum pouches, reduced air exposure can help minimize freezer burn during frozen food storage.

11. Low-Maintenance Design

Designed for convenient everyday use with straightforward cleaning and routine maintenance requirements.

12. Suitable for Household & Small Business Use

Ideal for domestic food storage, dry food packaging, small retail businesses and light commercial applications.

Applications

1. Household Food Preservation

Suitable for vacuum packaging compatible food items for organized storage and reduced air exposure.

Common applications include:

• Dry fruits and nuts
• Rice and grains
• Pulses and lentils
• Spices and seasonings
• Snacks and dry food products
• Other compatible household food items

2. Pantry Organization

Helps organize pantry products by packaging suitable dry foods in compact vacuum pouches.

Useful for managing household food supplies and reducing unnecessary packaging bulk.

3. Small Food Packaging Businesses

Suitable for small businesses, grocery stores and retail shops requiring vacuum packaging of compatible dry food products.

4. Freezer Storage

When used with suitable freezer-safe vacuum pouches, the machine can help reduce air exposure around packaged foods and minimize freezer burn.

Perishable products must still be refrigerated or frozen at appropriate temperatures.

5. Agricultural Product Packaging

Can be used for packaging compatible dry agricultural products, including:

• Grains
• Seeds
• Pulses
• Dry beans
• Selected dry food commodities

6. Non-Food Product Packaging

May be used for packaging compatible small non-food items that benefit from reduced air exposure and organized storage.

For medicines, medical supplies or sensitive products, packaging suitability must be confirmed against the manufacturer's storage and handling requirements.

How to Operate the DZ-300A Vacuum Sealer Machine

Step 1 – Prepare the Machine

Place the vacuum sealer on a clean, stable and level surface.

Ensure that the sealing strip, vacuum nozzle and surrounding areas are free from dust, moisture and packaging residue.

Step 2 – Connect the Power Supply

Connect the machine to a suitable 220V, 50Hz electrical supply and switch on the power.

Step 3 – Select a Compatible Vacuum Pouch

Choose a vacuum pouch specifically suitable for the DZ-300A nozzle-type vacuum sealing system.

Ensure that the pouch width does not exceed the stated 11-inch limit.

Step 4 – Fill the Vacuum Pouch

Place the product inside the pouch, leaving sufficient empty space at the open end for proper vacuuming and sealing.

Avoid overfilling the pouch.

Step 5 – Position the Pouch

Position the open end of the pouch correctly at the machine's vacuum nozzle and sealing area.

Ensure that the pouch is flat and free from wrinkles or folds.

Step 6 – Adjust the Sealing Time

Select the appropriate sealing time according to the pouch material and thickness.

Step 7 – Start the Vacuum Process

Operate the vacuum control according to the machine's instructions.

Allow the machine to extract the required amount of air from t
