Universal Seal™ Single Head Digital Liquid Filling Machine – 10ml to 1000ml

Product Description

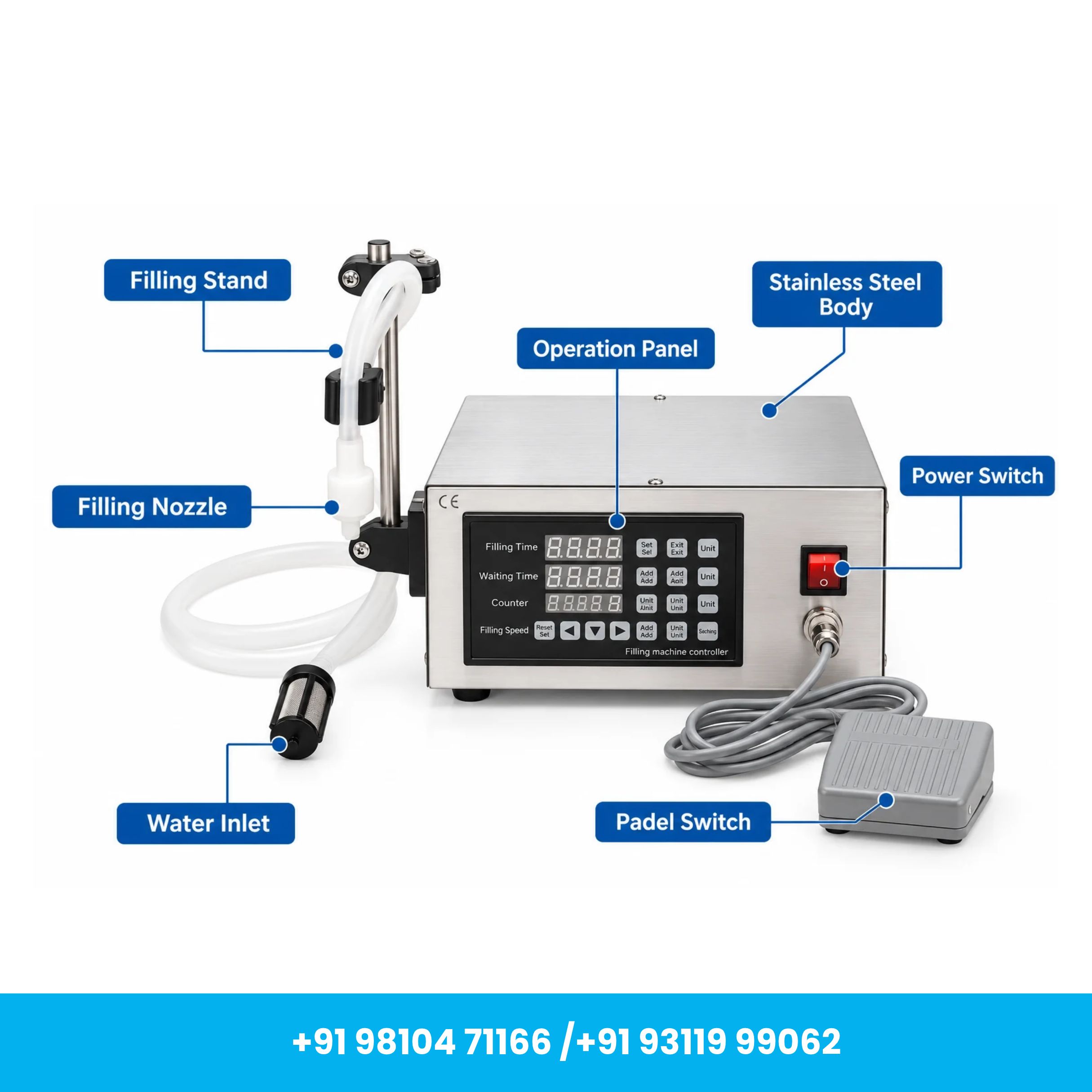

The Universal Seal™ Single Head Digital Liquid Filling Machine is a compact, efficient and easy-to-operate solution designed for accurate filling of free-flowing liquids into bottles, jars and other suitable containers. Equipped with a digital control system and a single filling nozzle, this machine is suitable for small and medium-scale liquid packaging operations.

Featuring an adjustable filling capacity of 10ml to 1000ml and a specified filling accuracy of ±2%, the machine helps maintain consistent dispensing quantities while reducing liquid wastage.

Its electric mini-pump system controls the filling operation through adjustable timing and motor speed settings. The machine also offers automatic and manual operating modes, an anti-drip function, power-off memory and automatic counting, making it a convenient solution for everyday liquid filling requirements.

Built with a durable stainless steel body and weighing approximately 2 kg, this machine is compact and practical for businesses with limited workspace.

It is suitable for filling compatible low-viscosity liquids such as water, juice, tea, rose water and other free-flowing products.

Key Features

1. Adjustable Filling Capacity: Supports liquid filling quantities ranging from 10ml to 1000ml, suitable for different bottle and container sizes.
2. High Filling Accuracy: Offers a specified filling accuracy of ±2%, helping maintain consistent fill levels and minimize wastage.
3. Single Head Filling System: Equipped with one filling nozzle for controlled dispensing of free-flowing liquids.
4. Digital Filling Control: Uses an electric mini-pump with adjustable filling time and motor speed for convenient operation.
5. Automatic & Manual Modes: Allows users to select the operating mode according to production requirements.
6. Anti-Drip Function: Helps minimize dripping after dispensing, supporting cleaner filling operations.
7. Power-Off Memory: Retains supported machine settings after the power is switched off for convenient reuse.
8. Automatic Counting Function: Helps operators track filling cycles during production.
9. Easy Manual Dial Adjustment: Features a user-friendly number dial for convenient setting adjustments.
10. Stainless Steel Construction: Durable stainless steel body designed for regular commercial use.
11. Compact & Lightweight: Weighing approximately 2 kg, the machine is easy to position and suitable for tabletop operations.
12. Easy Cleaning & Maintenance: Practical design supports regular cleaning and routine inspection.

Spare Parts & Accessories

The machine is supplied with the following accessories:

• Basic Allen Keys
• Foot Pedal
• Power Cable
• Suction and Dispensing Nozzle

Applications

The Single Head Digital Liquid Filling Machine is suitable for various industries and liquid packaging requirements.

1. Food & Beverage Industry

Suitable for filling compatible free-flowing liquids such as water, juice, tea and other low-viscosity beverages into bottles and containers.

2. Cosmetics & Personal Care Industry

Can be used for filling suitable liquid cosmetic products, including rose water and other water-like personal care liquids.

3. Pharmaceutical Industry

Useful for dispensing compatible low-viscosity liquid products in applications where the equipment meets the required hygiene, accuracy and production standards.

4. Laboratory Applications

Suitable for dispensing compatible liquid samples and solutions into laboratory containers.

5. Small-Scale Packaging Businesses

Ideal for businesses requiring adjustable filling quantities, convenient operation and consistent liquid dispensing for small production batches.

How to Use

Step 1 – Machine Setup

Place the machine on a stable, flat surface and connect it to the appropriate electrical power supply.

Step 2 – Prepare the Liquid

Ensure the liquid is compatible with the machine. Check the suction tube and filling nozzle for blockages or residue.

Step 3 – Adjust Filling Settings

Use the digital controls and manual number dial to adjust the filling quantity and operating settings according to your requirements.

Step 4 – Position the Container

Place the empty bottle or container directly beneath the filling nozzle.

Step 5 – Start the Filling Process

Select automatic or manual mode. Use the foot pedal or the appropriate machine control to initiate the filling operation.

Step 6 – Monitor Filling

Observe the filling process and verify the dispensed quantity. Adjust the settings if required.

Step 7 – Stop & Clean

After completing the filling operation, switch off the machine and clean the nozzle, tubing and other liquid-contact components.

Maintenance & Care

• Regular Cleaning: Clean the filling nozzle, suction tube and dispensing components after use to prevent residue buildup.
• Inspect Tubing & Nozzles: Check hoses, fittings and nozzles regularly for wear, leakage or blockages.
• Electrical Safety: Inspect the power cable, switches and electrical connections periodically.
• Filling Accuracy Checks: Verify dispensing quantities regularly and adjust the machine settings when necessary.
• Proper Storage: Keep the machine in a clean, dry and well-ventilated environment when not in use.
• Replace Damaged Components: Replace worn or damaged parts promptly to maintain reliable performance.

Important Note

Not suitable for acidic, corrosive or incompatible liquids, including thinner and similar solvents.

This machine is primarily designed for free-flowing liquids with water-like viscosity and without solid particles.

Actual filling accuracy and performance may vary depending on liquid viscosity, filling quantity and operating conditions.

For food, beverage or pharmaceutical applications, verify the suitability of all liquid-contact components and applicable hygiene requirements before use.
