Universal Seal™ Single Head Digital Liquid Filling Machine – 5ml to 3500ml

Product Description

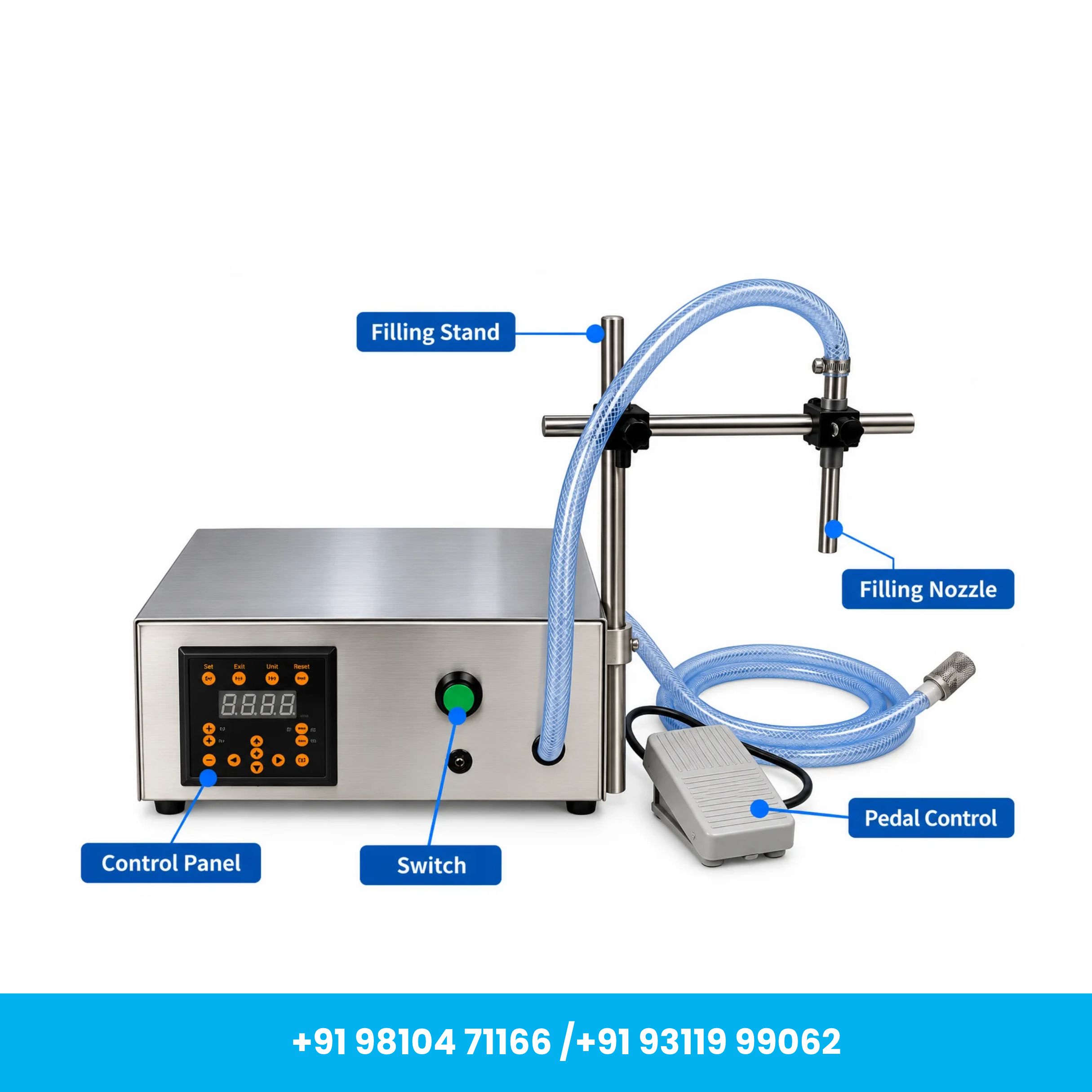

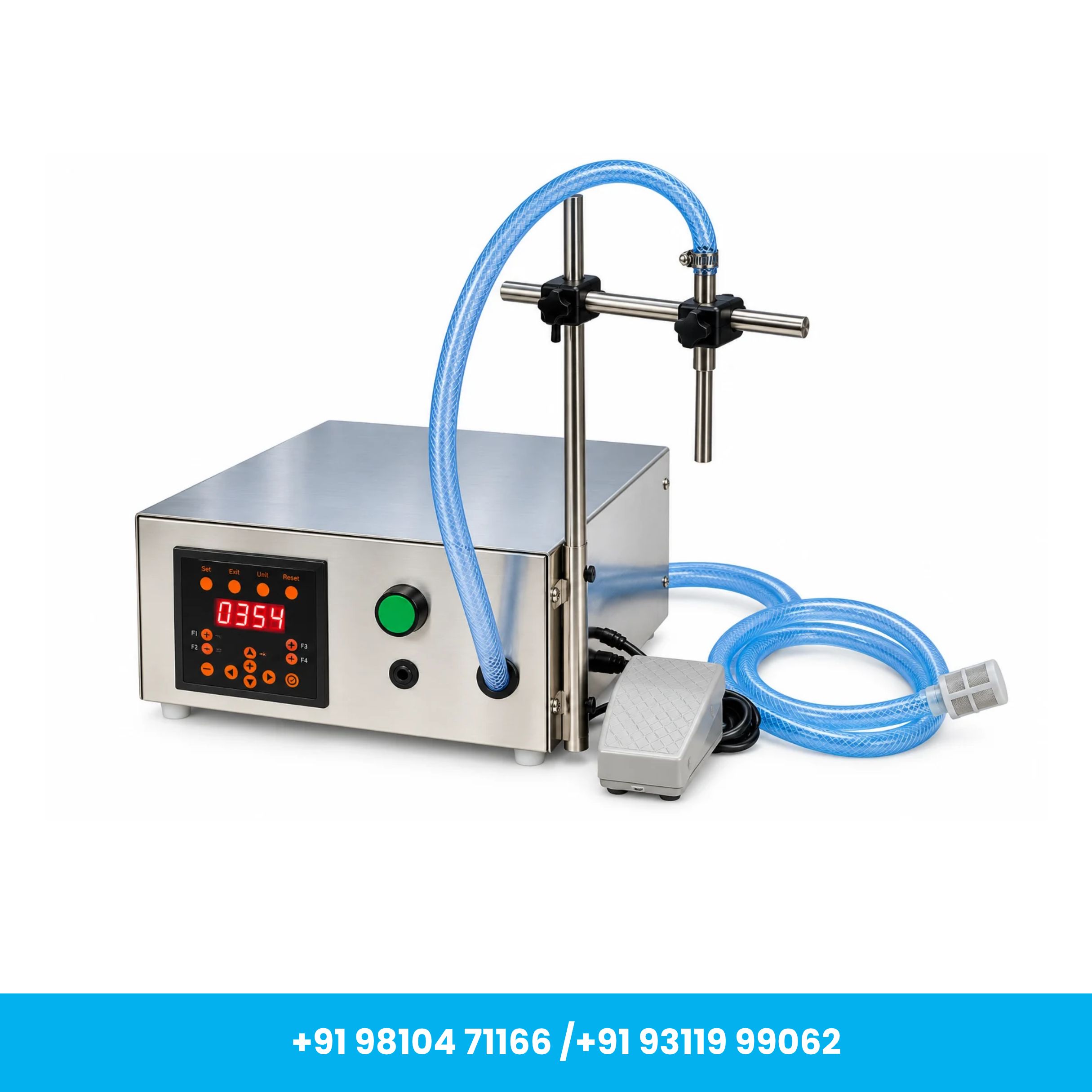

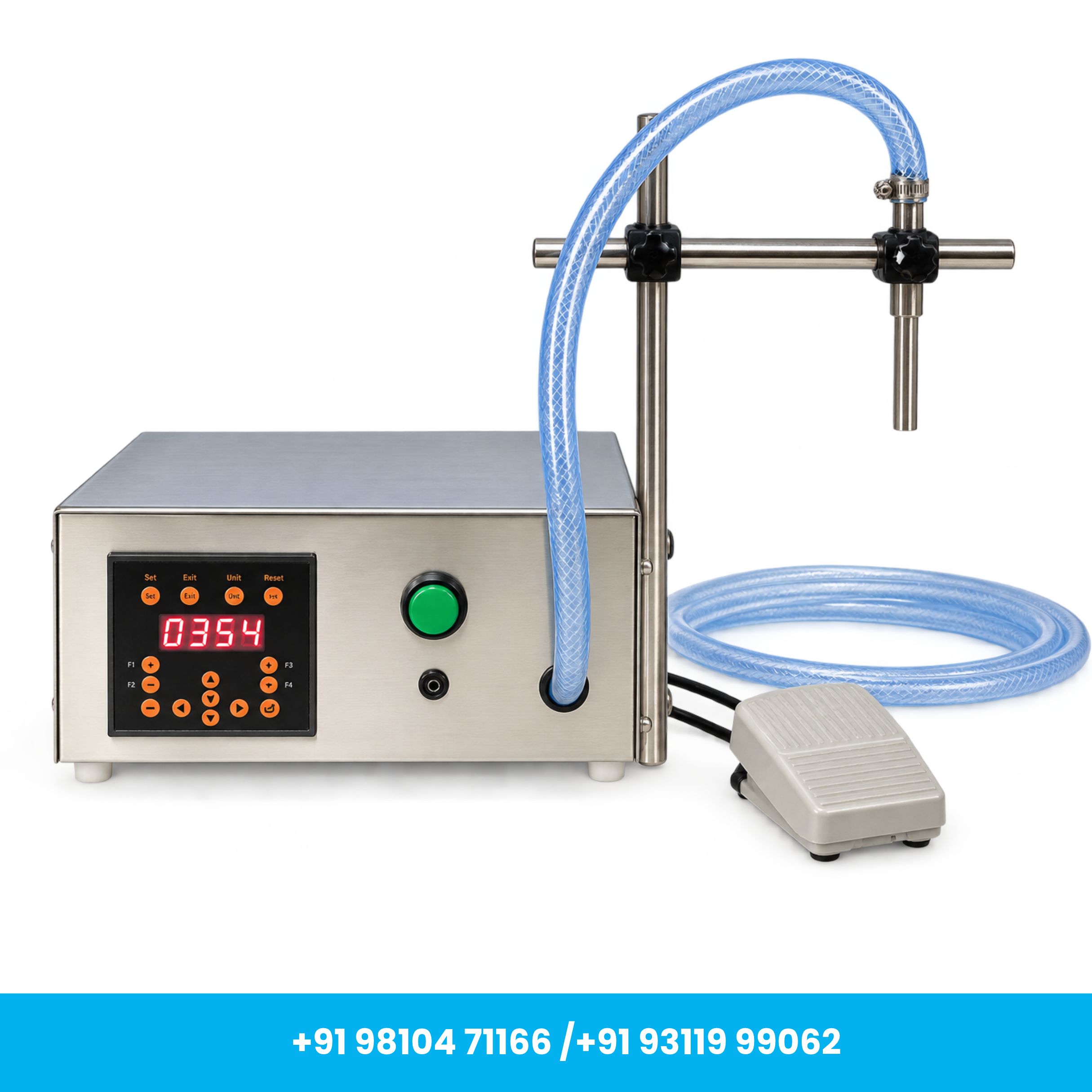

The Universal Seal™ Single Head Digital Liquid Filling Machine is a compact and efficient solution designed for accurate filling of free-flowing liquids into bottles, jars, vials and other suitable containers. Equipped with a CNC controller, LCD display and single filling nozzle, this machine provides convenient operation and consistent liquid dispensing for various packaging applications.

Featuring an adjustable filling range of 5ml to 3500ml and filling accuracy of ±2%, the machine is suitable for small and medium-scale production requirements. Its durable stainless steel body offers reliable performance, while the automatic and manual operating modes provide flexibility for different filling needs.

Operating on a 220V electrical power supply, this machine is suitable for businesses in the food and beverage, cosmetics, pharmaceutical and other industries handling compatible free-flowing liquids.

Key Features

1. CNC Digital Controller: Equipped with a digital control system for convenient adjustment and management of liquid filling operations.
2. Adjustable Filling Range: Supports liquid filling quantities from 5ml to 3500ml, making it suitable for different container sizes.
3. High Filling Accuracy: Provides a specified filling accuracy of ±2%, helping maintain consistent filling quantities and reduce product wastage.
4. Single Nozzle Filling System: Designed with a single filling nozzle for controlled liquid dispensing into bottles and containers.
5. Automatic & Manual Operation: Offers flexible operating modes to accommodate different production requirements.
6. LCD Display: Features an easy-to-read display for monitoring and adjusting machine settings.
7. Automatic Counting Function: Includes a counting feature to help operators monitor filling cycles during production.
8. Stainless Steel Construction: Features a durable stainless steel body suitable for regular packaging operations.
9. Compact & Lightweight Design: Weighing approximately 4 kg, the machine is convenient to position and operate in limited workspaces.
10. Easy Cleaning & Maintenance: Designed for convenient routine cleaning and maintenance to support reliable operation.

Applications

The Single Head Digital Liquid Filling Machine is suitable for a variety of liquid filling applications, including:

• Food & Beverage Industry: Filling water and other compatible free-flowing beverage products into bottles and containers.
• Cosmetics Industry: Suitable for dispensing compatible liquid cosmetic and personal care products.
• Pharmaceutical Industry: Can be used for compatible non-sterile liquid filling applications where the equipment meets the required production standards.
• Chemical Industry: Suitable for selected non-corrosive, water-like industrial liquids.
• Laboratory Applications: Useful for dispensing compatible liquid samples into suitable containers.
• Small Packaging Businesses: Ideal for businesses requiring flexible, small-batch liquid filling operations.

How to Use

Step 1 – Machine Setup

Place the machine on a stable, level surface and connect it to a suitable 220V power supply.

Step 2 – Prepare the Liquid

Ensure the liquid is compatible with the machine. Check that the tubing, nozzle and liquid flow path are clean and free from blockages.

Step 3 – Adjust Filling Settings

Use the CNC control panel to configure the required filling quantity and other available operating settings.

Step 4 – Position the Container

Place the empty bottle or container directly beneath the filling nozzle.

Step 5 – Start the Filling Process

Select the required automatic or manual operating mode and initiate the filling cycle using the appropriate control.

Step 6 – Monitor the Operation

Observe the LCD display and filling process to ensure the machine is operating correctly.

Step 7 – Cleaning After Use

Switch off the machine and clean the filling nozzle, tubing and other liquid-contact components according to the operating instructions.

Maintenance & Care

• Regular Cleaning: Clean the machine and liquid-contact components after use to prevent residue buildup and contamination.
• Electrical Inspection: Periodically inspect the power cable, switches and electrical connections for damage.
• Nozzle Maintenance: Keep the filling nozzle clean and free from blockages.
• Tubing Inspection: Check the tubing and connections regularly for leakage, wear or damage.
• Proper Storage: Store the machine in a clean, dry and well-ventilated environment.
• Routine Performance Checks: Periodically verify the filling quantity to maintain consistent dispensing performance.

Important Note

Not suitable for acidic, corrosive or incompatible liquids, including thinner and similar solvents.

This machine is primarily designed for free-flowing liquids with water-like viscosity. Filling performance and accuracy may vary depending on liquid properties, operating settings and filling conditions.
