Universal Seal™ FR-900 Heavy Duty SS Vertical Continuous Band Sealer with Free Accessories

Description

The Universal Seal™ FR-900 Heavy Duty SS Vertical Continuous Band Sealer is a premium industrial packaging machine designed for fast, continuous and reliable sealing of high-grade and laminated pouches. Its vertical configuration makes it particularly suitable for filled pouches that need to remain upright while passing through the sealing process.

Built with a durable stainless steel body, the FR-900 is designed for demanding commercial and industrial packaging operations. It features a digital controller, powerful 750W operation, adjustable sealing speed of 0–12 m/min, 6–12 mm sealing width, and an adjustable temperature range of 0–300°C.

The machine provides height adjustment of up to approximately 12 inches, making it suitable for different pouch sizes and packaging requirements. Its integrated conveyor supports a loading capacity of up to approximately 4 kg, while the machine is designed for approximately 14–17 hours of non-stop operation under suitable operating conditions.

The FR-900 Vertical Band Sealer is an efficient solution for businesses looking to increase packaging productivity while maintaining consistent sealing quality. It is suitable for applications across food, spices, seeds, pharmaceuticals, cosmetics, FMCG, chemicals, retail, e-commerce and general manufacturing industries.

Key Features

Heavy Duty Stainless Steel Body: Premium SS construction provides excellent durability and is suitable for regular industrial and commercial packaging operations.

Vertical Continuous Sealing: Designed to seal filled pouches continuously while maintaining them in an upright position during the sealing process.

Digital Controller: User-friendly digital controls allow convenient adjustment and monitoring of machine settings.

750W Power: Provides reliable performance for continuous packaging and sealing requirements.

Adjustable Sealing Speed: Variable 0–12 m/min sealing speed allows operators to adjust production according to pouch material and packaging requirements.

6–12 mm Sealing Width: Provides a strong and consistent sealing band on compatible high-grade and laminated pouches.

Adjustable Temperature: Temperature can be controlled from 0–300°C according to the pouch material, thickness and sealing requirements.

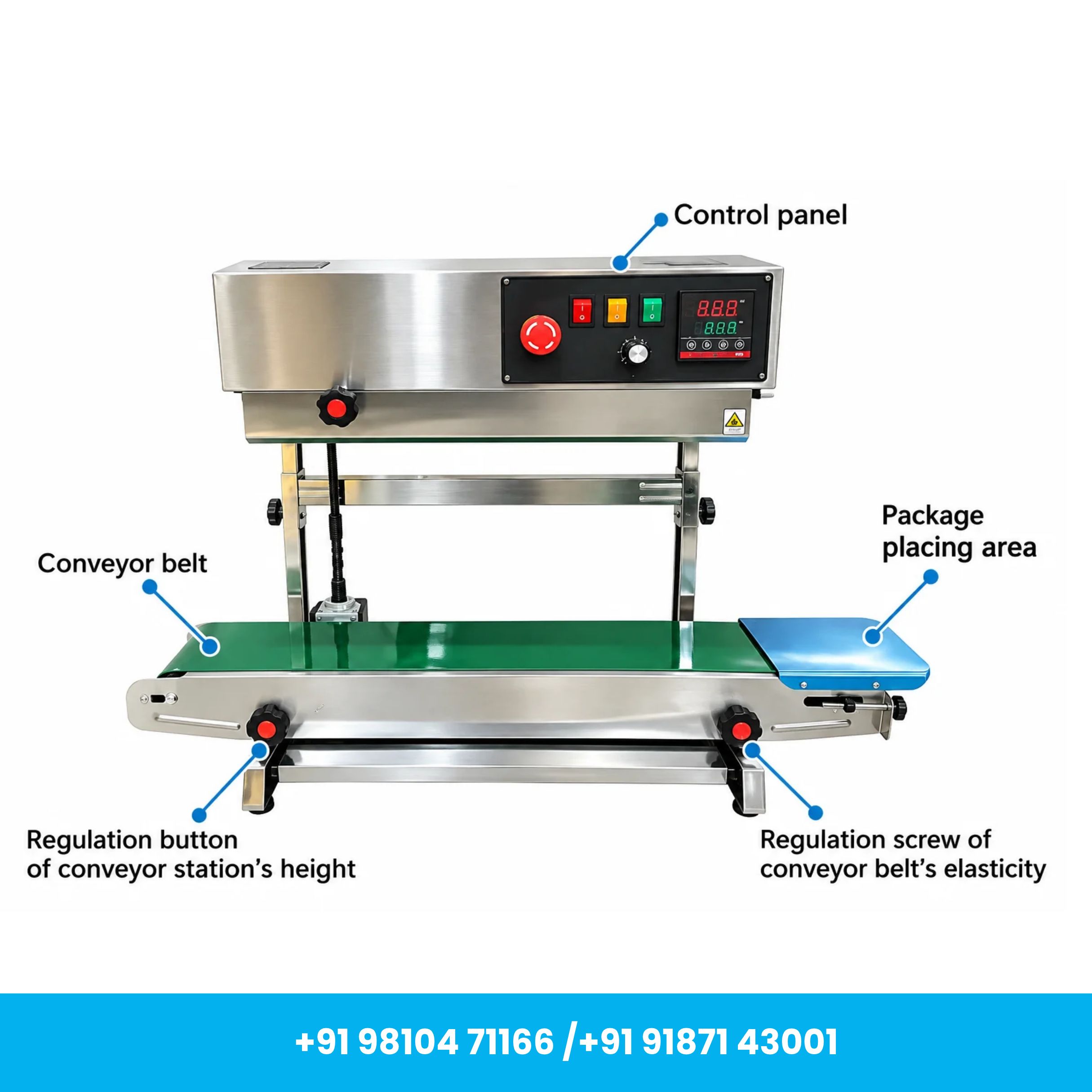

Adjustable Height: Offers height adjustment of up to approximately 12 inches for handling different pouch sizes.

Integrated Conveyor System: Supports a maximum conveyor loading capacity of approximately 4 kg, subject to proper weight distribution.

Extended Running Capability: Designed for approximately 14–17 hours of non-stop operation under appropriate working conditions and recommended maintenance.

Easy Operation: Simple controls and continuous conveyor operation help reduce manual effort and improve packaging productivity.

Free Accessories

The machine is supplied with useful accessories for operation and routine requirements:

• 5 Pieces Teflon Belts
• Conveyor Belt Extension
• Screwdriver
• Packaging Pouch Adjustment Bar

Applications

Food & Spice Packaging: Suitable for compatible pouches containing snacks, grains, spices, seeds, powders, dry fruits, frozen products and other packaged food items.

Pharmaceutical & Healthcare Packaging: Suitable for compatible pouch-sealing applications involving pharmaceutical, healthcare and selected medical products.

Cosmetics & Personal Care: Can be used for compatible packaging of creams, oils, cosmetics and other personal-care products.

Chemical & Industrial Packaging: Suitable for compatible heat-sealable pouches used for selected chemical and general industrial products.

Retail & E-Commerce: Useful for sealing compatible packaging bags and pouches used for consumer goods, retail products and e-commerce fulfilment.

FMCG & Manufacturing: Suitable for businesses requiring continuous pouch sealing as part of regular production and packaging operations.

How to Use

Machine Setup: Place the FR-900 Vertical Band Sealer on a stable and level working surface. Ensure that the conveyor, sealing assembly and adjustment components are correctly installed.

Power Connection: Connect the machine to a suitable 220V, 50Hz electrical supply and switch on the main power.

Adjust the Height: Set the machine height according to the dimensions and sealing position of the pouch.

Set Temperature & Speed: Select the appropriate sealing temperature and conveyor speed according to the pouch material and thickness. Allow sufficient time for the machine to reach the required operating temperature.

Prepare the Pouches: Ensure the sealing edge is clean, dry and free from product residue, oil, moisture or wrinkles.

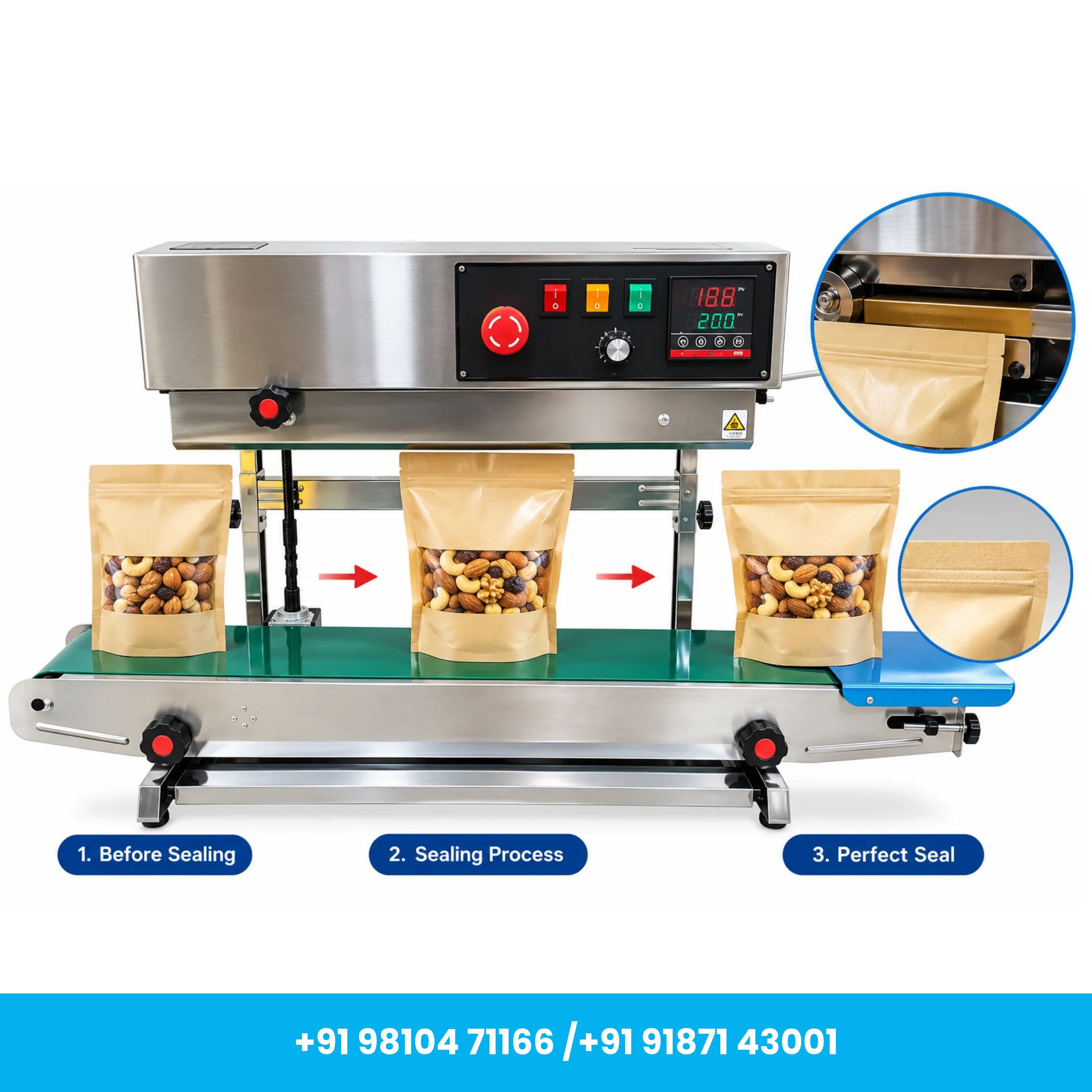

Start Sealing: Place the filled pouch upright on the conveyor and correctly align its open edge with the sealing section.

Continuous Operation: The conveyor automatically carries the pouch through the heating, sealing and cooling sections for continuous sealing.

Inspect the Seal: Collect the pouch from the output side and inspect the seal for proper adhesion and consistency. Adjust temperature or speed when necessary.

Important Notes

• Recommended for high-grade and laminated pouches compatible with heat sealing.
• Conveyor belt colour may vary depending on the available production batch.
• Actual sealing performance depends on the pouch material, thickness, temperature and conveyor speed.
• Always perform a test seal before starting bulk production with a new pouch material.
• Online-payment discounts, when available, should be confirmed at the time of purchase.

Maintenance

Regular Cleaning: Clean the conveyor, sealing area and machine body regularly to prevent dust and packaging residue buildup.

Inspect Teflon Belts: Check the Teflon belts periodically for wear or damage and replace them when required.

Check Sealing Components: Inspect the heating components, sealing bands and rollers to maintain consistent sealing performance.

Maintain Conveyor Alignment: Ensure that the conveyor belt runs smoothly and remains correctly aligned.

Electrical Inspection: Periodically inspect the power cable, switches and visible electrical connections for damage or loose connections.

Power Off Before Maintenance: Always switch off and unplug the machine before cleaning, adjustment or maintenance.

Brand: Universal Seal™

Model: FR-900

Machine Type: Heavy Duty SS Vertical Continuous Band Sealer

Body Material: Stainless Steel

Product Origin: Imported
