Universal Seal™ 5–50ml Semi-Automatic Pneumatic Liquid & Paste Filling Machine – Single Nozzle

Product Description

The Universal Seal™ 5–50ml Semi-Automatic Pneumatic Liquid & Paste Filling Machine is a compact and efficient filling solution designed for accurate dispensing of compatible liquids and pastes into bottles, jars, tubes and other suitable containers.

Equipped with a pneumatic piston filling system, this machine provides an adjustable filling capacity of 5ml to 50ml, making it suitable for small-volume packaging applications in the food, cosmetics, pharmaceutical and chemical industries.

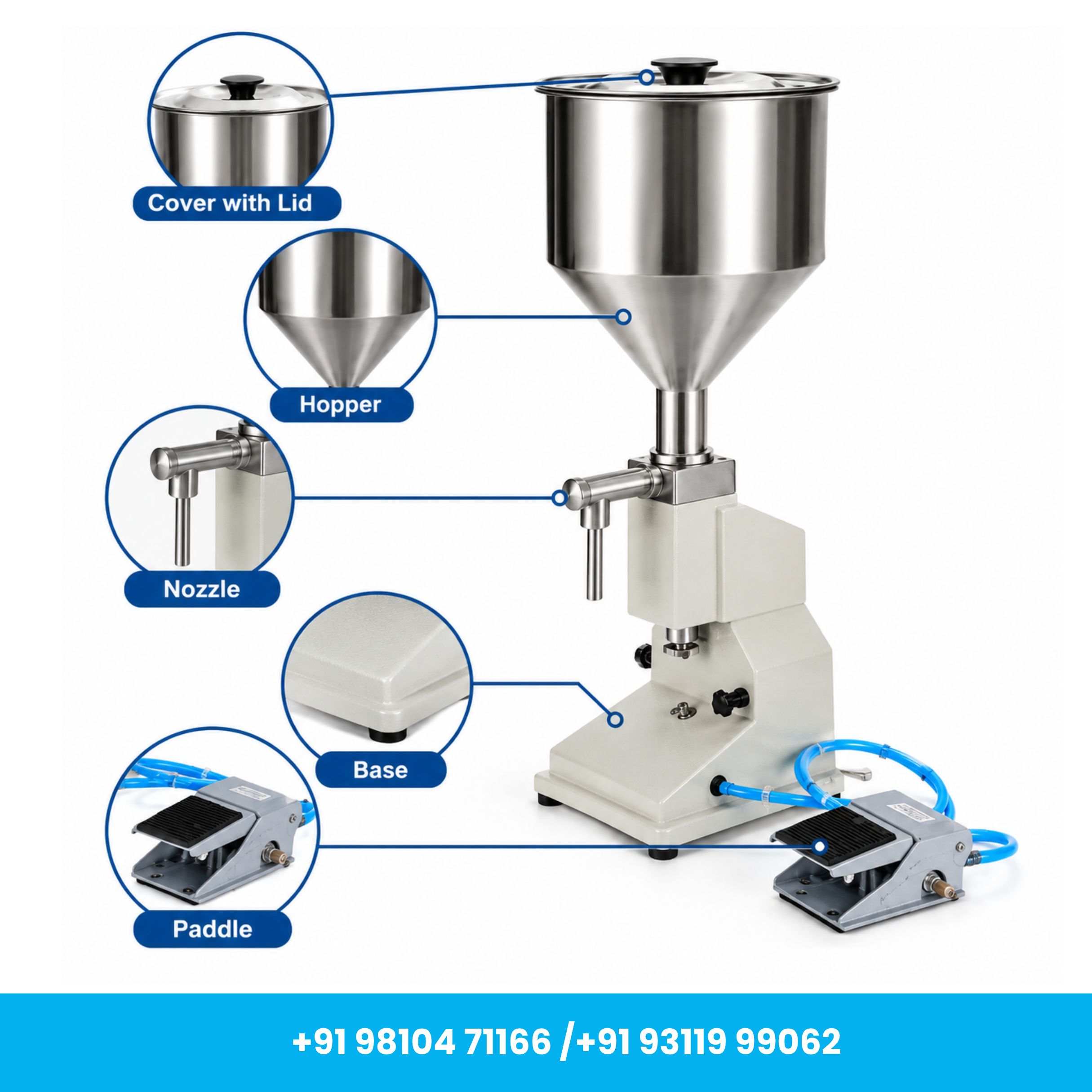

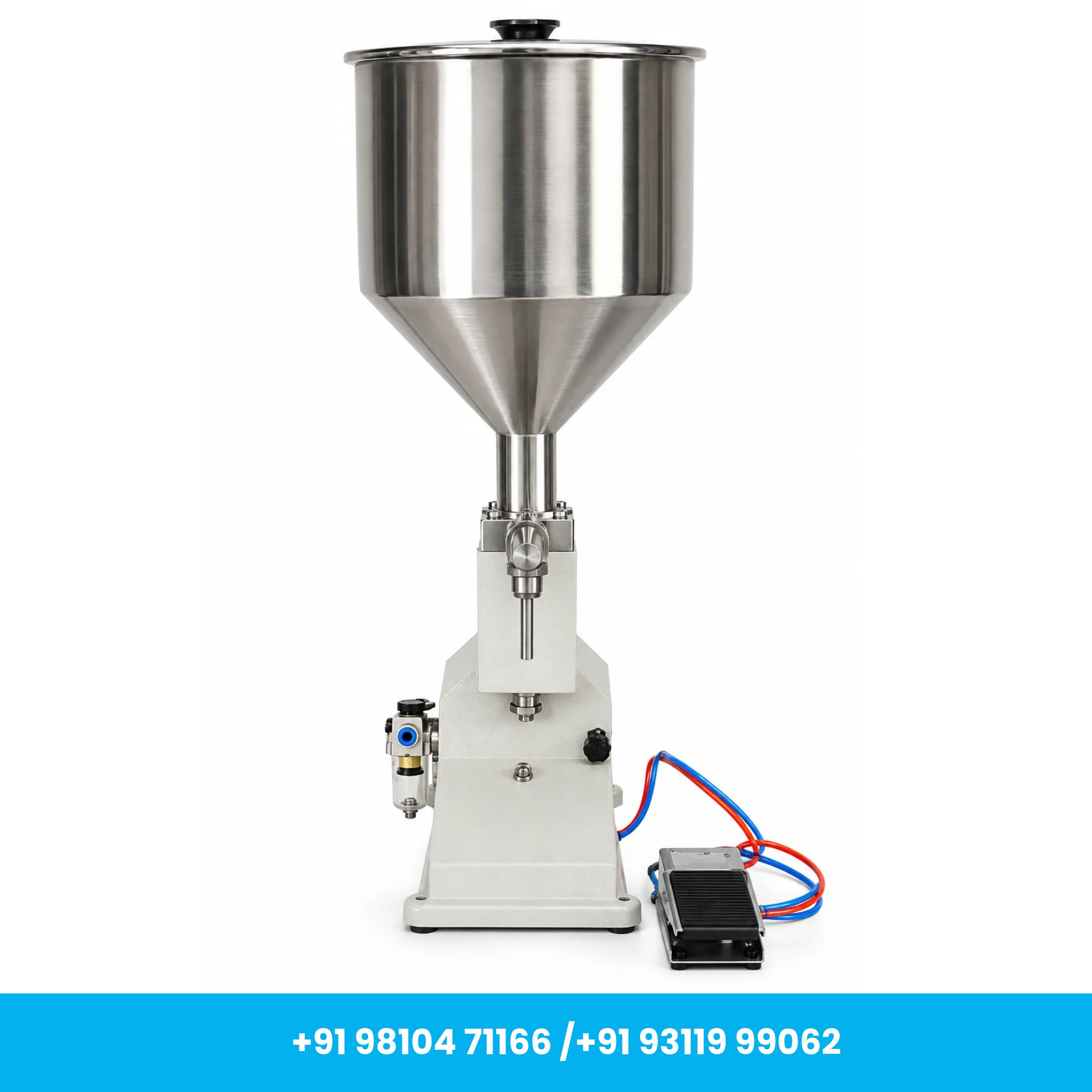

The machine features a 10-litre stainless steel hopper, a single filling nozzle and an adjustable filling mechanism. Its piston and hopper components are manufactured using SS304 stainless steel and PTFE materials, as specified, to support durability and consistent filling performance.

With a specified filling accuracy of ±0.2–1ml and an output capacity of 600–900 bottles per hour, the machine helps improve filling consistency while reducing manual effort and product wastage.

Its compact design, adjustable filling volume and anti-leakage nozzle system make it a practical solution for small and medium-scale packaging businesses.

Key Features

1. Adjustable Filling Capacity: Supports filling volumes from 5ml to 50ml, suitable for different small-sized containers.
2. Pneumatic Piston Filling System: Uses compressed air to operate the piston mechanism for controlled dispensing of compatible liquids and pastes.
3. Single Nozzle Filling: Equipped with one filling nozzle for convenient and accurate filling operations.
4. High Filling Accuracy: Offers a specified filling accuracy of ±0.2–1ml, helping maintain consistent filling quantities.
5. Adjustable Filling Speed: Allows operators to adjust the filling speed according to product characteristics and production requirements.
6. 10-Litre Stainless Steel Hopper: Features a large hopper for convenient product storage during filling operations.
7. SS304 & PTFE Components: Piston and hopper components use stainless steel and PTFE materials as specified for the machine.
8. Anti-Leakage Filling Nozzle: Designed to minimize dripping and product leakage during filling operations.
9. Semi-Automatic Operation: Supports operator-controlled filling, typically activated through a foot pedal.
10. Compact & Practical Design: Suitable for businesses requiring a space-efficient filling solution.
11. Production Capacity: Offers a specified output of 600–900 bottles per hour, depending on product viscosity, filling volume and operating conditions.
12. Easy Cleaning & Maintenance: Designed for convenient routine cleaning and inspection of liquid-contact components.

Applications

The 5–50ml Pneumatic Liquid & Paste Filling Machine is suitable for various small-volume filling applications.

1. Cosmetics & Personal Care Industry

Suitable for filling compatible cosmetic products such as creams, lotions, gels and other liquid or paste formulations into bottles, jars and containers.

2. Food & Beverage Industry

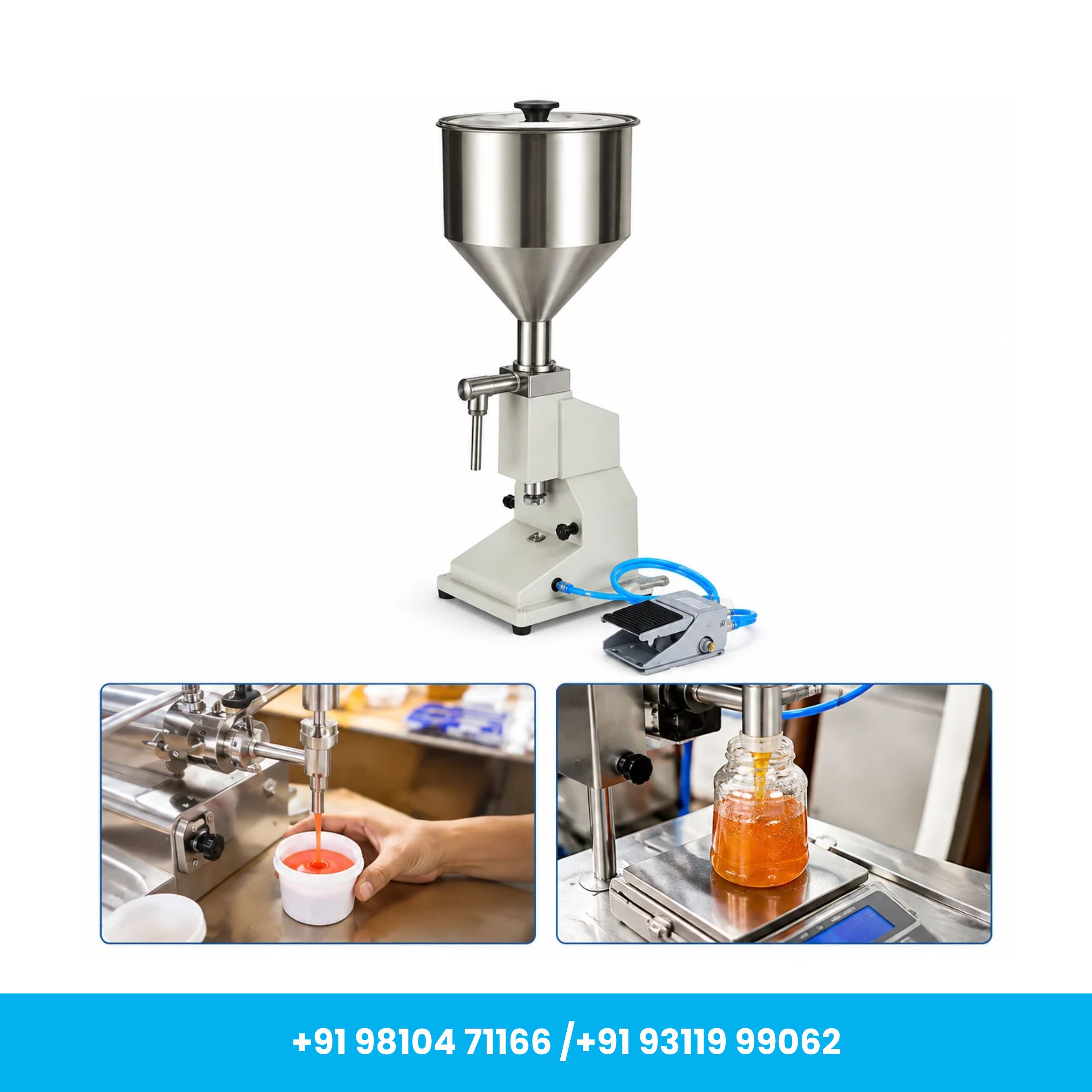

Can be used for filling suitable food products such as sauces, syrups, liquid condiments and other compatible liquid or paste products.

3. Pharmaceutical Industry

Suitable for dispensing compatible pharmaceutical liquids and paste formulations where the equipment meets the required hygiene and production standards.

4. Chemical Industry

Can be used for selected compatible industrial liquids and paste products, subject to chemical compatibility with the machine's contact materials.

5. Small-Scale Manufacturing

Ideal for small and medium-sized businesses requiring adjustable filling quantities for regular production and packaging operations.

How to Use

Step 1 – Machine Setup

Place the machine on a stable, flat surface. Connect it to a suitable electrical power supply and an external air compressor.

Step 2 – Connect the Air Compressor

Set the compressor and air regulator to the required working pressure of 0.4–0.6 MPa (58–87 PSI).

Step 3 – Prepare the Product

Ensure the liquid or paste is properly mixed and suitable for the machine. Fill the stainless steel hopper with the required product.

Step 4 – Adjust Filling Settings

Set the required filling volume between 5ml and 50ml using the adjustable mechanism. Adjust the filling speed according to the product and container requirements.

Step 5 – Perform a Test Fill

Conduct a trial filling operation and measure the dispensed quantity. Make adjustments if necessary.

Step 6 – Start Filling

Position the bottle, jar or container beneath the nozzle. Activate the filling mechanism using the appropriate control or foot pedal.

Step 7 – Monitor the Process

Check the filling quantity, nozzle performance and container positioning regularly to maintain consistent operation.

Step 8 – Cleaning After Use

Switch off the machine, disconnect the electrical supply and safely release the compressed air pressure before cleaning the filling components.

Maintenance & Care

• Regular Cleaning: Clean the hopper, piston, nozzle and other product-contact components after use to prevent residue buildup.
• Inspect Seals & Components: Check the piston seals, fittings and nozzle regularly for wear or leakage.
• Air Pressure Inspection: Ensure the air compressor and regulator maintain the recommended working pressure.
• Nozzle Maintenance: Keep the filling nozzle clean and free from blockages.
• Filling Accuracy Checks: Perform periodic test fills to verify dispensing consistency.
• Proper Storage: Store the machine in a clean, dry environment when not in use.
• Routine Inspection: Inspect pneumatic connections and electrical components regularly to maintain safe operation.

Important Notes

1. External Air Compressor Required

This machine operates using pneumatic piston suction technology and requires an external air compressor with a working pressure of 0.4–0.6 MPa (58–87 PSI).

2. Not Suitable for Grease Filling

This machine is not recommended for grease filling applications.

3. Product Compatibility

Before filling liquids or pastes, verify their viscosity and compatibility with the nozzle, seals, stainless steel and PTFE components.

4. Filling Performance

Actual filling speed, accuracy and production output may vary depending on product viscosity, filling volume, air pressure and operating conditions.
