Universal Seal™ 50–500ml Semi-Automatic Pneumatic Single Nozzle Liquid Filling Machine

Product Description

The Universal Seal™ 50–500ml Pneumatic Single Nozzle Liquid Filling Machine is a compact, efficient, and reliable solution designed for accurate filling of free-flowing, low-viscosity liquids into bottles, jars, cans, and other suitable containers.

This semi-automatic liquid filling machine operates using a pneumatic piston filling system, ensuring consistent filling performance with minimal product wastage. With an adjustable filling capacity of 50–500ml and a production efficiency of 600–1500 bottles per hour, it is suitable for small and medium-scale liquid packaging operations.

The machine features 304 stainless steel and PTFE components, providing durability, corrosion resistance, and convenient cleaning. Its anti-drip filling nozzle helps prevent liquid leakage and ensures a clean filling process.

Designed for convenient operation, this pneumatic liquid filler allows users to adjust the filling volume and speed according to production requirements. Its space-saving construction makes it suitable for pharmaceutical, food and beverage, cosmetic, chemical, and laboratory applications.

Important Note: An external air compressor is required for operation and must be purchased separately.

Key Features

1. Adjustable Filling Capacity: Supports filling volumes from 50ml to 500ml for different bottle and container sizes.
2. Efficient Production: Delivers an output of approximately 600–1500 bottles per hour, depending on filling volume and operating conditions.
3. Pneumatic Piston Filling System: Provides consistent and controlled liquid dispensing.
4. High Filling Accuracy: Designed to maintain uniform filling quantities while reducing product wastage.
5. Single Nozzle Operation: Ideal for controlled filling of free-flowing liquids into individual containers.
6. 304 Stainless Steel Construction: Durable product-contact components designed for hygienic operation and easy maintenance.
7. Anti-Drip Filling Nozzle: Helps prevent leakage, dripping, and unnecessary liquid wastage.

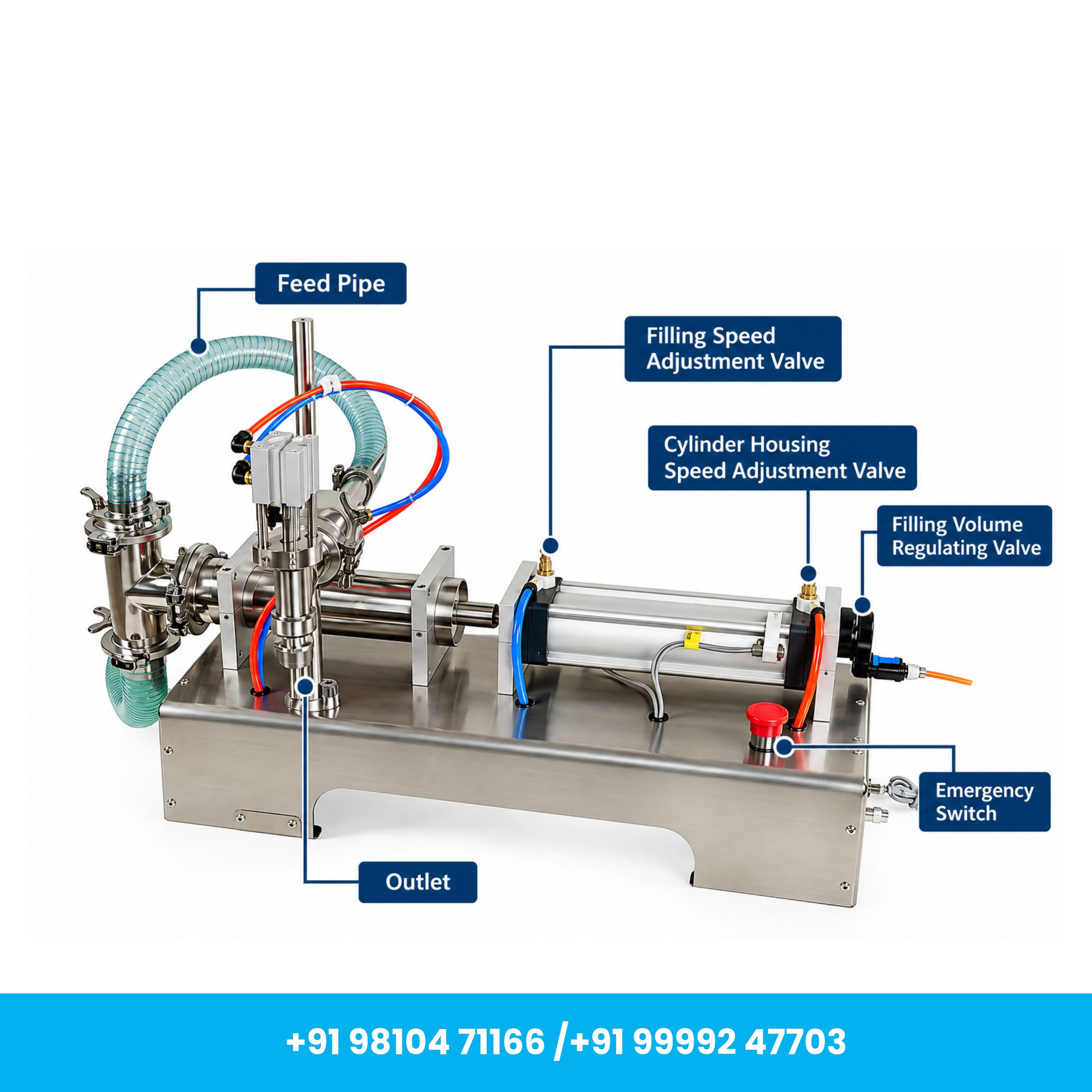

8. Adjustable Filling Speed: Allows operators to regulate filling speed according to liquid characteristics and production requirements.

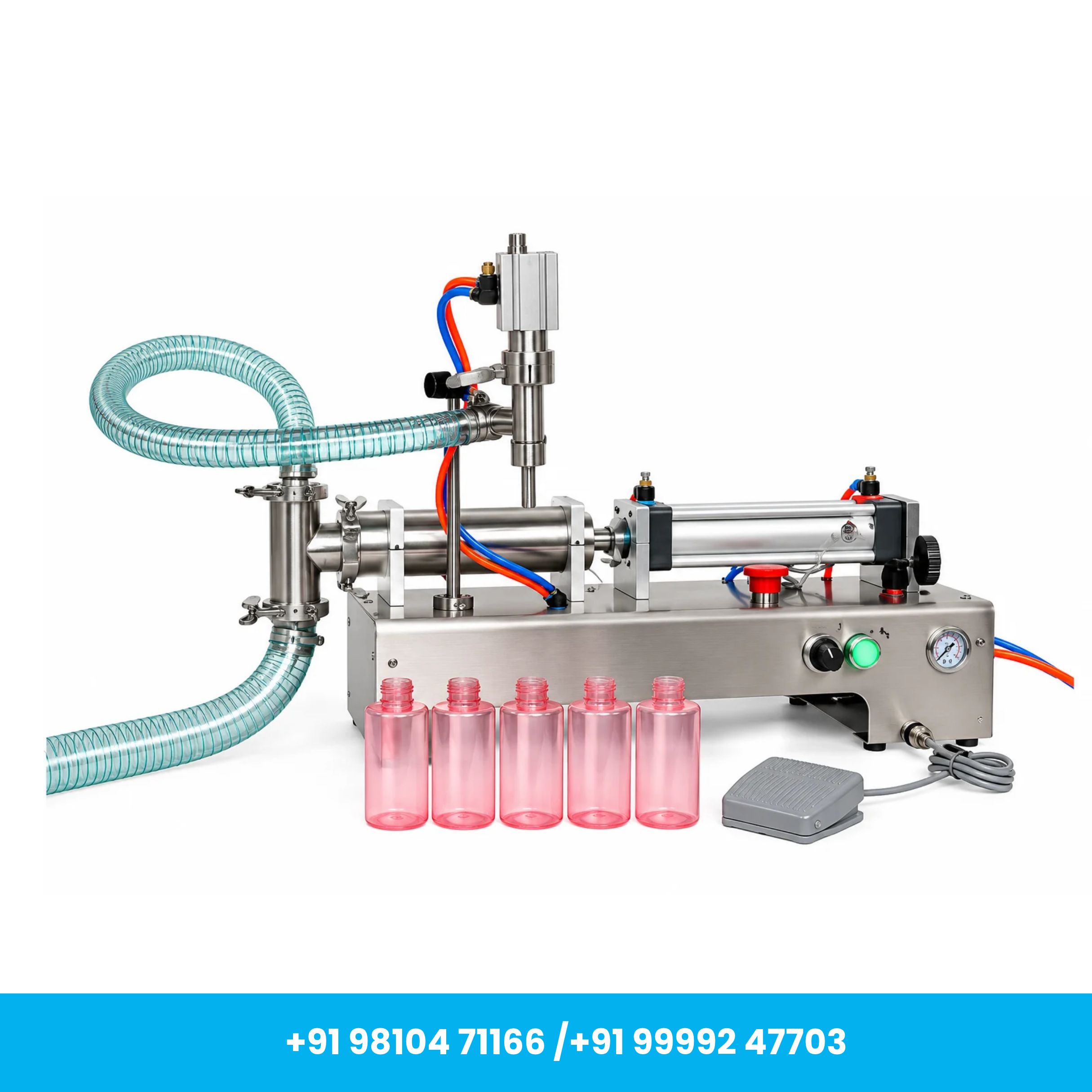

9. Compact & User-Friendly Design: Space-saving structure with convenient foot-pedal operation.
10. Versatile Container Compatibility: Suitable for bottles, jars, cans, and other compatible containers.

Applications

Pharmaceutical Industry

Suitable for filling low-viscosity pharmaceutical liquids, syrups, and medicinal solutions into bottles and other compatible containers, subject to applicable hygiene requirements.

Food & Beverage Industry

Ideal for filling free-flowing liquids such as water, juices, and other low-viscosity beverages into containers ranging from 50ml to 500ml.

Cosmetic Industry

Suitable for filling rose water, toners, and other water-like cosmetic liquids with consistent filling volumes.

Chemical Industry

Can be used for compatible low-viscosity chemical liquids and cleaning solutions, subject to material compatibility.

Laboratories

Useful for controlled dispensing and filling of liquid samples, solutions, and laboratory preparations.

Operating Instructions

Step 1 – Machine Preparation

• Position the machine on a clean, stable, and level surface.
• Connect a suitable external air compressor to the pneumatic system.
• Connect the electrical supply if required by the machine configuration.
• Ensure all product-contact components are clean before operation.

Step 2 – Filling Volume Adjustment

• Set the desired filling quantity between 50ml and 500ml.
• Adjust the filling speed according to the liquid characteristics.
• Perform a trial filling to verify the required volume.

Step 3 – Container Placement

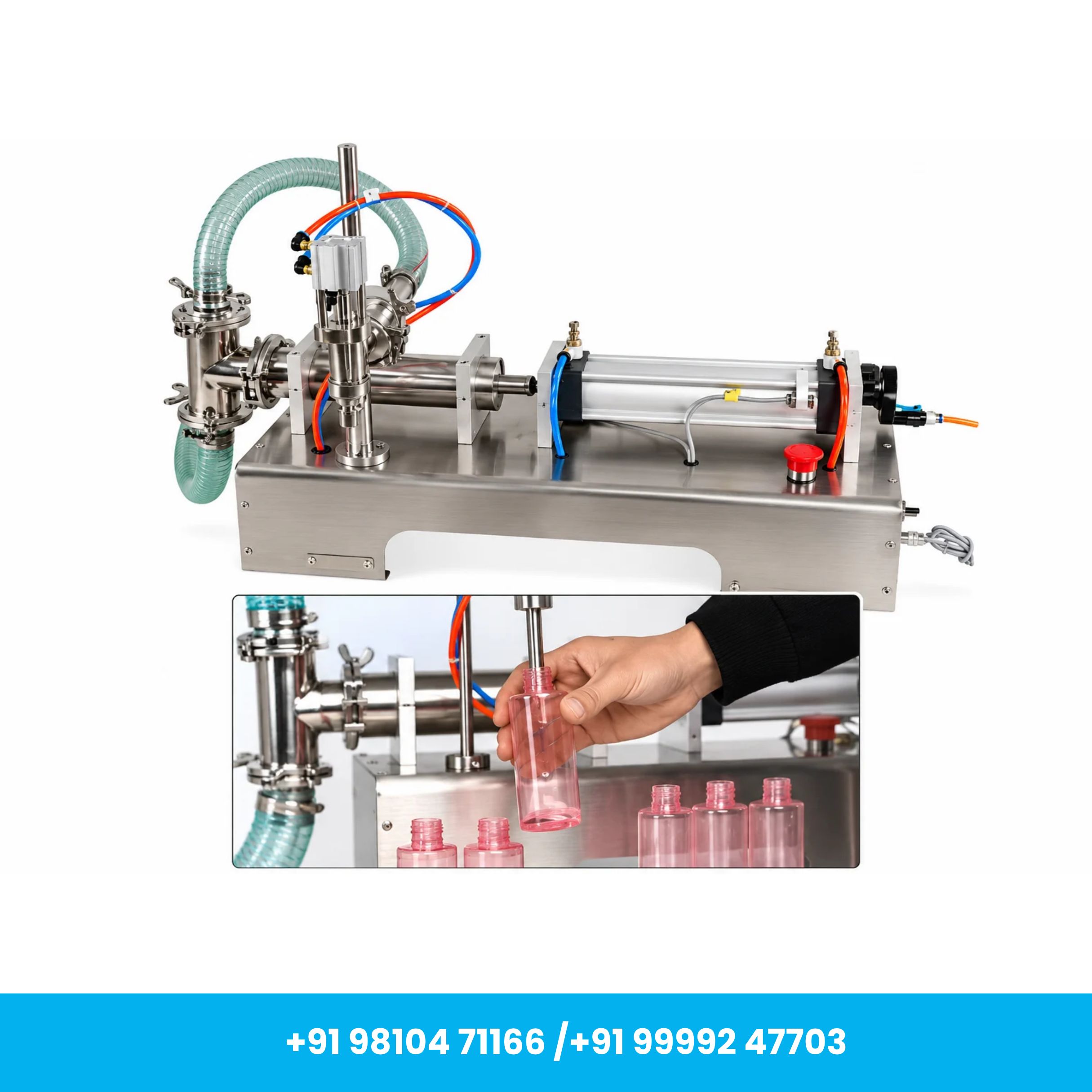

• Place the empty bottle, jar, or container directly beneath the filling nozzle.
• Ensure proper alignment to prevent spillage.

Step 4 – Filling Operation

• Activate the filling cycle using the foot pedal.
• Allow the machine to dispense the preset quantity.
• Remove the filled container and position the next empty container.

Step 5 – Cleaning & Maintenance

• Clean the filling nozzle and product-contact components regularly.
• Check pneumatic connections for air leakage.
• Disconnect electrical power and release compressed air pressure before maintenance.
• Follow the manufacturer's cleaning and maintenance
