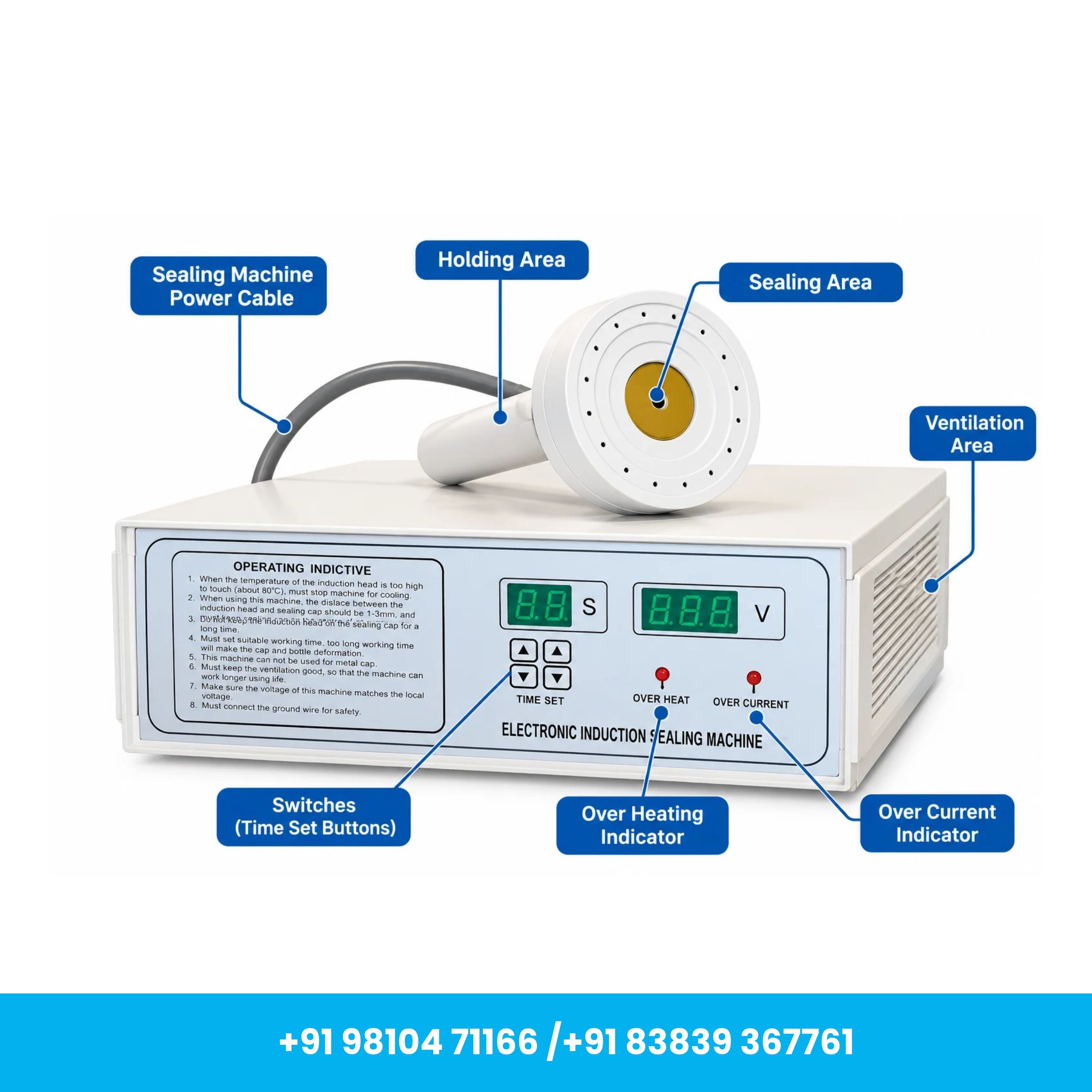

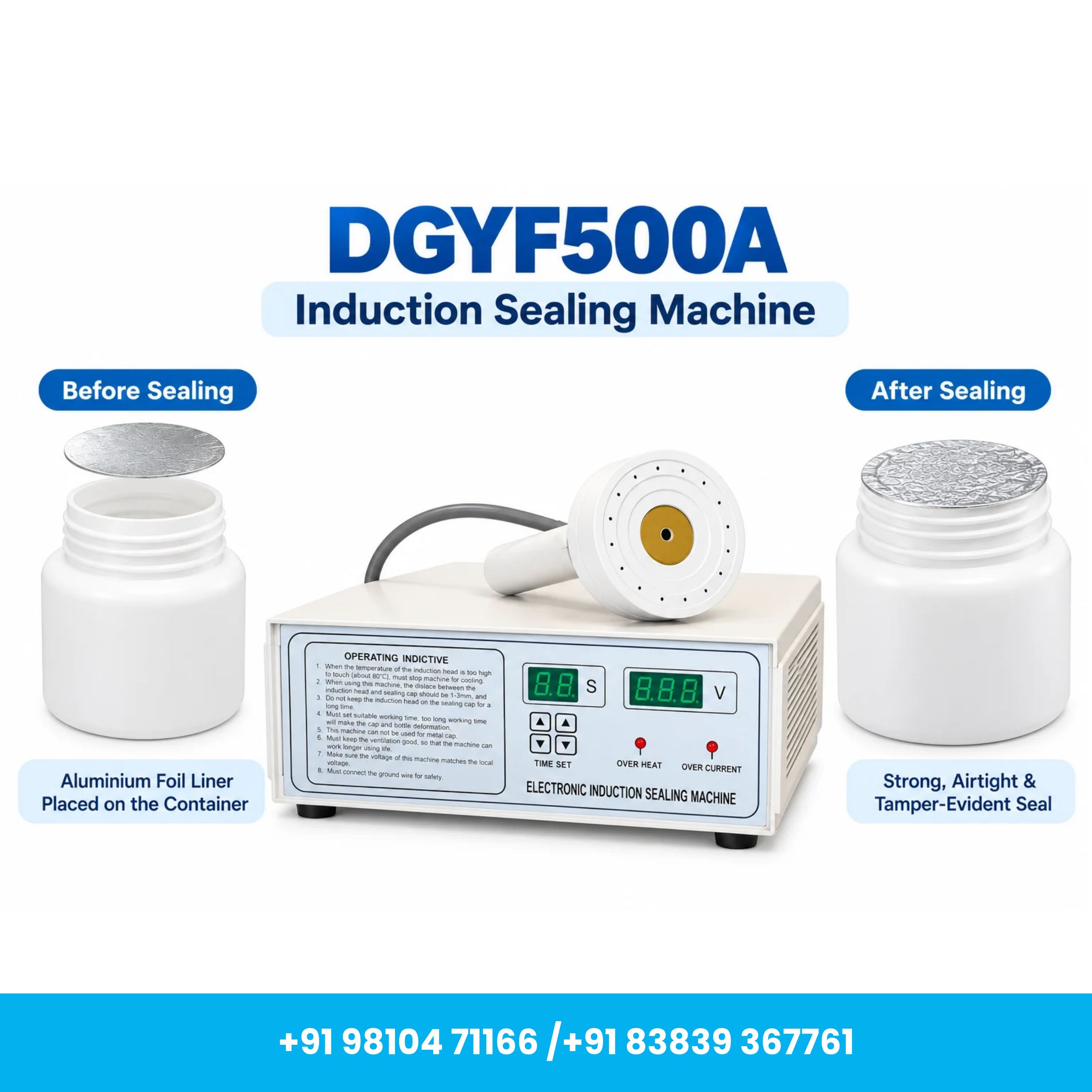

Universal Seal™ DGYF-500A Portable Induction Sealing Machine

Description

The Universal Seal™ DGYF-500A Portable Induction Sealing Machine is a compact and efficient manual sealing solution designed for wad sealing of compatible bottles and containers. Using electromagnetic induction technology, the machine generates controlled heat to activate the compatible induction wad inside the bottle cap, creating a secure seal at the container opening.

With an adjustable sealing diameter of 20–100 mm, the DGYF-500A is suitable for a wide range of compatible containers made from ABS, PE (HDPE/LDPE), PET, PP, PS, PVC and glass. Its compact and portable construction makes it particularly useful for small and medium-scale production, laboratory work, retail packaging and businesses requiring flexible bottle-sealing operations.

Powered by a 500W system and supporting 110V/220V, 50/60Hz, the machine combines convenient manual operation with a lightweight design of approximately 2.5 kg. It is suitable for applications across food, pharmaceutical, cosmetics, chemical and general packaging industries.

Key Features

Portable & Compact Design: Lightweight construction makes the machine easy to carry, position and operate in different working areas.

20–100 mm Sealing Range: Suitable for compatible bottles and containers with cap diameters ranging from approximately 20 mm to 100 mm.

Electromagnetic Induction Technology: Uses non-contact induction heating to activate the compatible sealing wad placed inside the bottle cap.

Secure Wad Sealing: Helps create a reliable seal that can assist in protecting packaged products against leakage, moisture and external contamination when the correct container, cap and wad combination is used.

500W Power: Designed to provide efficient induction heating for regular manual bottle-sealing applications.

Manual Operation: Straightforward operation makes it suitable for businesses requiring a flexible and easy-to-use sealing solution.

Wide Container Compatibility: Suitable for compatible containers made from ABS, PE, HDPE, LDPE, PET, PP, PS, PVC and glass when used with the appropriate induction sealing wad.

Applications

Food & Beverage Packaging: Suitable for compatible bottles and jars used for sauces, oils, beverages, spices, powders and other packaged food products.

Pharmaceutical Packaging: Can be used for compatible medicine, healthcare and supplement bottles requiring secure wad sealing.

Cosmetics & Personal Care: Suitable for compatible containers used for creams, lotions, oils and other cosmetic or personal-care products.

Chemical Packaging: Can be used for compatible bottles containing selected chemical and industrial products.

Laboratory Applications: Useful for sealing compatible sample and storage containers where secure closure is required.

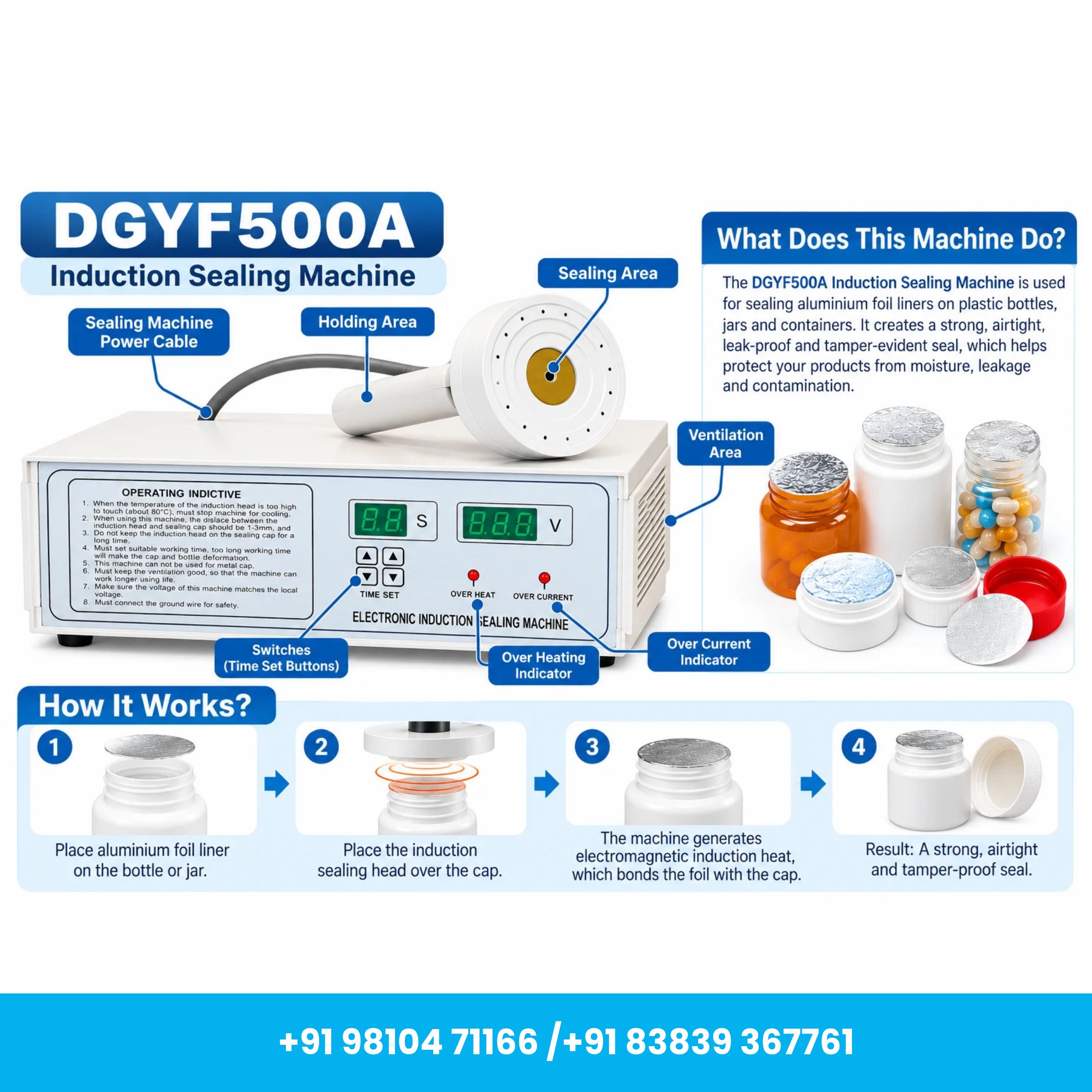

How to Use

Prepare the Machine: Place the DGYF-500A on a stable, dry and level working surface. Ensure that the sealing head and surrounding area are clean.

Prepare the Container: Fill the compatible bottle or container and ensure that the correct induction sealing wad is properly positioned inside the cap.

Tighten the Cap: Securely close the bottle with the cap so that the wad is positioned correctly against the container opening.

Adjust the Settings: Select the appropriate sealing time or operating parameters according to the container material, cap size and wad specification.

Position the Sealing Head: Place the induction sealing head correctly over the capped container. The container diameter should fall within the machine's 20–100 mm supported sealing range.

Start the Sealing Process: Activate the machine to begin induction heating. The electromagnetic field heats the compatible wad and creates the seal at the container opening.

Inspect the Seal: Allow the container to cool briefly, then inspect the wad to confirm proper adhesion and sealing quality before starting bulk production.

Important Notes

• This machine is intended for wad sealing only.
• Always use a compatible induction sealing wad, cap and container combination.
• Sealing performance can vary according to the container material, cap design, wad type, sealing time and operating settings.
• A test seal is recommended before starting bulk production.
• Actual production capacity depends on the operator, container size and sealing settings.

Maintenance

Regular Cleaning: Keep the machine body and induction sealing head clean and free from dust, product residue and other contaminants.

Inspect the Sealing Head: Regularly check the induction head and cable for visible wear or damage.

Electrical Safety: Periodically inspect the power cable, plug and electrical connections for damage or loose connections.

Keep the Machine Dry: Avoid exposing electrical components and the sealing head to excessive moisture.

Switch Off After Use: Always turn off and unplug the machine before cleaning, inspection or maintenance.

Brand: Universal Seal™

Model: DGYF-500A

Machine Type: Portable Induction Sealing Machine

Sealing Diameter: 20–100 mm

Power: 500 W

Product Origin: Imported
