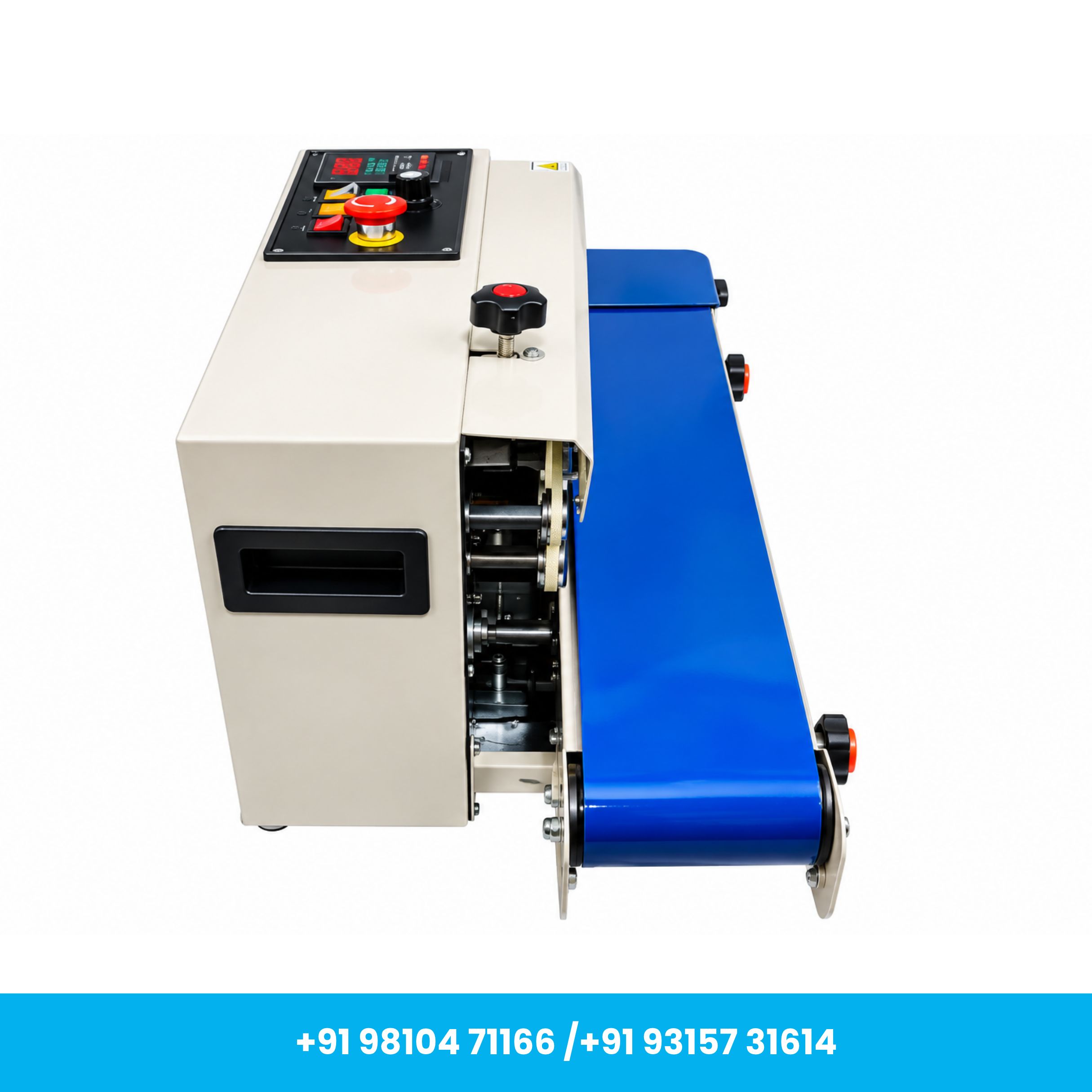

Universal Seal™ FR-900 Heavy Duty Horizontal Band Sealer

The Universal Seal™ FR-900 Heavy Duty Horizontal Continuous Band Sealer is designed for fast, continuous and reliable sealing of high-grade and laminated pouches in commercial and industrial packaging applications. Its durable mild steel body, digital control panel and integrated conveyor system make it suitable for regular packaging operations where consistent sealing and higher productivity are required.

The machine offers an adjustable sealing speed of 0–12 m/min, a sealing width of up to 12 mm, and a temperature range of 30–300°C, allowing operators to adjust the settings according to compatible pouch materials and sealing requirements. The conveyor supports loads of up to 5 kg, helping filled pouches move smoothly through the continuous sealing process.

The FR-900 is suitable for packaging applications across food, spices, grains, seeds, pharmaceuticals, chemicals, general merchandise, e-commerce and other manufacturing industries. Its continuous operation helps reduce manual sealing effort and improves overall packaging efficiency.

Important Note

• Conveyor belt colour may vary depending on the available production batch.
• Recommended for high-grade and laminated pouches compatible with heat sealing.
• Low-grade pouches are not recommended, as sealing performance may vary depending on pouch material, thickness and heat resistance.

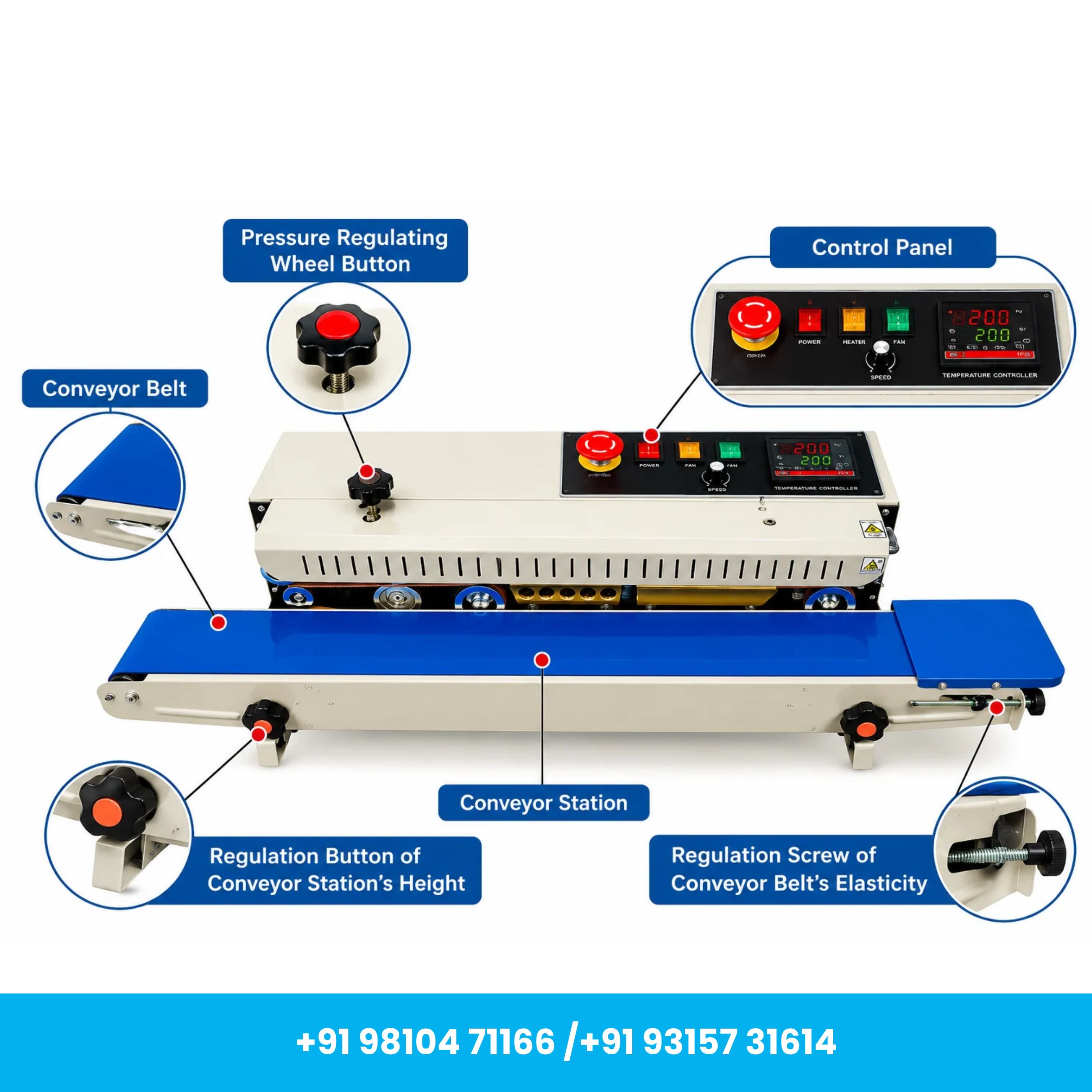

Control Panel

The FR-900 features a digital control panel designed for convenient operation and adjustment of sealing parameters.

• Digital Temperature Controller – Allows the operator to set and monitor the required sealing temperature.
• Speed Controller – Helps adjust conveyor and sealing speed according to packaging requirements.
• Emergency Stop Button – Provides quick machine shutdown when required.
• Power Switch – Controls the main electrical power supply.
• Heater Switch – Controls the machine's heating system.
• Cooling Switch – Controls the cooling function used during continuous sealing operation.

Key Features

Heavy-Duty Construction: Durable mild steel body designed for regular commercial and industrial packaging operations.

Continuous Sealing: Enables pouches to be sealed continuously, helping improve productivity compared with individual manual sealing.

Adjustable Sealing Speed: Variable sealing speed from 0–12 m/min provides flexibility for different production requirements.

Wide Temperature Range: Adjustable 30–300°C temperature range allows settings to be matched with compatible pouch materials.

Up to 12 mm Sealing Width: Produces a consistent sealing band of up to 12 mm for compatible packaging pouches.

Integrated Conveyor System: Supports packaged products weighing up to 5 kg, depending on proper load distribution and operating conditions.

Digital Controls: Convenient controls for temperature, speed, heating and cooling simplify day-to-day operation.

Easy to Operate: Straightforward controls and continuous feeding make the machine suitable for routine commercial packaging requirements.

Applications

Food & Spices Packaging: Suitable for compatible laminated pouches containing snacks, spices, grains, seeds, dry food products and other packaged foods.

Pharmaceutical Packaging: Can be used for compatible pharmaceutical and healthcare-product pouches requiring consistent heat sealing.

Chemical & Industrial Products: Suitable for compatible packaging materials used for selected chemicals, hardware and other industrial products.

E-commerce & General Packaging: Useful for businesses requiring efficient continuous sealing of compatible pouches during packing and fulfilment operations.

FMCG & Manufacturing: Suitable for regular pouch-sealing requirements across various manufacturing and consumer-product packaging lines.

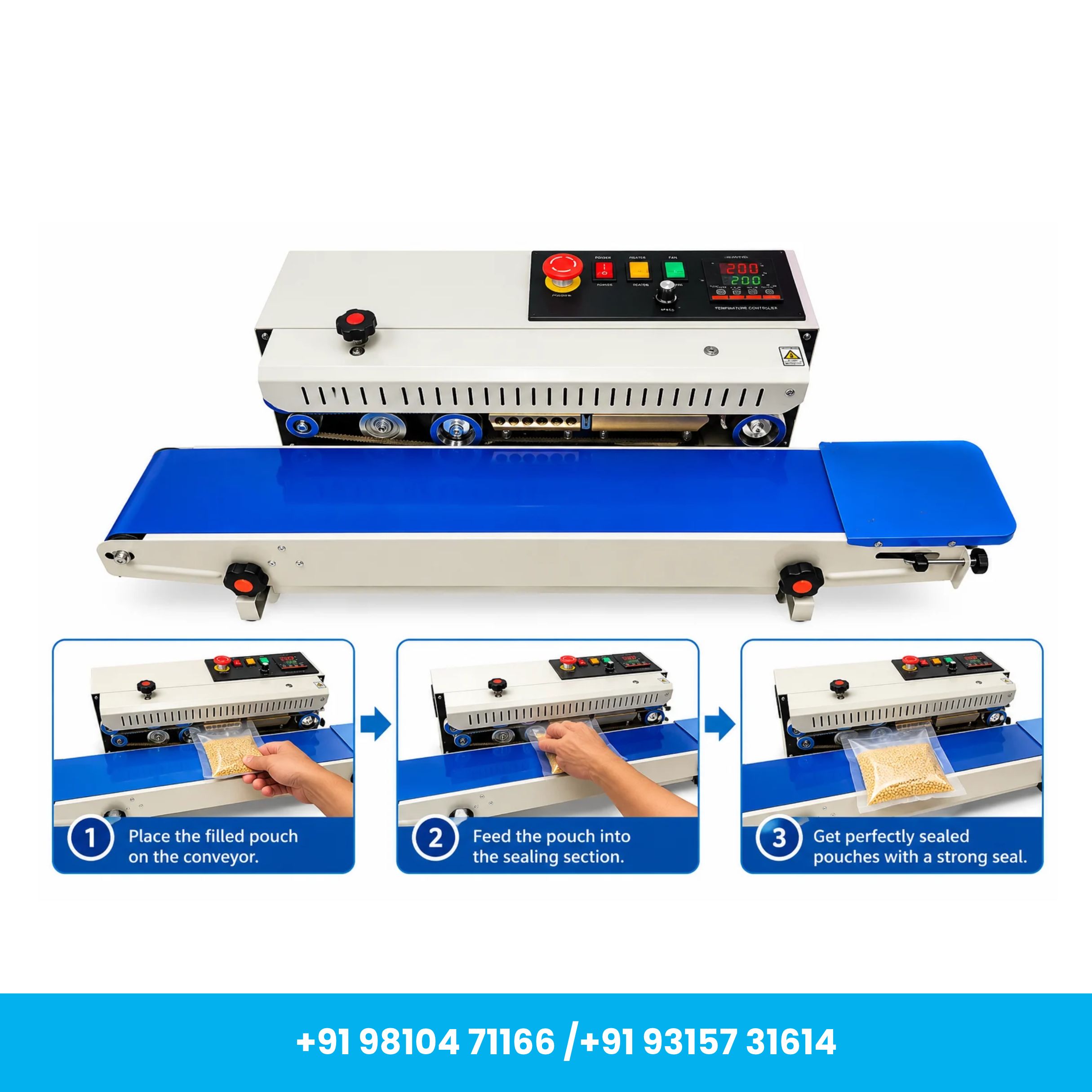

How to Use

Machine Setup: Place the FR-900 on a stable and level working surface. Check the electrical connection and ensure all machine components are correctly positioned before switching it on.

Set Temperature & Speed: Adjust the sealing temperature and conveyor speed according to the type and thickness of the compatible pouch material. Allow the machine to reach the required operating temperature.

Prepare the Pouch: Ensure the pouch sealing area is clean, properly aligned and free from product residue, oil, moisture or excessive wrinkles.

Feed the Pouch: Place the filled pouch onto the conveyor and guide its open edge correctly into the sealing section.

Continuous Sealing: The conveyor carries the pouch through the heating, sealing and cooling sections to complete the sealing process.

Inspect the Seal: Collect the sealed pouch at the conveyor outlet and check the seal for proper bonding, alignment and consistency. Adjust temperature or speed when required.

Maintenance

Keep the machine surface, conveyor and sealing area clean to prevent dust and packaging residue from accumulating.

Regularly inspect the sealing bands, conveyor belt, heating components and moving parts for wear or damage. Clean the sealing area carefully using suitable materials after the machine has been switched off and cooled.

Periodically inspect the power cable, switches, temperature controller and electrical connections. Before routine production, perform a short test run to confirm that the conveyor, heating and sealing functions are operating correctly.

Always switch off and disconnect the machine from the electrical supply before carrying out cleaning, inspection or maintenance.

Brand: Universal Seal™

Model: FR-900

Product Origin: Imported

Universal Seal™ | Since 2010

Universal Packaging Solutions, New Delhi
