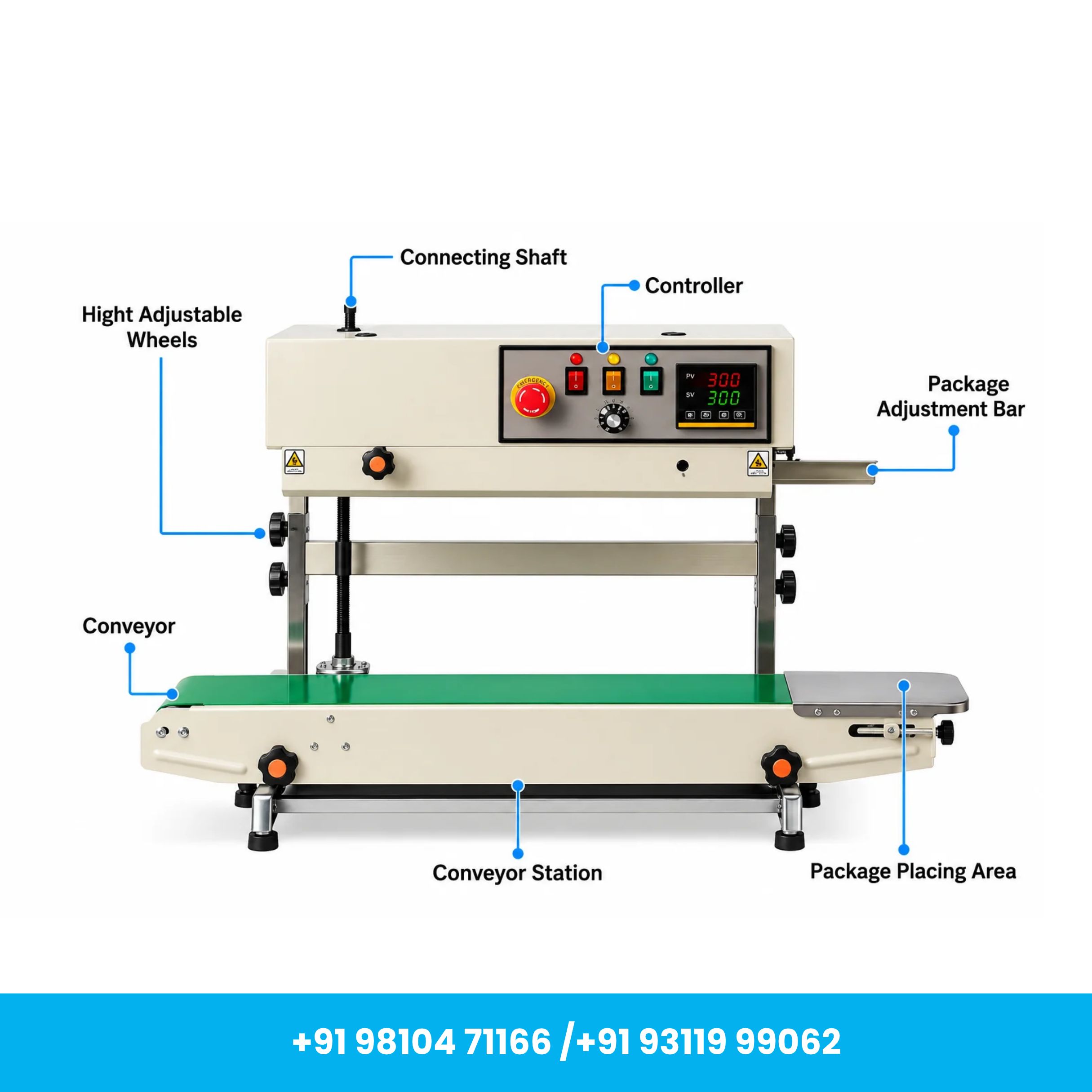

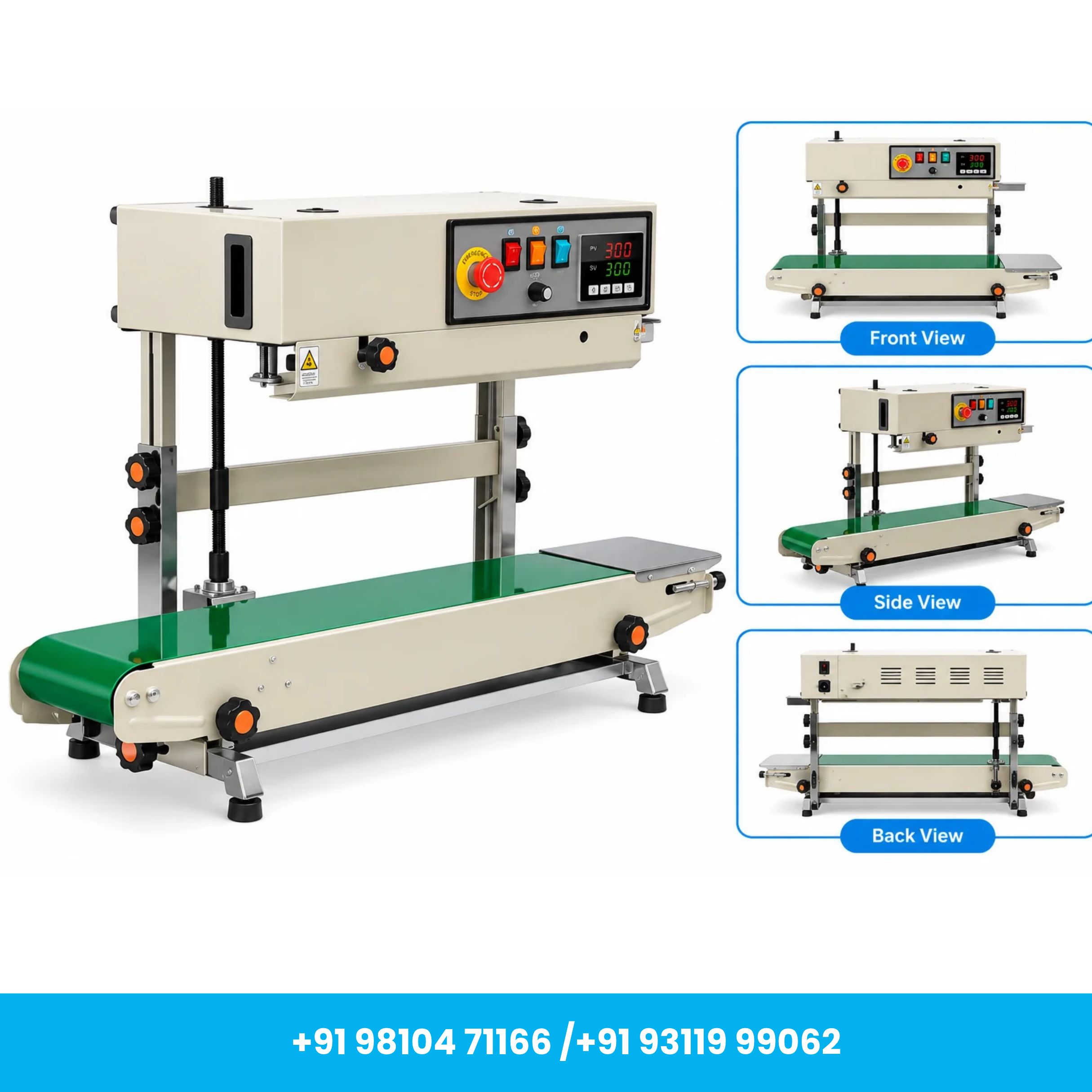

Universal Seal™ FR-900 Heavy Duty MS Vertical Band Sealer with Free Accessories

The Universal Seal™ FR-900 Heavy Duty MS Vertical Continuous Band Sealer is a reliable and efficient packaging machine designed for continuous sealing of high-grade and laminated pouches. Its vertical configuration makes it suitable for packaging applications where filled pouches need to remain upright during the sealing process.

Built with a durable mild steel body, the FR-900 is designed for regular commercial and industrial packaging operations. It features a digital controller, adjustable sealing speed of 0–12 m/min, sealing width of 6–12 mm, and an adjustable temperature range of 0–300°C for different compatible pouch materials.

The machine offers a height adjustment of up to approximately 14 inches, allowing greater flexibility for different pouch sizes. Its integrated conveyor can handle loads of approximately 4 kg, while the machine is designed for extended operation of approximately 8–10 hours, subject to appropriate operating conditions and recommended maintenance.

The FR-900 Vertical Band Sealer is suitable for packaging applications across food, spices, seeds, pharmaceuticals, cosmetics, personal care, chemicals, FMCG, e-commerce and general manufacturing industries.

Key Features

Heavy Duty MS Body: Durable mild steel construction provides strength and reliability for regular packaging operations.

Vertical Continuous Sealing: Designed to continuously seal compatible pouches while keeping them in an upright position during processing.

Digital Controller: Provides convenient control over machine settings for consistent sealing operations.

Adjustable Sealing Speed: Offers a variable sealing speed of 0–12 m/min to suit different packaging and production requirements.

6–12 mm Sealing Width: Provides a strong and consistent sealing band for compatible high-grade and laminated pouches.

Adjustable Temperature: Temperature can be adjusted from 0–300°C according to the pouch material and sealing requirements.

Adjustable Height: Supports height adjustment of up to approximately 14 inches, providing flexibility for different pouch dimensions.

Integrated Conveyor: Conveyor system supports a maximum load of approximately 4 kg, subject to proper weight distribution.

Extended Operation: Designed for approximately 8–10 hours of continuous operation under suitable working conditions.

Easy to Operate: Straightforward controls and continuous conveyor operation help improve packaging productivity and reduce manual effort.

Free Accessories

The machine is supplied with useful accessories for convenient operation and routine requirements:

• 5 Pieces Teflon Belts
• Conveyor Belt Extension
• Screwdriver
• Packaging Pouch Adjustment Bar

Applications

Food & Spice Packaging: Suitable for compatible laminated pouches used for snacks, grains, spices, seeds, dry fruits, frozen products and other packaged food items.

Pharmaceutical Packaging: Suitable for compatible pouches used for selected medicines, powders, healthcare products and pharmaceutical packaging applications.

Cosmetics & Personal Care: Can be used for compatible packaging of cosmetics, shampoos, lotions and other personal-care products.

Chemical & Industrial Packaging: Suitable for compatible pouches used for selected chemical and industrial products requiring continuous heat sealing.

FMCG, E-commerce & Retail: Useful for regular pouch-sealing requirements in manufacturing, retail packing, fulfilment and e-commerce operations.

How to Use

Machine Setup: Place the FR-900 Vertical Band Sealer on a stable and level working surface. Ensure that the conveyor, sealing assembly and other components are correctly positioned.

Power Connection: Connect the machine to a suitable 220V, 50Hz power supply and switch on the main power.

Adjust Machine Height: Set the vertical height according to the size and position of the pouch to ensure proper alignment with the sealing section.

Set Temperature & Speed: Adjust the temperature and conveyor speed according to the pouch material, thickness and required sealing quality. Allow sufficient time for the machine to reach the selected operating temperature.

Prepare the Pouches: Ensure that the sealing edge of each pouch is properly aligned, clean and free from moisture, oil, product residue or wrinkles.

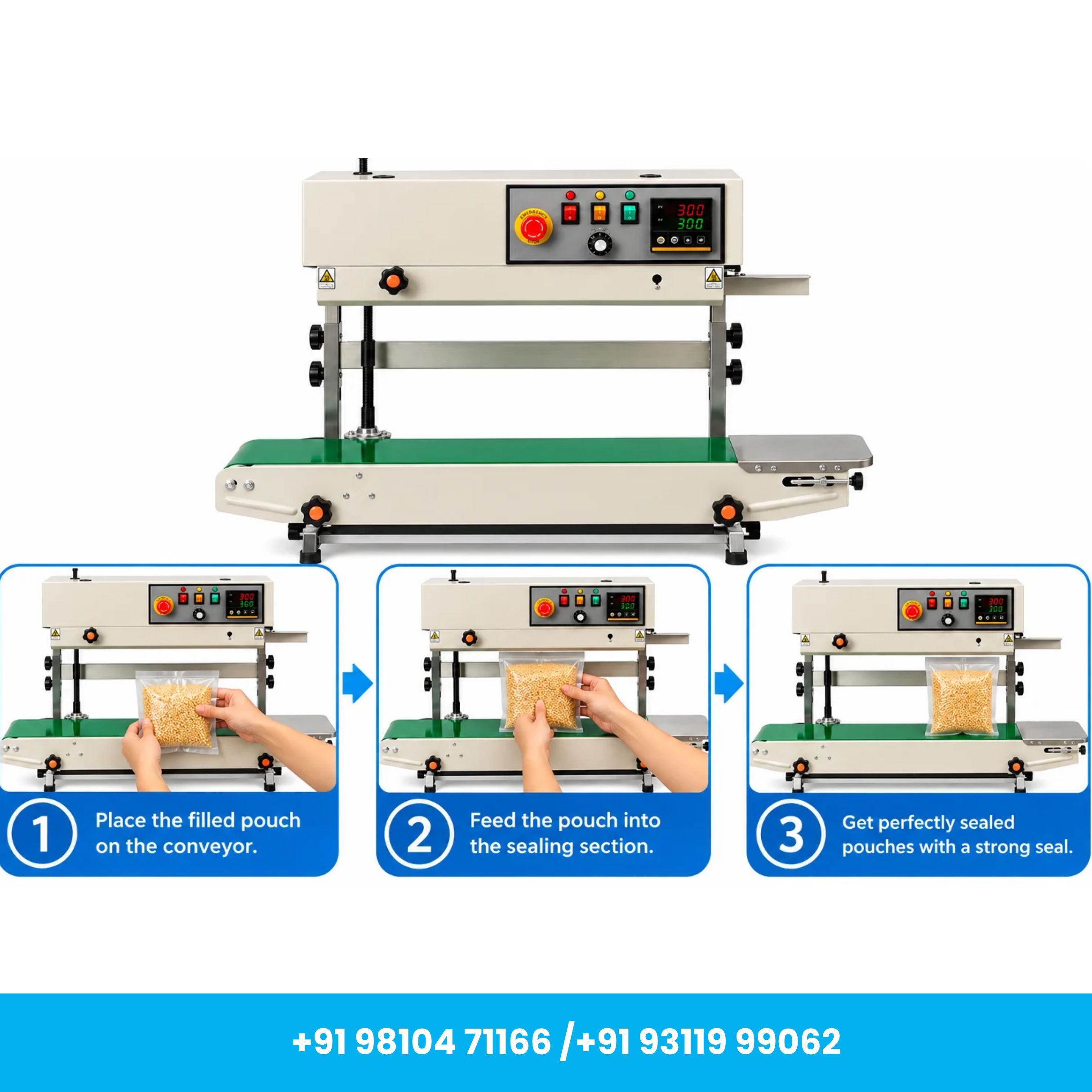

Start Sealing: Position the filled pouch upright on the conveyor and guide its open edge into the sealing section. The conveyor will move the pouch continuously through the heating, sealing and cooling sections.

Inspect the Seal: Collect the pouch from the output side and inspect the seal for proper adhesion, alignment and consistency. Adjust the temperature or conveyor speed if required.

Important Notes

• Recommended for high-grade and laminated pouches compatible with heat sealing.
• Conveyor belt colour may vary depending on the available production batch.
• Sealing performance depends on the pouch material, thickness, temperature and conveyor speed.
• Free accessories supplied with the machine may be subject to the package configuration at the time of purchase.
• Eligible online-payment discounts, if available, should be checked at the time of ordering.

Maintenance

Regular Cleaning: Keep the conveyor belt, sealing area and machine body clean. Remove pouch residue, dust and other contaminants after regular operation.

Inspect Sealing Components: Periodically check the Teflon belts, sealing bands, rollers and heating components for wear or damage and replace them when necessary.

Check Conveyor System: Ensure the conveyor moves smoothly and remains properly aligned during operation.

Electrical Inspection: Regularly inspect the power cable, switches and electrical connections for visible damage or loose connections.

Power Off After Use: Always switch off and disconnect the machine from the electrical supply before cleaning, inspection or maintenance.

Brand: Universal Seal™

Model: FR-900

Machine Type: Heavy Duty MS Vertical Continuous Band Sealer

Product Origin: Imported

Universal Seal™ | Since 2010

Universal Packaging Solutions, New Delhi
