FR1100V Heavy Duty 10/15Kg Vertical Continuous Band Sealer Machine – 800W

The Universal Seal™ Heavy Duty 10/15Kg Vertical Continuous Band Sealer Machine – 800W is designed for continuous sealing of large and heavy filled pouches in commercial and industrial packaging operations. With a maximum conveyor loading capacity of up to 15 kg, the machine is suitable for businesses handling bulk packaging of rice, grains, pulses, flour, seeds, animal feed, agricultural products and other compatible products.

The vertical sealing configuration keeps filled pouches upright while they move through the sealing section. Heat and pressure are applied continuously to create a strong and consistent seal on compatible high-grade and laminated pouches.

Powered by an 800W system, the machine offers an adjustable sealing speed of 0–12 m/min, sealing width of 6–12 mm and temperature range of 0–300°C. Its 80–600 mm height adjustment range provides flexibility for different pouch sizes, while the heavy-duty jack stand helps support larger packaging requirements.

The machine also features steel wheel printing capability for compatible coding requirements, making it a practical solution for businesses requiring sealing and basic printing during packaging operations.

Key Features & Benefits

Heavy Duty 10/15Kg Capacity

Designed for heavy pouch packaging applications, with a maximum conveyor loading capacity of up to 15 kg. Suitable for larger retail, wholesale and industrial packaging formats.

Vertical Continuous Sealing

The vertical configuration helps filled pouches remain upright while passing through the sealing section, making it suitable for grains, powders, seeds and other bulk products.

800W Power

The 800W system is designed to support continuous sealing operations for compatible heavy-duty packaging applications.

Adjustable Sealing Speed

Variable sealing speed from 0–12 m/min allows operators to adjust the machine according to pouch material, product weight and production requirements.

6–12 mm Sealing Width

Provides an adjustable sealing width of 6–12 mm for clean and consistent sealing of compatible laminated and high-grade pouches.

Adjustable Temperature

The 0–300°C temperature range provides flexibility for different compatible heat-sealable pouch materials and thicknesses.

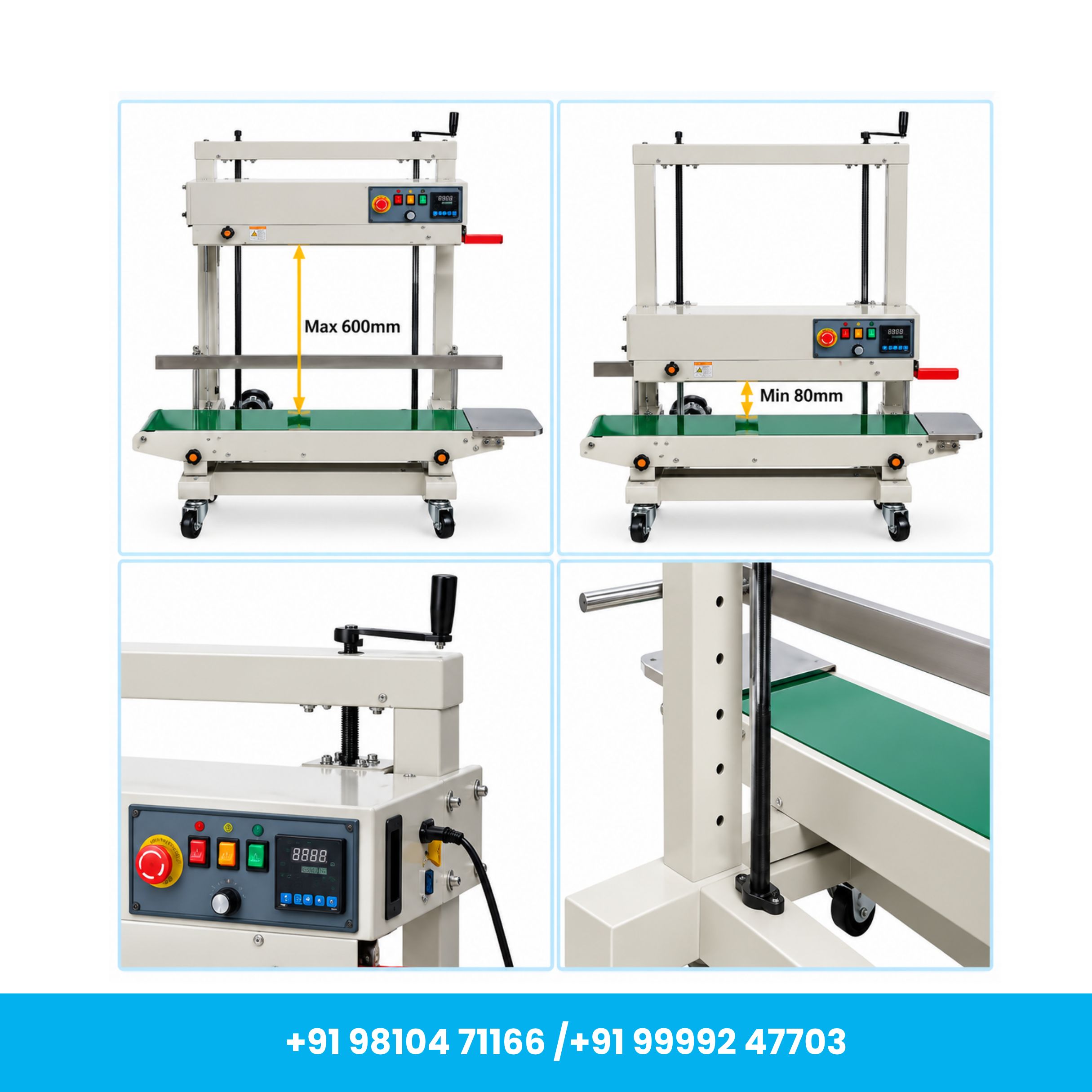

80–600 mm Height Adjustment

The sealing height can be adjusted from approximately 80–600 mm, allowing the machine to accommodate different pouch sizes.

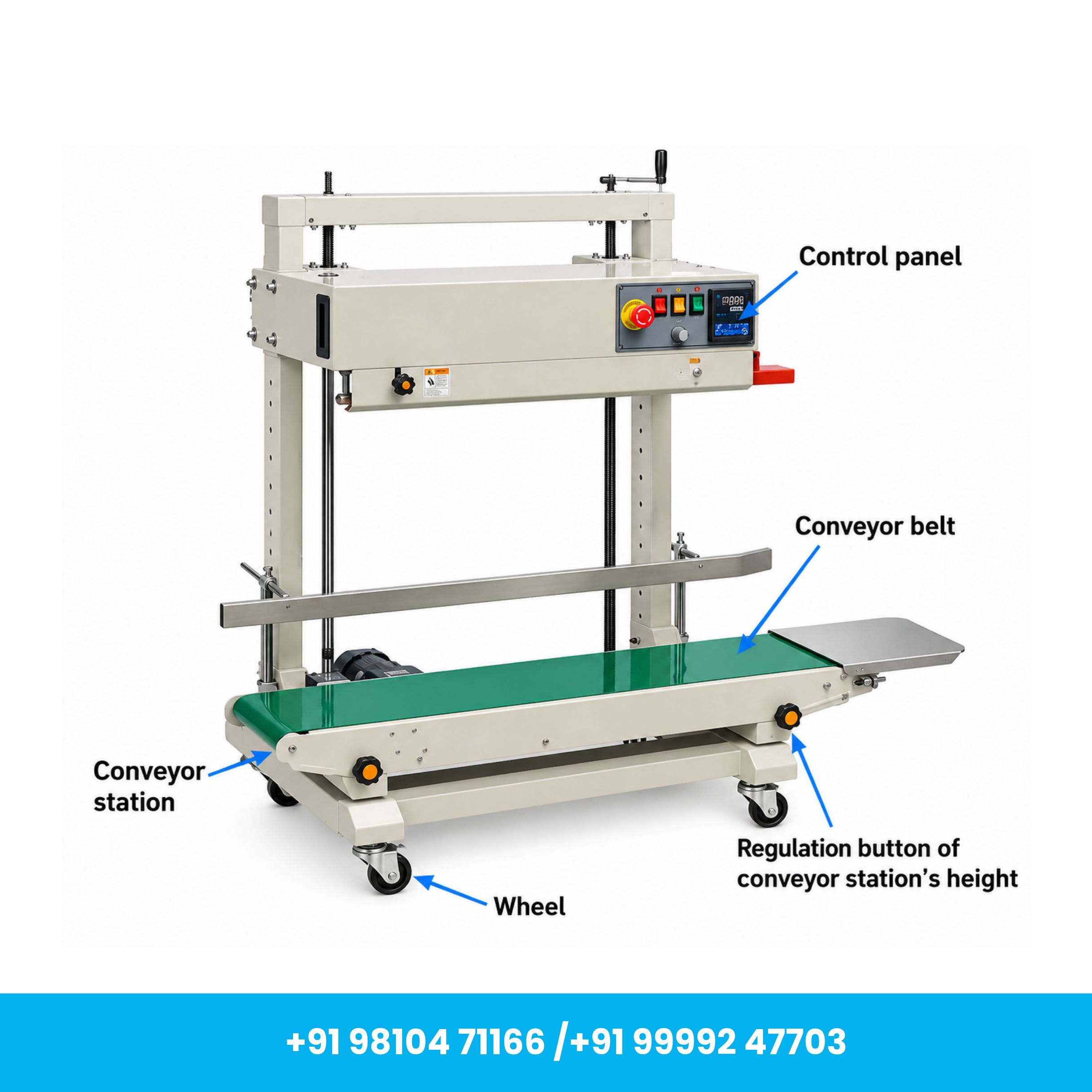

Heavy Duty Jack Stand

The jack stand configuration provides stable support and allows convenient height adjustment for heavier packaging operations.

Digital Control Panel

The digital panel provides convenient access to temperature and operating controls for regular production use.

Steel Wheel Printing

Equipped with steel wheel printing capability for compatible coding requirements during the packaging process.

Applications

Food & Bulk Packaging: Suitable for rice, wheat, grains, pulses, dal, flour, spices, dry foods and other compatible bulk food products.

Agricultural Products: Suitable for seeds, grains, fertilizers, animal feed and other compatible agricultural packaging applications.

Pharmaceutical & Chemical Packaging: Can be used for selected pharmaceutical, chemical and industrial products packed in compatible heat-sealable pouches.

FMCG Packaging: Suitable for larger FMCG pouch formats requiring continuous sealing.

E-commerce & General Packaging: Can be used for compatible products requiring secure heat-sealed pouch packaging.

Suitable Packaging Materials

The machine is primarily designed for:

• High-grade pouches
• Laminated pouches
• Compatible multilayer films
• Other compatible heat-sealable packaging materials

Pouch compatibility should be tested before bulk production because sealing performance depends on material composition, thickness and operating settings.

How to Use

Machine Setup: Position the machine on a stable and level surface. Ensure the jack stand, conveyor and sealing section are properly adjusted.

Power Connection: Connect the machine to a suitable 220V, 50Hz electrical supply.

Adjust Sealing Height: Set the sealing head height according to the pouch dimensions using the machine's height-adjustment mechanism.

Set Temperature: Select an appropriate temperature according to the pouch material and thickness.

Adjust Sealing Speed: Set the conveyor/sealing speed according to the pouch weight, material and required sealing quality.

Prepare the Pouch: Fill the pouch and ensure that its sealing edge is clean, dry and free from product residue or wrinkles.

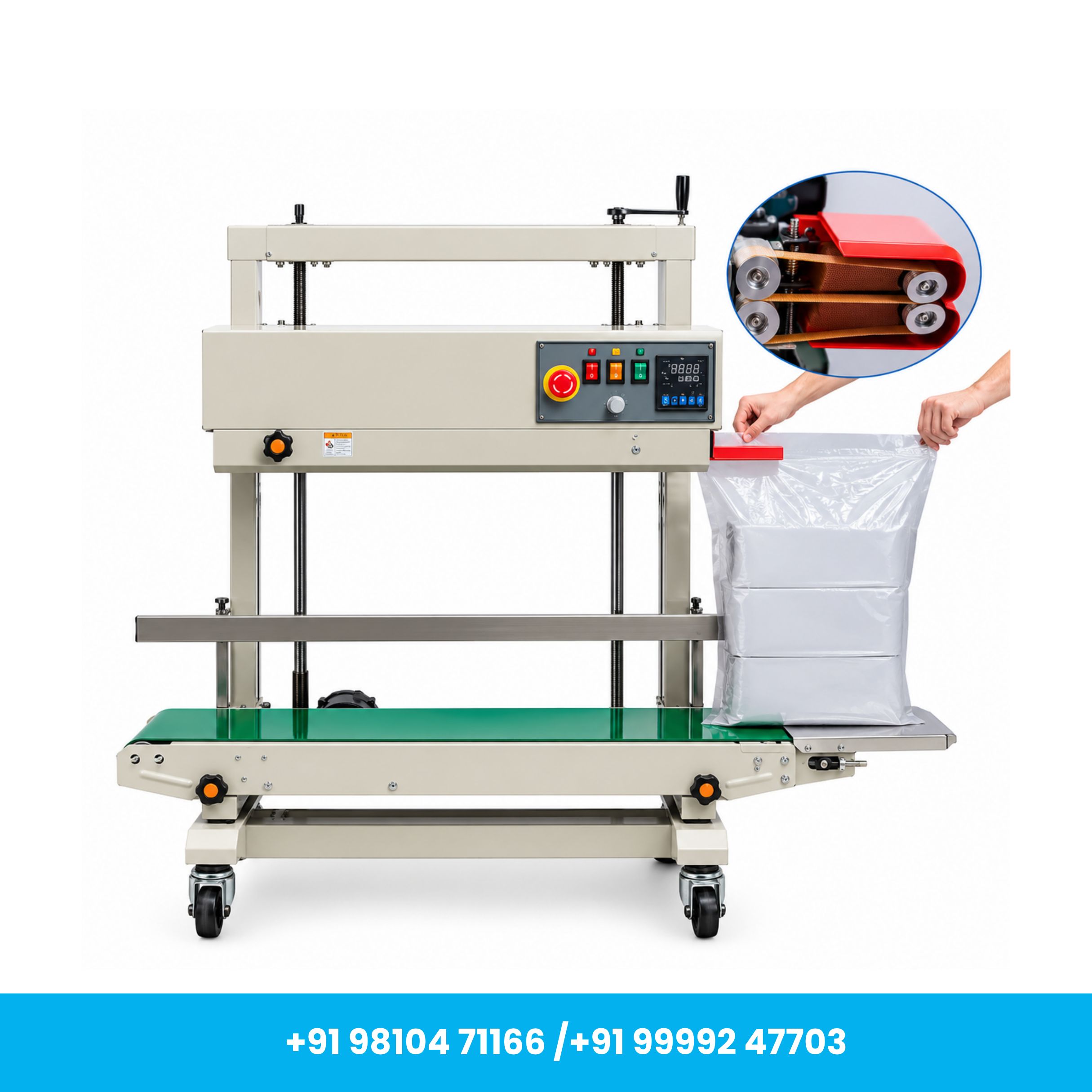

Start Sealing: Place the filled pouch upright on the conveyor and guide its open edge into the sealing section. The conveyor continuously moves the pouch through the heating and pressure system.

Printing: Configure the steel wheel printing system when coding is required and compatible with the intended application.

Inspect the Finished Pouch: Check the seal for proper alignment, strength and consistency. Adjust temperature, speed or pressure if required before bulk production.

Maintenance

Regular Cleaning: Clean the conveyor, sealing area and machine surfaces regularly to remove packaging or product residue.

Inspect Sealing Components: Check sealing belts, Teflon belts, rollers and heating components periodically for wear or damage.

Check Conveyor: Inspect conveyor alignment, tension and movement, particularly when handling heavier pouches.

Check Temperature System: Ensure the heating components and temperature controller are operating correctly.

Inspect Printing System: Keep the steel wheel printing mechanism clean and properly adjusted when in use.

Check Jack Stand & Adjustments: Periodically inspect the height-adjustment mechanism, stand and fasteners for secure operation.

Always switch off and disconnect the machine from the electrical supply before cleaning, adjustment or maintenance.

Important Notes

• Maximum conveyor loading capacity is up to 15 kg.
• Recommended for compatible high-grade and laminated heat-sealable pouches.
• Conveyor belt colour may vary depending on the available production batch.
• Actual sealing performance depends on pouch material, thickness, product weight, temperature, speed and machine settings.
• Always conduct sample sealing trials before starting bulk production.
• Steel wheel printing performance and character configuration depend on the installed printing setup.

Brand: Universal Seal™

Machine Type: Heavy Duty 10/15Kg Vertical Continuous Band Sealer

Power: 800W

Maximum Conveyor Capacity: Up to 15 kg

Sealing Speed: 0–12 m/min

Sealing Width: 6–12 mm

Height Adjustment: 80–600 mm

Printing: Steel Wheel Printing

Universal Seal™ | Since 2010

Universal Packaging Solutions, New Delhi
