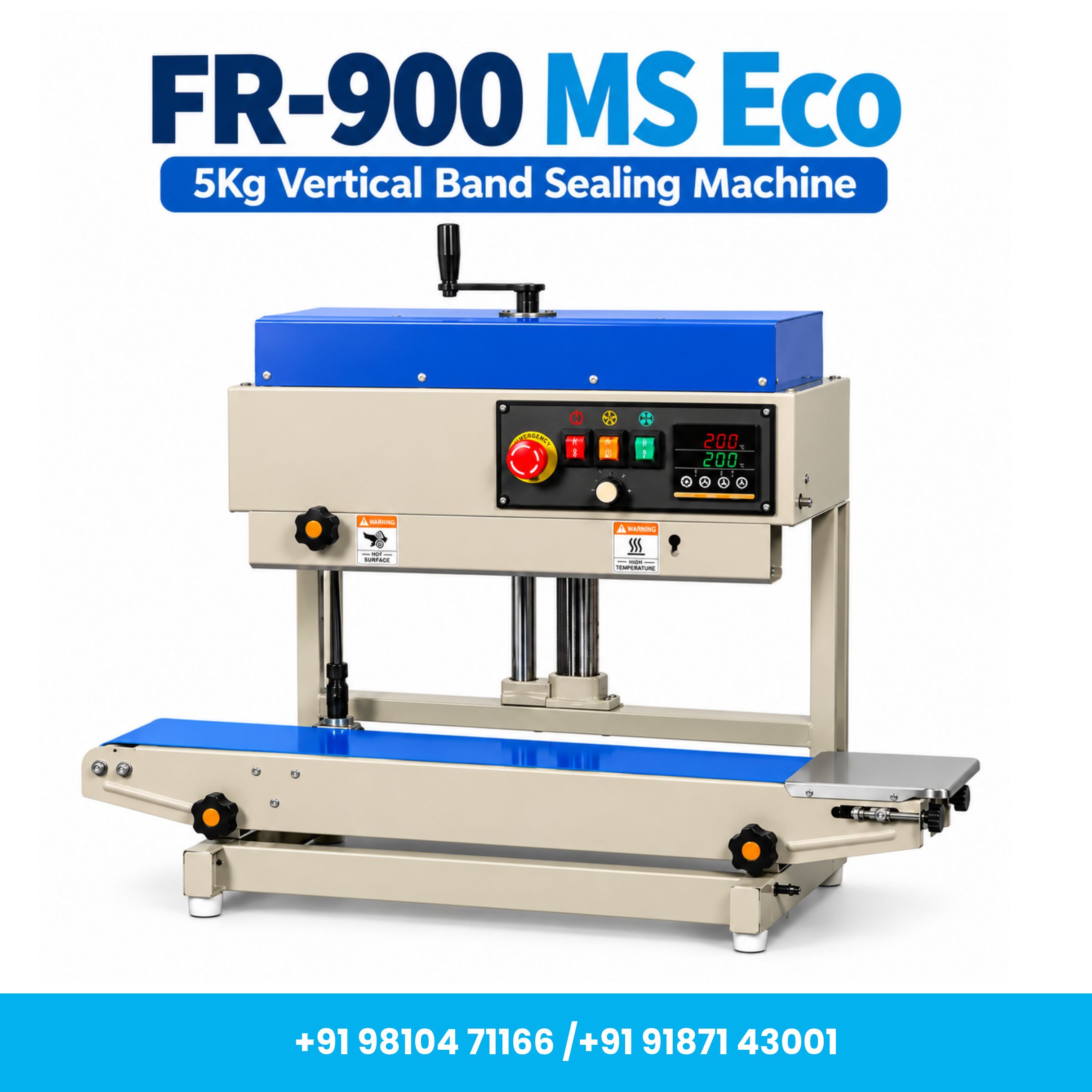

Universal Seal™ FR-900 MS Eco 5Kg Vertical Continuous Band Sealing Machine

Universal Seal™ FR-900 MS Eco 5Kg Vertical Continuous Band Sealing Machine

The Universal Seal™ FR-900 MS Eco 5Kg Vertical Continuous Band Sealing Machine is a commercial packaging solution designed for continuous sealing of medium and heavier filled pouches. With support for pouch loads of approximately 1–5 kg, the machine is particularly suitable for businesses packaging rice, grains, pulses, dal, spices, dry foods, powders and other compatible FMCG products.

Its vertical sealing configuration allows filled pouches to remain upright while moving through the sealing section. This makes the machine especially useful for free-flowing and powdered products where horizontal pouch handling may not be practical.

1–5 Kg Pouch Capacity

The machine is designed to handle filled pouches weighing approximately 1–5 kg, with a maximum pouch load of up to 5 kg. This makes it suitable for retail, wholesale and commercial packaging applications involving larger pouch sizes.

Vertical Sealing Design

The vertical configuration helps maintain the upright position of filled pouches while they travel through the sealing section. It is particularly useful for packaging rice, wheat, grains, pulses, lentils, beans, spices, powders and similar products.

Continuous Band Sealing

The FR-900 uses a continuous heat-sealing mechanism that allows successive pouches to be sealed without stopping the machine after every pouch. This helps improve packaging productivity and provides consistent sealing during regular production.

Adjustable Sealing Speed

The sealing speed can be adjusted from approximately 0–12 m/min. Operators can select a suitable speed according to the pouch material, thickness, product weight and required sealing quality.

Adjustable Temperature Control

With an adjustable temperature range of approximately 0–300°C, the machine can be configured for different compatible heat-sealable pouch materials. Correct temperature settings help achieve clean and consistent seals while reducing the risk of pouch damage.

Approx. 12 mm Sealing Width

The machine provides an approximately 12 mm sealing width, creating a broad and professional sealing band on compatible packaging materials.

Powder-Coated Mild Steel Construction

The FR-900 MS Eco features a sturdy mild steel body with a powder-coated finish. Its construction provides a practical and economical solution for businesses requiring regular commercial pouch-sealing operations.

Key Features & Benefits

• Handles approximately 1–5 kg filled pouches
• Maximum pouch load up to 5 kg
• Vertical continuous sealing configuration
• Powder-coated mild steel body
• Continuous heat-sealing mechanism
• Approx. 12 mm sealing width
• Adjustable sealing speed from 0–12 m/min
• Adjustable temperature from 0–300°C
• Suitable for LDPE and compatible laminated films
• Designed for food, FMCG and general packaging
• Suitable for regular commercial packaging operations
• Simple operation and routine maintenance

Suitable Applications

The machine is suitable for packaging compatible products such as:

Grains & Pulses: Rice, wheat, dal, lentils, beans and other grains.

Spices & Dry Foods: Spices, masala, dry fruits, tea, coffee and other dry products.

Powder Products: Selected powders packed in compatible heat-sealable pouches.

FMCG Products: Suitable for various retail and wholesale pouch-packaging requirements.

General Packaging: Can be used for compatible products requiring vertical continuous heat sealing.

Suitable Packaging Materials

The FR-900 MS Eco can be used with compatible heat-sealable materials such as:

• LDPE pouches
• Laminated films
• Other compatible heat-sealable packaging materials

Always perform a sample sealing test before bulk production because sealing performance depends on pouch construction, thickness, temperature, speed and operating conditions.

How to Use

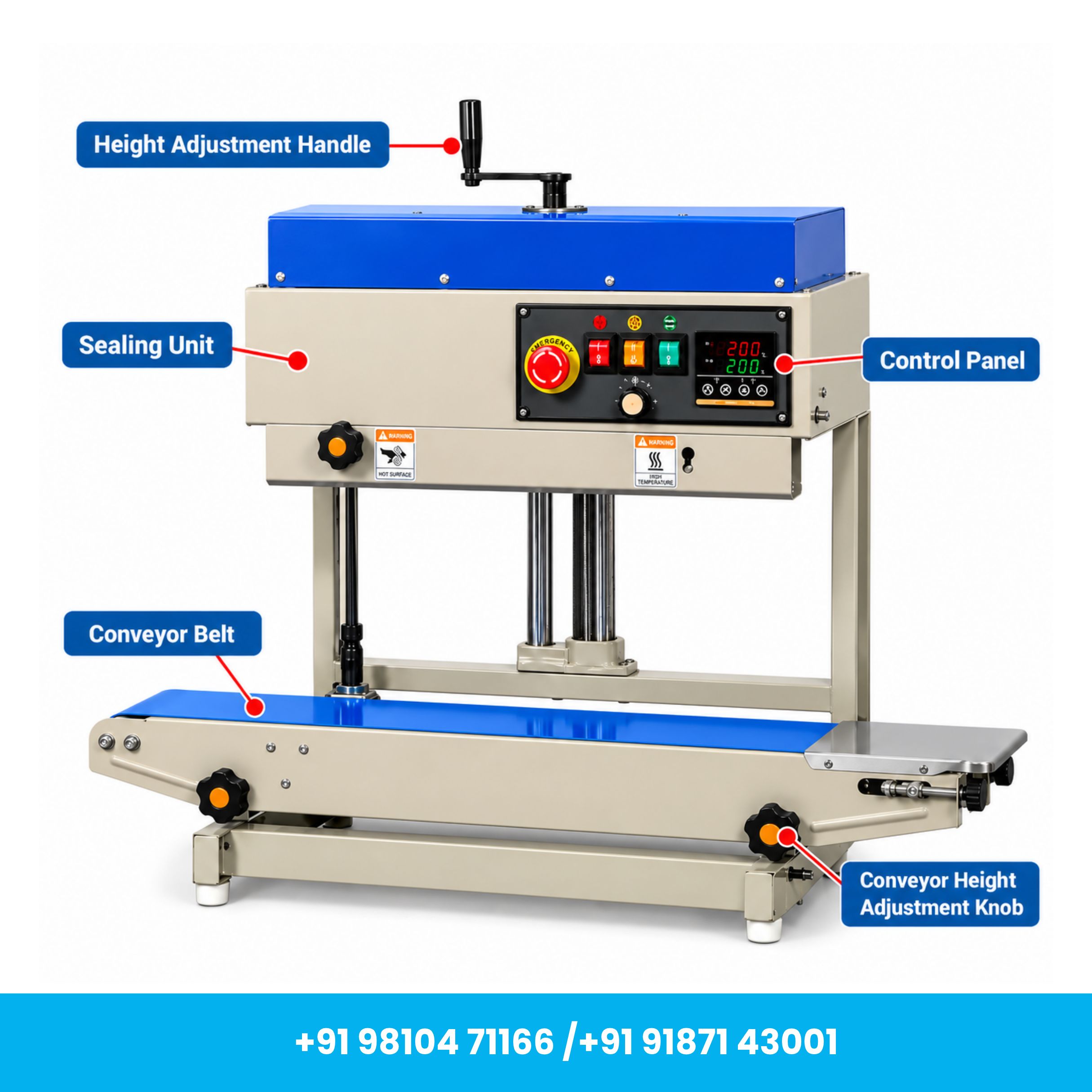

1. Machine Setup: Place the machine on a stable and level working surface and ensure that the conveyor and sealing section are correctly adjusted.

2. Power Connection: Connect the machine to a suitable 220V, 50Hz electrical supply.

3. Set Temperature: Select the appropriate sealing temperature according to the pouch material and thickness.

4. Adjust Speed: Set the conveyor/sealing speed according to the product weight and required sealing quality.

5. Prepare the Pouch: Fill the pouch and ensure that the sealing edge is clean, dry and properly aligned.

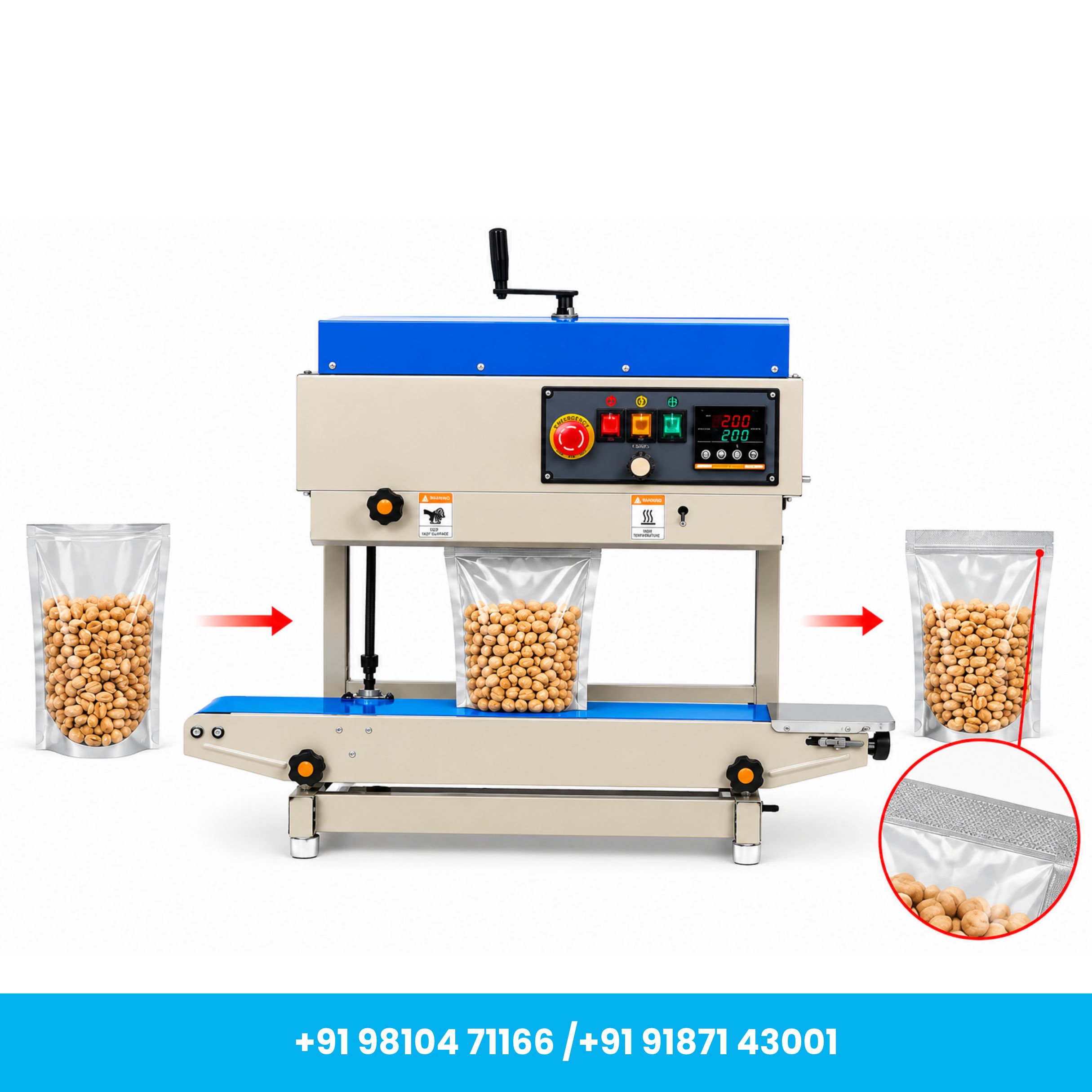

6. Position the Pouch: Place the filled pouch upright on the conveyor and guide its open edge into the sealing section.

7. Continuous Sealing: The conveyor carries the pouch through the heat-sealing mechanism to produce a continuous seal.

8. Inspect the Seal: Check the finished pouch for proper alignment, seal strength and consistency. Adjust temperature or speed if necessary before bulk production.

Maintenance

Keep the conveyor and sealing section clean and remove pouch or product residue regularly. Inspect the sealing belts, Teflon belts, rollers and heating components periodically for wear. Check adjustment knobs, conveyor alignment and electrical connections at regular intervals.

Always switch off and disconnect the machine from the electrical supply before cleaning, adjustment or maintenance.

Important Notes

• Maximum pouch load is approximately 5 kg.
• Actual capacity depends on pouch dimensions, product distribution and operating conditions.
• Use only compatible heat-sealable pouch materials.
• Always perform sample sealing trials before bulk production.
• Conveyor colour, control panel and minor machine appearance may vary depending on the available production batch.
